Huawei FusionModule5000 Maintenance Guide

FusionModule5000 Smart Modular Data Center
Maintenance Guide (ECC800)
5 Parts Replacement
Issue 01 (2019-03-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
107

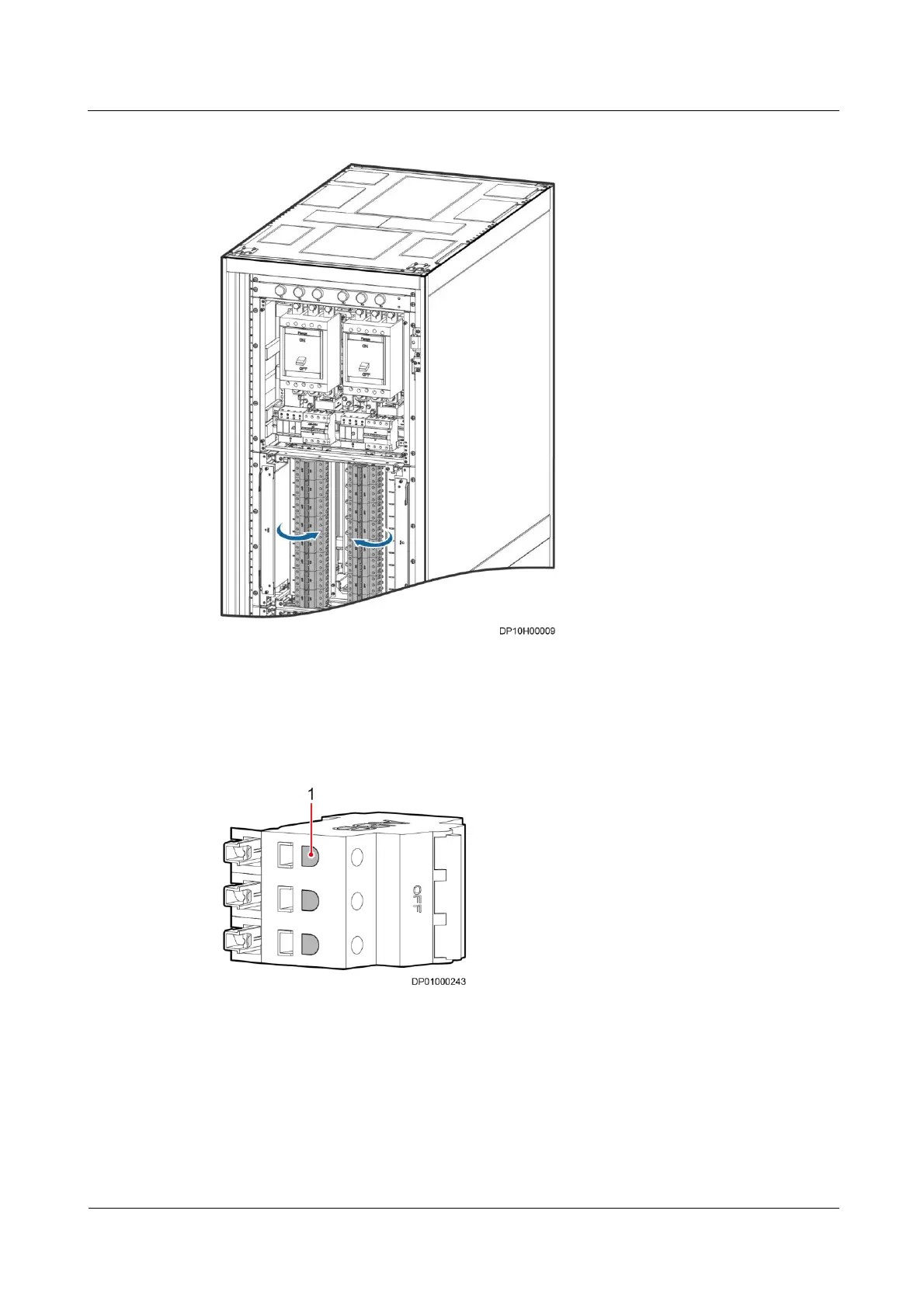

Figure 5-9 Removing the MCB
Step 5 Install a new MCB.
Step 6 Connect cables. The recommended cable hole for the MCB is shown by (1) in Figure 5-10.
Figure 5-10 Mounting holes
(1) mounting holes
Step 7 Reinstall the panel on the PDC.
----End
