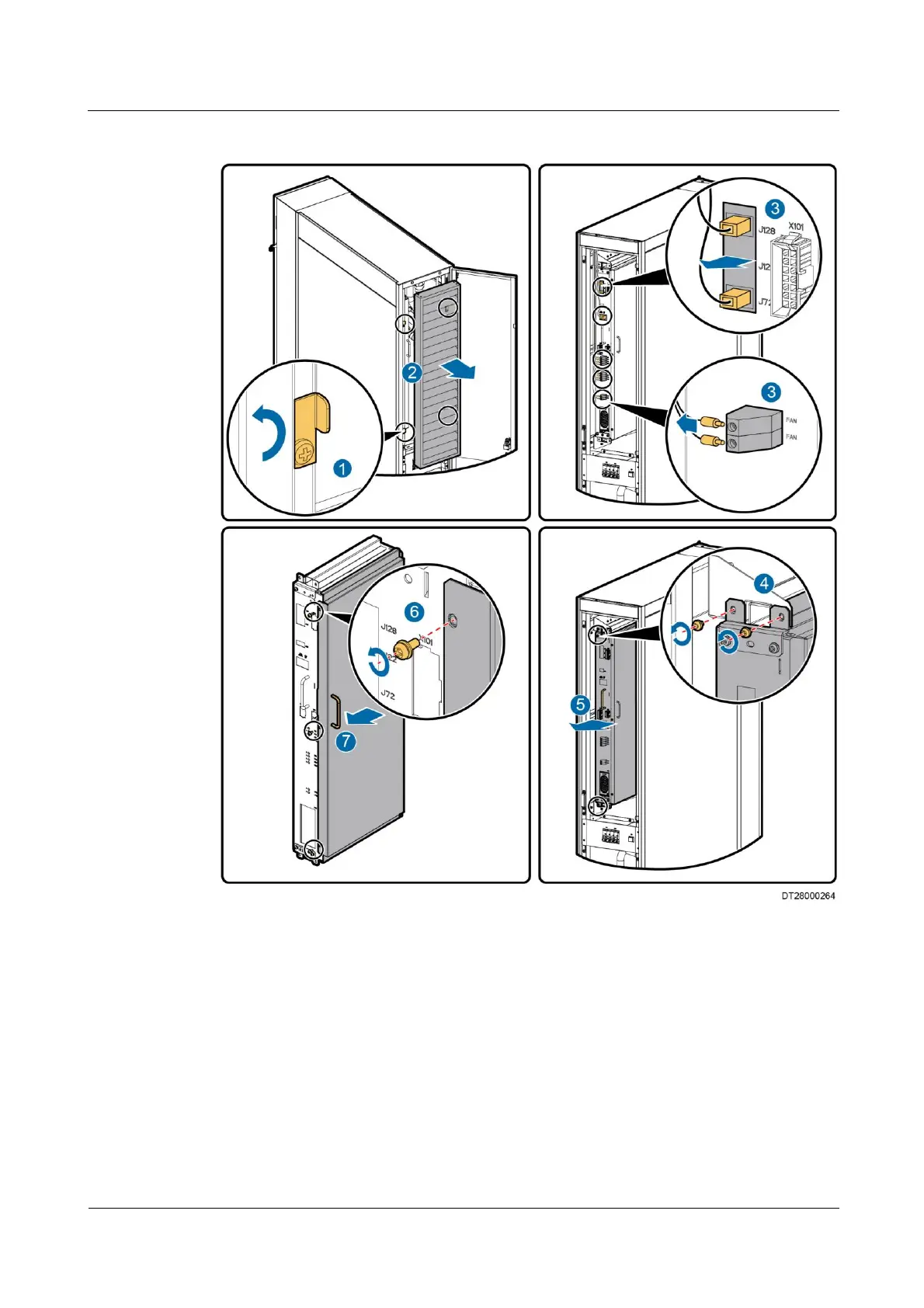

Figure 5-32 Removing the electric control box
Step 3 Remove all cables from the side panel of the electric control box, as shown by (3) in Figure
5-32.
Step 4 Remove the four screws that secure the electric control box to the support, as shown by (4) in
Figure 5-29.
Step 5 Pull the handle on the side panel of the electric control box to remove the box, as shown by (5)
in Figure 5-29. Place it horizontal on the floor. Exercise caution because the electric control
box is heavy.
Step 6 Remove the three screws from the cover of the electric control box, as shown by (6) in Figure
5-29.
