Huawei FusionModule5000 Maintenance Guide

FusionModule5000 Smart Modular Data Center
Maintenance Guide (ECC800)
5 Parts Replacement
Issue 01 (2019-03-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
182

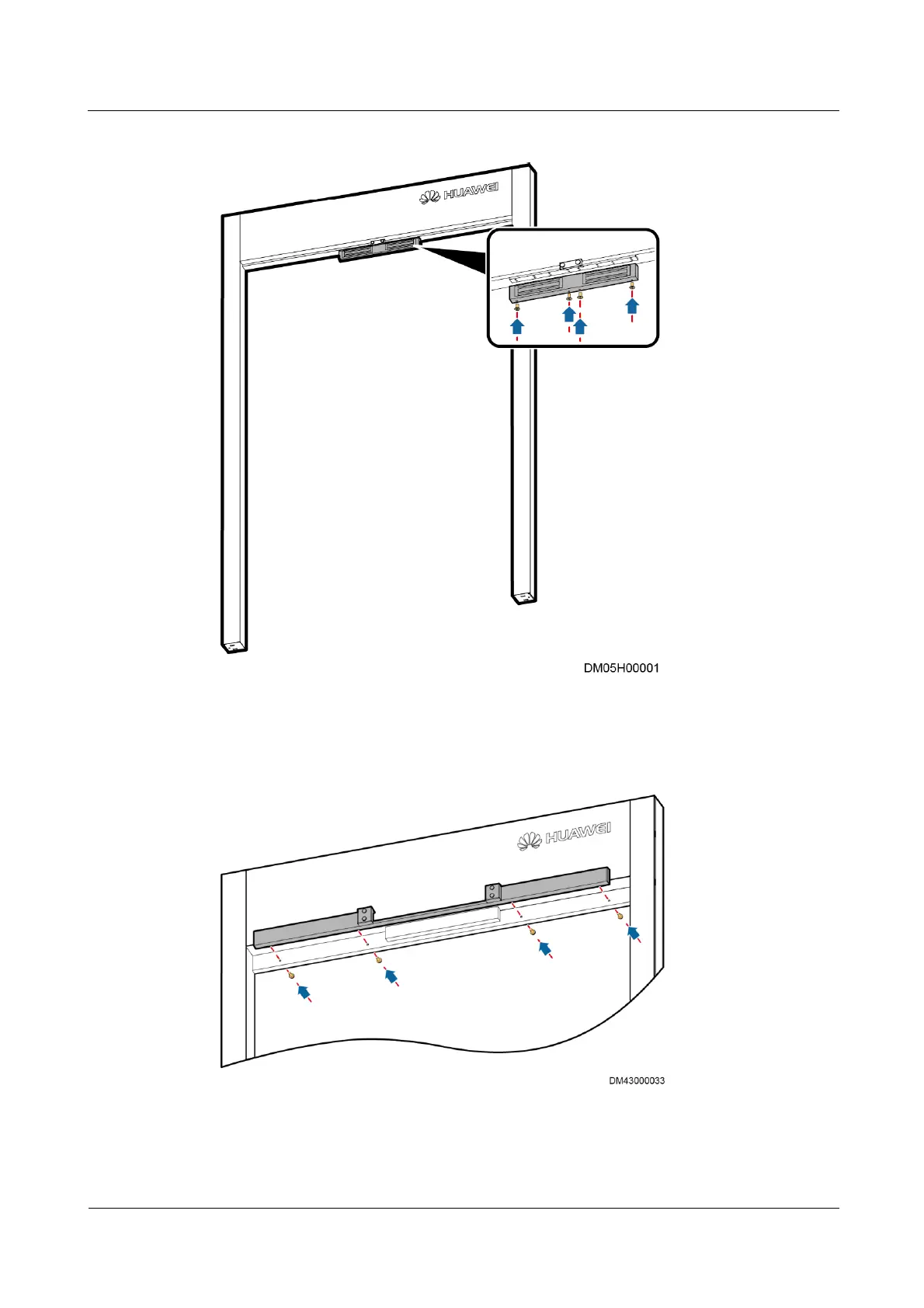

Figure 5-80 Installing a magnetic lock
Step 5 Install the mounting plate of the magnetic lock cover, as shown in Figure 5-81.
Figure 5-81 Installing the mounting plate of a magnetic lock cover
Step 6 Replace the magnet.
