1. Remove the magnet from the door, as shown in Figure 5-82.

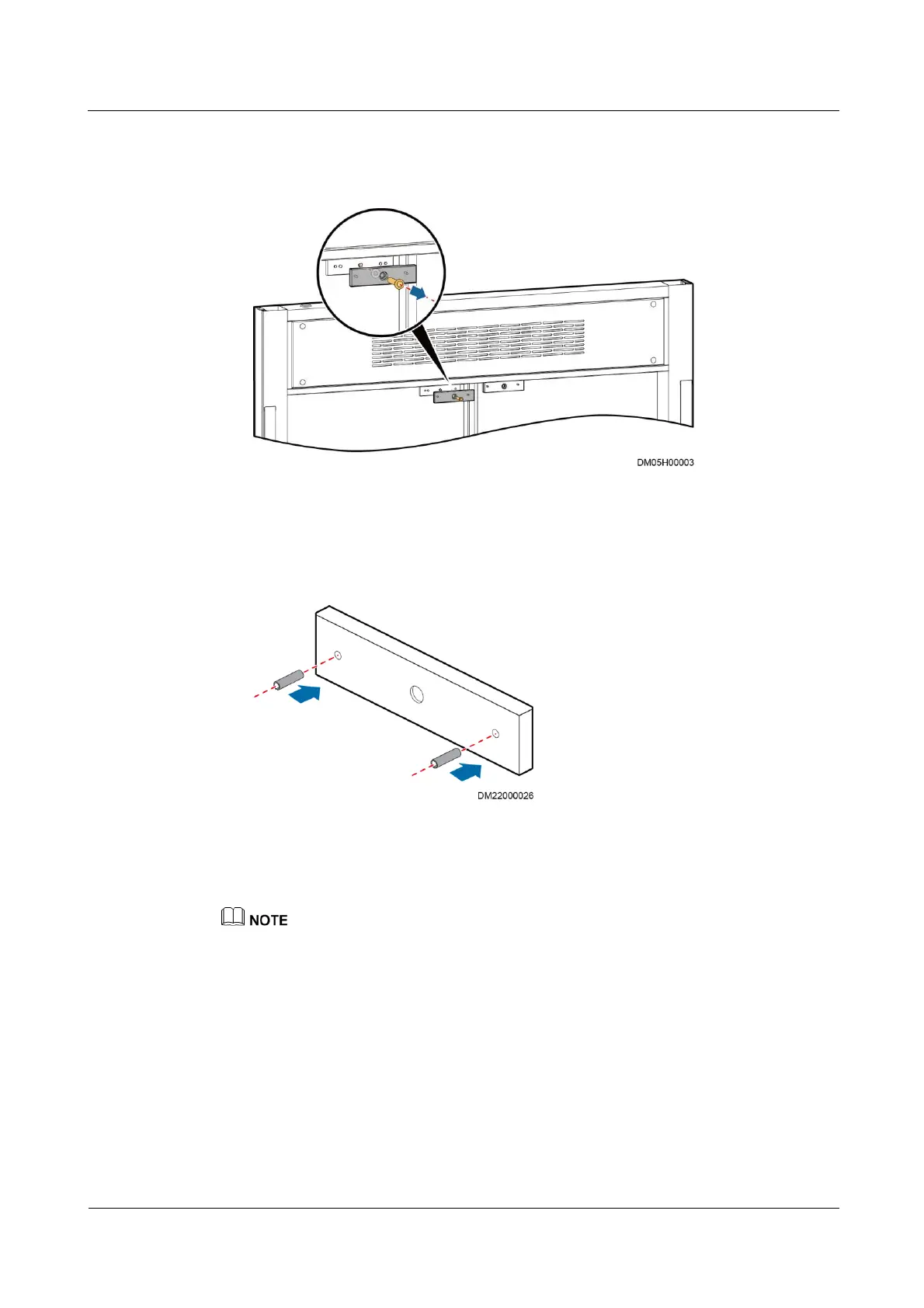

Figure 5-82 Removing a magnet
2. Take out the magnet from the new magnetic lock fitting bag, and insert the positioning
pins of the magnet into the magnet using a rubber mallet, as shown in Figure 5-83.
Figure 5-83 Installing positioning pins of a magnet
3. Insert the assembled magnet into the magnetic lock base on the revolving door, and
secure the magnet to the door using the screws on the door and the white rubber washer
delivered with the magnet, as shown in Figure 5-84.
When securing the magnet to the door panel, do not over-tighten the screws so that the white rubber
washer is elastic. The washer will adjust the magnet to a correct position because of its elasticity.
