FusionModule800 Smart Small Data Center
Maintenance Guide
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

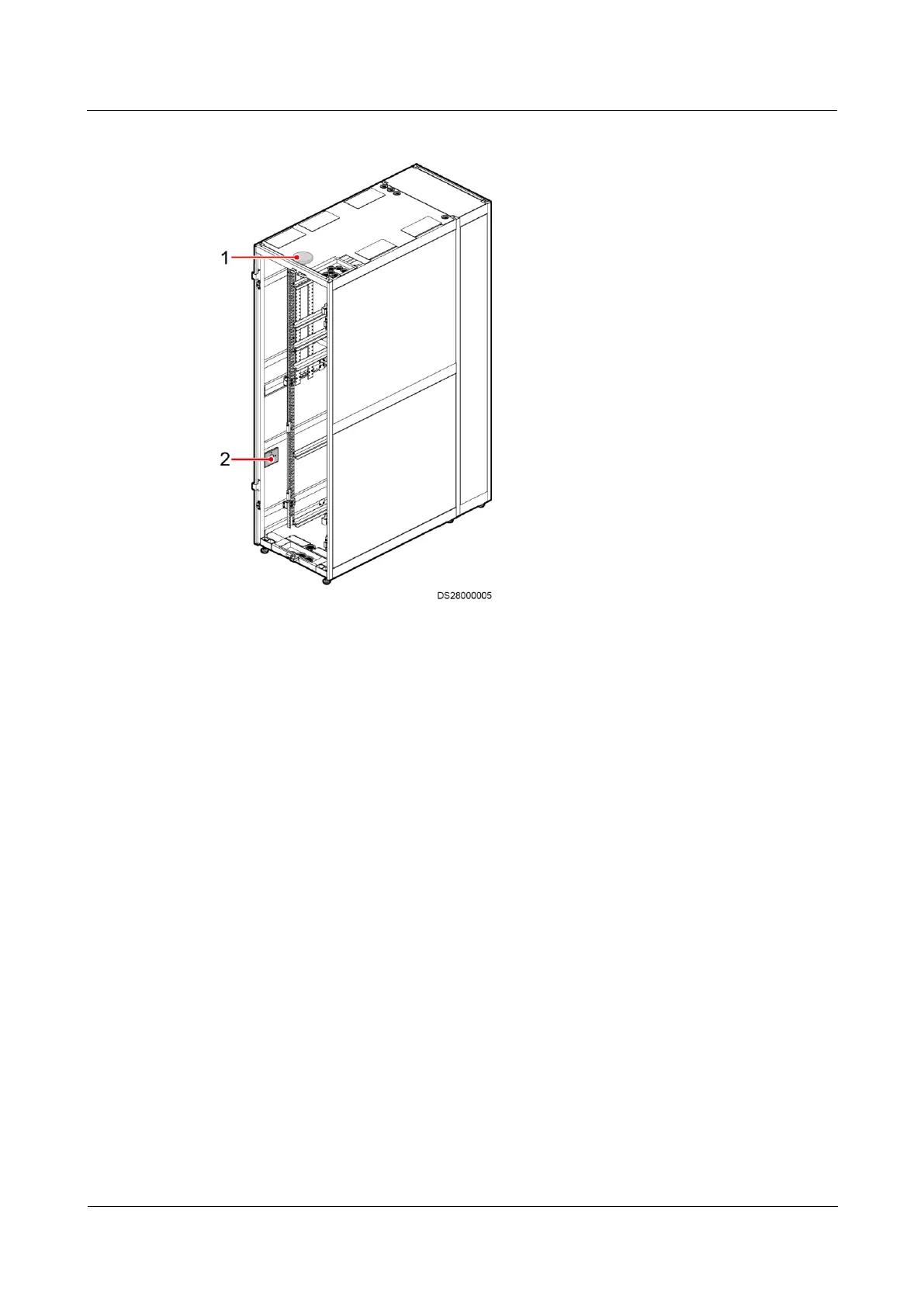

Figure 5-70 Sensor positions
A water sensor consists of a water detection rope, water detector, and conversion cable. The
water detection rope is laid out on the floor, connecting to the water detector placed near the
collector by the conversion cable. Figure 5-71 shows the components.
