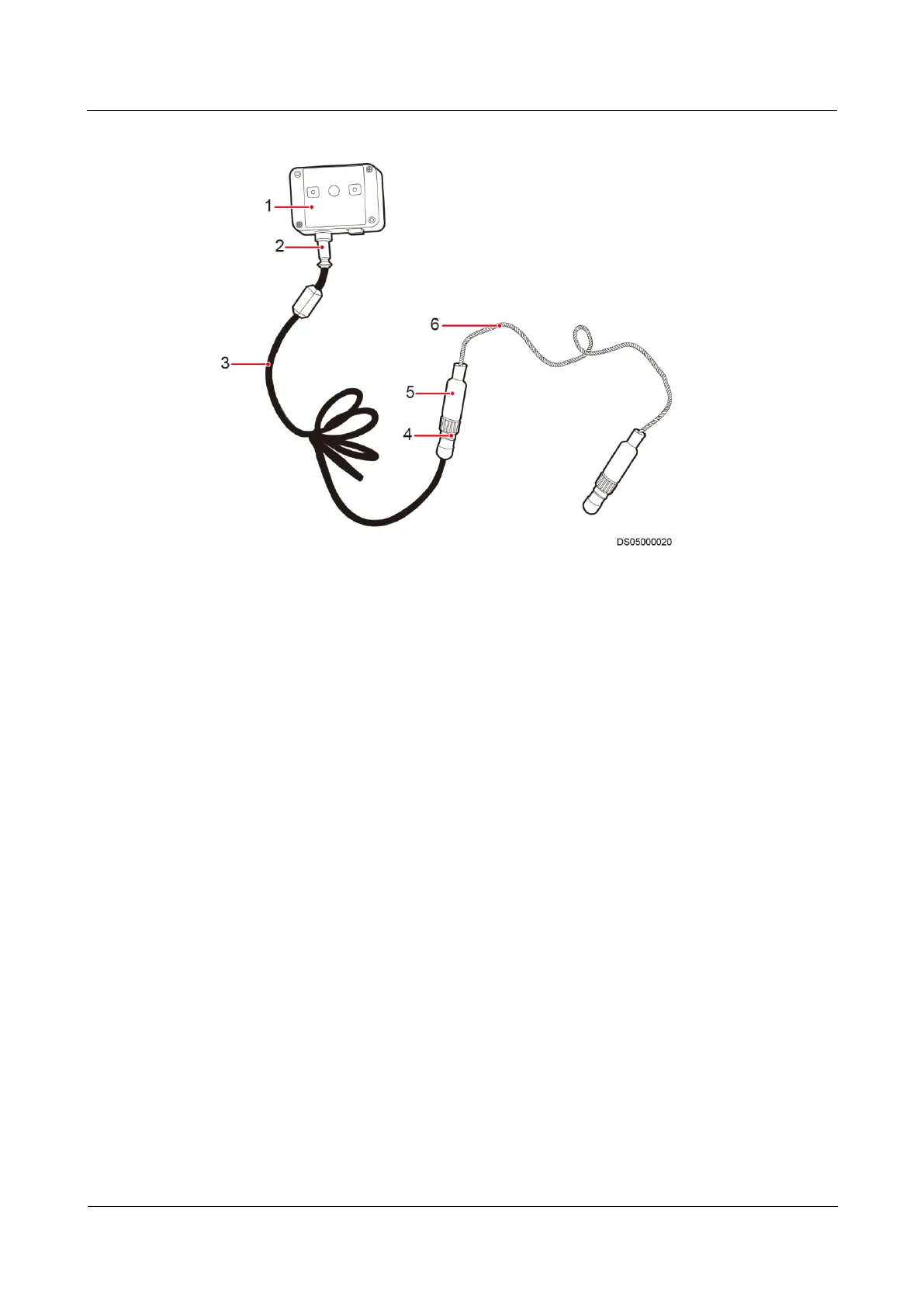

Figure 5-71 Water sensor components
(1) Water detector
(2) Conversion cable end A,
connecting to the water detector
(3) Conversion cable
(4) Conversion cable end B,
connecting to water the
detection rope
(5) Water detection rope end A,
connecting to the conversion
cable
(6) Water detection
rope
Procedure
Step 1 Replace the water detector.
1. Remove the conversion cable at the conversion port for the water detector and
conversion cable.
2. Remove the cover from the water detector, as shown in Figure 5-72.
