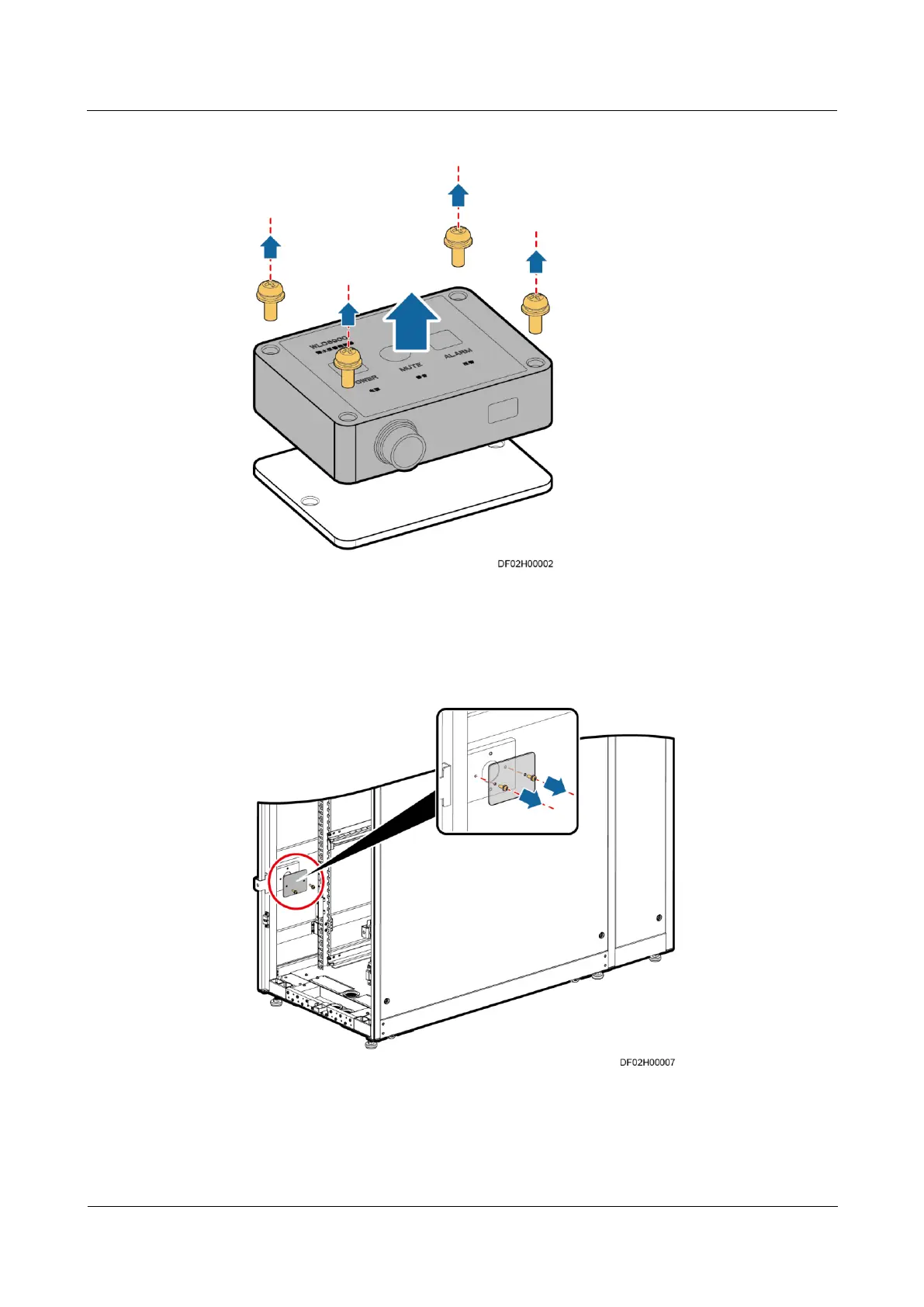

Figure 5-72 Removing the cover from the water detector
3. Remove the bottom plate of the water detector from the Converged Cabinet, as shown in
Figure 5-73.
Figure 5-73 Removing the bottom plate of the water detector
4. Install the new water detector in the Converged Cabinet by referring to the preceding
steps.
5. Connect the new water detector to the conversion cable.
