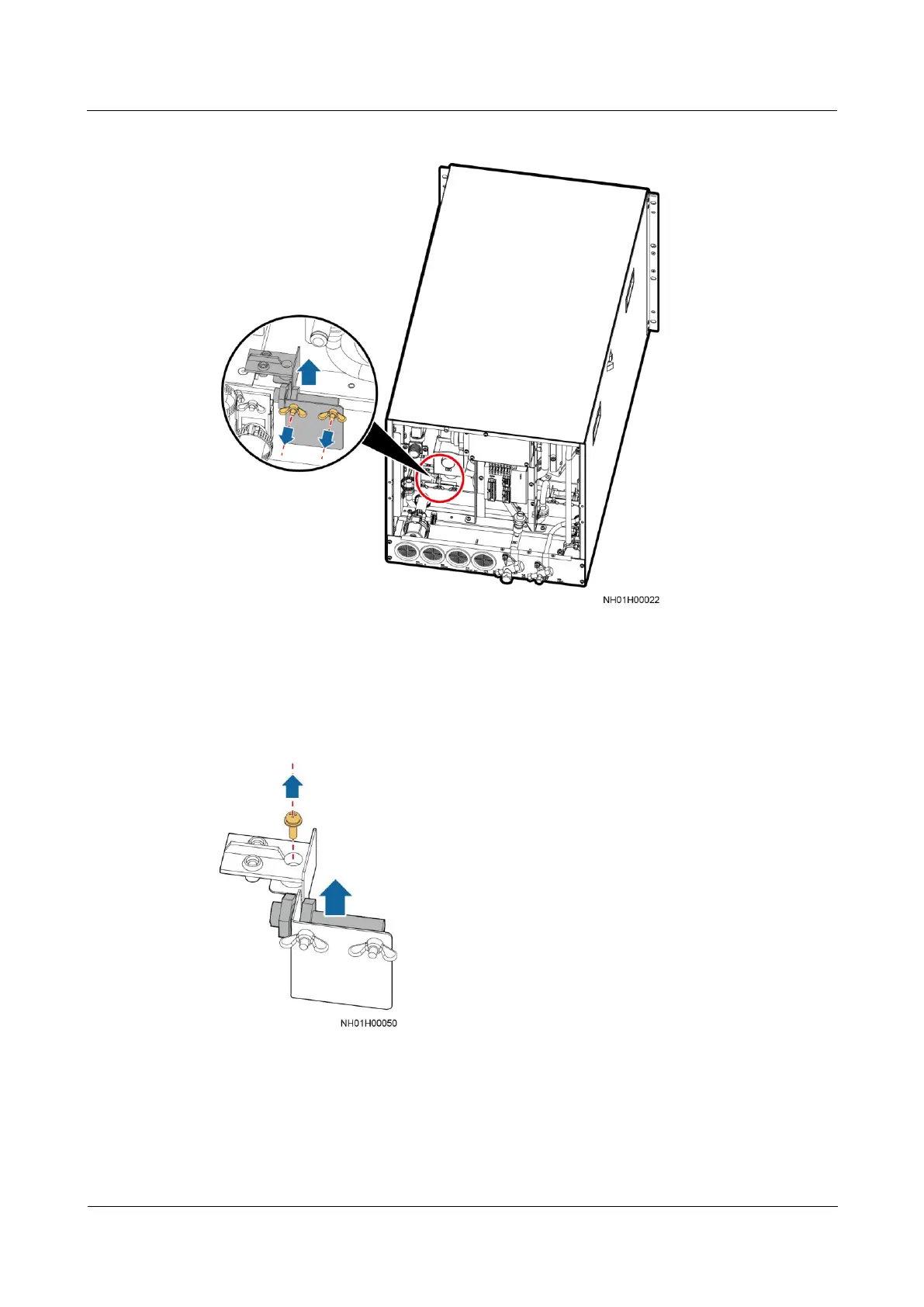

Figure 5-34 Removing the fastener
Step 6 Remove screws from the high liquid level detector using a Phillips screwdriver, and remove
the high liquid level detector. Loosen the screws on the low liquid level detector, move it
upwards, and remove it, as shown in Figure 5-35.
Figure 5-35 Removing a liquid level detector
Step 7 Install the new liquid level detector in the original position by performing the steps in reverse
order, and connect cables.
----End
