No. Meaning Description
3 Product subcategory G: series name
4 Output capacity 6K: 6 kVA
10K: 10 kVA
15K: 15 kVA
20K: 20 kVA
5 UPS type RT: rack-mounted or tower-mounted UPS
RR: rack-mounted UPS
TT: tower-mounted UPS
TM: modular tower-mounted UPS
RM: modular rack-mounted UPS
6 Built-in battery pack
(optional)
S: standard model, providing only a standard
battery pack
L: long backup time model, using external
large-capacity battery packs that provide long
backup time
7 Model identier 01
2.2 Working Principle
2.2.1 Conceptual Diagram

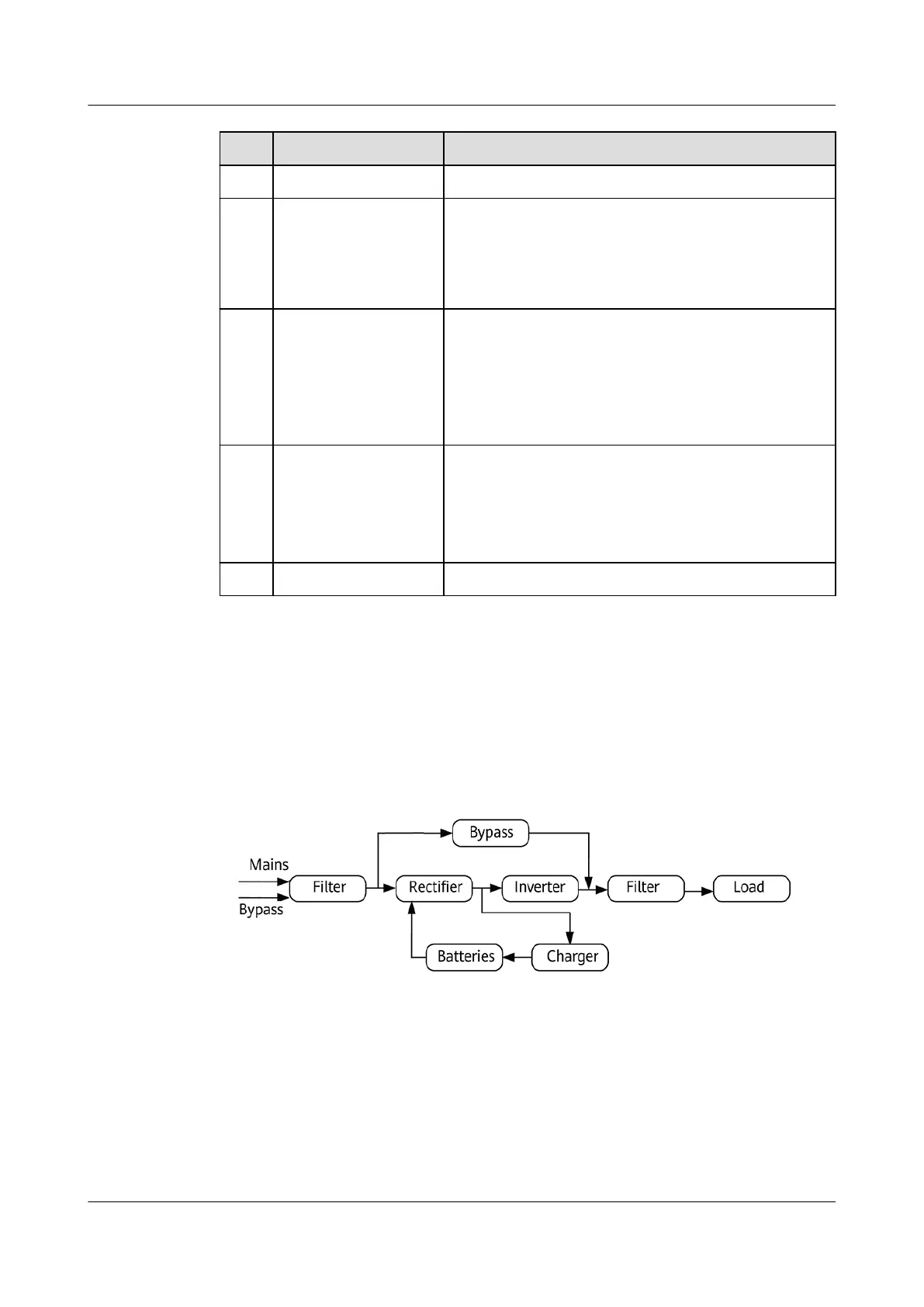

Figure 2-2 shows the UPS conceptual diagram.
Figure 2-2 Conceptual diagram
2.2.2 Working Modes
The UPS has the following working modes:
Normal mode
When the mains is normal, the rectier boosts the mains input voltage and
converts the AC power into stable DC power for the inverter, and the mains
charges batteries over a charger. Then the inverter converts the DC power into
stable AC power, which is supplied to loads.
UPS2000-G-(6 kVA-20 kVA)
User Manual 2 Quick Introduction
Issue 21 (2022-10-13) Copyright © Huawei Technologies Co., Ltd. 19
