Huawei UPS2000-G Series User Manual

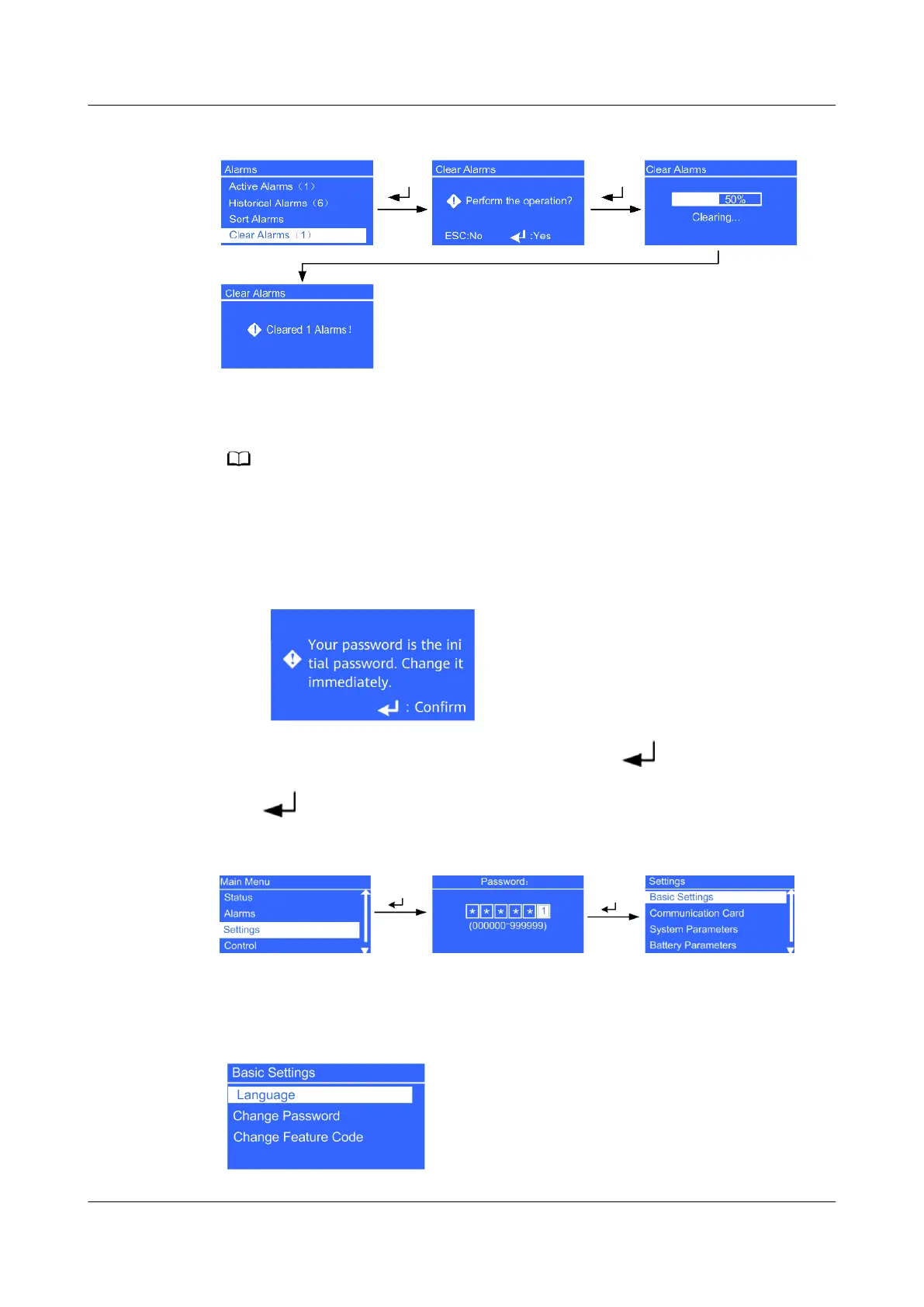

Figure 4-21 Clear Alarms screen
4.6.3 Settings
NO TE
● To ensure system security, change the LCD and WebUI passwords after the rst login.
● The UPS2000-G-15KRTL-01/UPS2000-G-20KRTL-01 prompts users to change the initial
password. If an incorrect password is entered
ve consecutive times, the account will be
logged out for 5 minutes.
Figure 4-22 Password change reminder
On the Main Menu screen, select Settings, and press . The Settings login
screen is displayed. The preset password is 000001. After you enter a password,
press
. The Settings screen is displayed, as shown in Figure 4-23.
Figure 4-23 Settings screen
4.6.3.1 Basic Settings Screen
Figure 4-24 Basic Settings screen
UPS2000-G-(6 kVA-20 kVA)
User Manual 4 Control Panel
Issue 21 (2022-10-13) Copyright © Huawei Technologies Co., Ltd. 65

Huawei UPS2000-G Series Specifications

General

Frequency	50/60 Hz
Output Power Factor	0.9
Humidity	0% to 95% (non-condensing)
Dimensions	Varies by model
Weight	Varies by model
Capacity	1 kVA, 2 kVA, 3 kVA
Input Voltage	220 Vac (120 Vac/208 Vac/230 Vac/240 Vac)
Output Voltage	220/230/240 VAC
Efficiency	Up to 95%
Topology	Double conversion online
Battery Type	Sealed Lead Acid
Communication Ports	USB, RS232
Optional Communication	SNMP
Operating Temperature	0°C to 40°C
