4 Control Panel
4.1 Introduction
The UPS control panel is located on the front panel of the chassis. The control
panel allows you to control and operate the UPS, view the running status, set
parameters, and view alarms. Figure 4-1 shows the control panel.

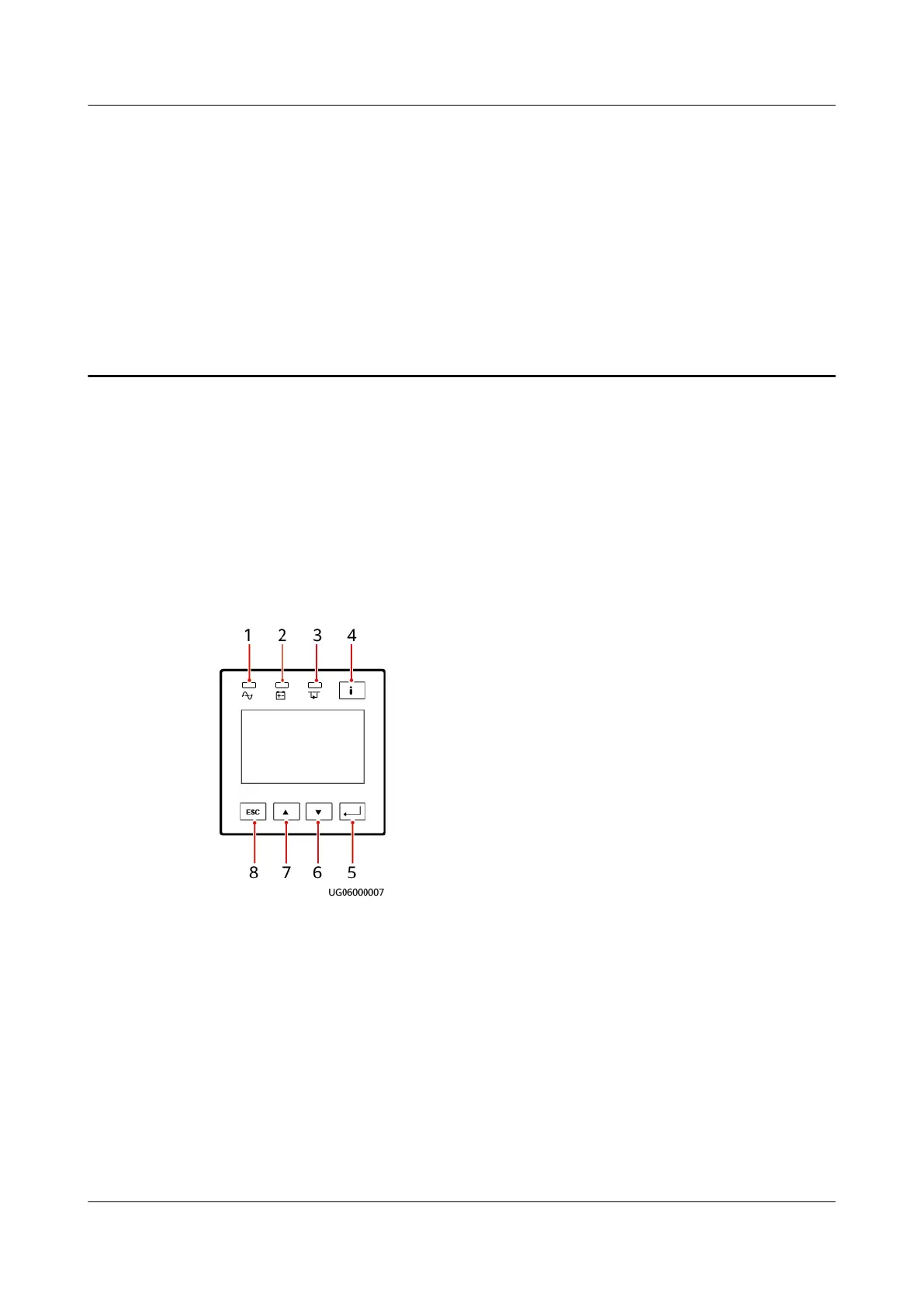

Figure 4-1 Control panel
(1) Mains indicator
(2) Battery indicator (3) Bypass indicator (4) Fault indicator/
INFO button
(5) Startup/Enter/
Battery Self-Check/
Mute button
(6) Down button (7) Up button (8) Shutdown/Back
button
4.2 Indicators
Table 4-1 describes the indicators on the control panel.
