Optional
Component
Model Function Remarks
Magnetic
loop
DN85H, H38x22x15 (DMEGC)
E2F, 38x22x15 (FENGYI)
Optimizes the
performance of the TN-C
power distribution system
in the parallel system
scenario.
In a UPS2000-G-15
kVA/20 kVA
parallel system
using the TN-C
power distribution
system, install four
magnetic rings on
the PE cables on
each UPS, bind the
four magnetic
rings together
using binding tape,
and secure them
to the nearest
place.
NO TE
● It is recommended that you install the battery temperature sensor (secured with an
adhesive) on the surface of batteries in the middle of the battery rack.
● Check the upstream input power cable connection. If the PE wire and neutral wire are
short-circuited, the system is a TN-C system. If the PE wire and neutral wire are
connected separately, the system is a TN-S system.

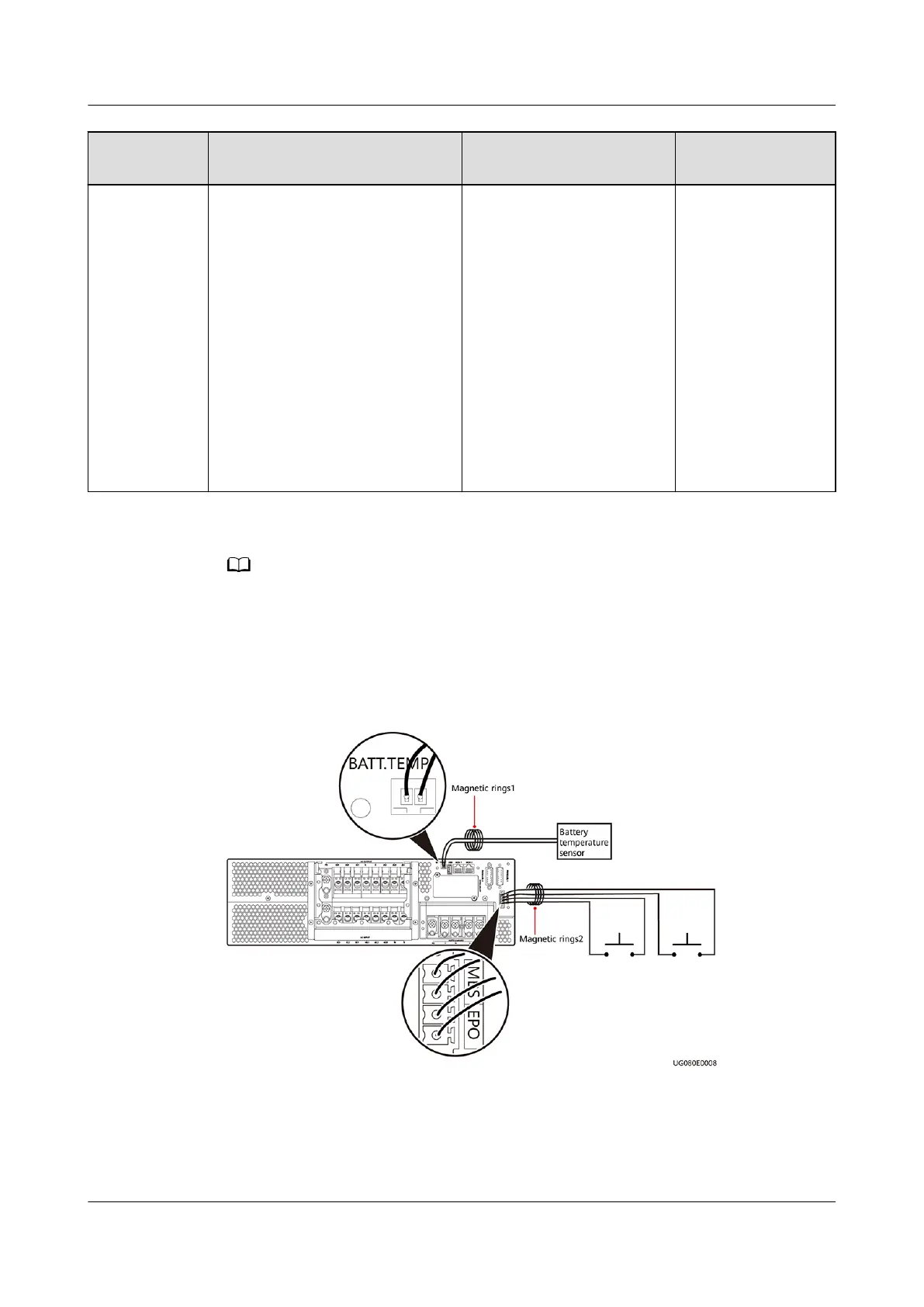

Figure 2-7 Installing magnetic rings for the BATT.TEMP, MBS, and EPO ports
UPS2000-G-(6 kVA-20 kVA)
