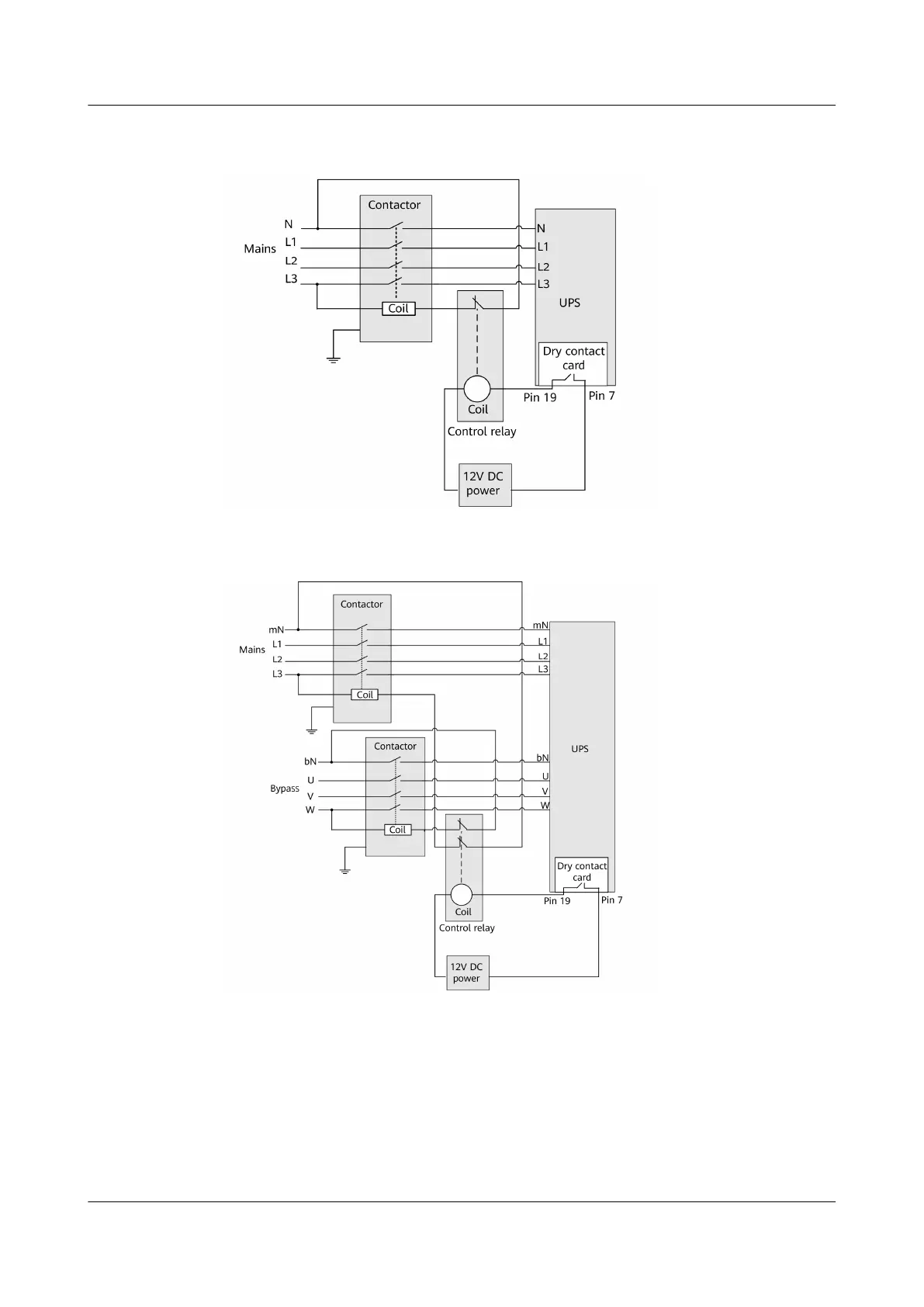

Figure 3-8 Bypass backfeed protection connections for the UPS2000-G-10 kVA
(three-phase input single-phase output)
Figure 3-9 Bypass backfeed protection connections for the UPS2000-G-15 kVA/20
kVA (three-phase input three-phase output)
UPS2000-G-(6 kVA-20 kVA)
User Manual 3 Installation
Issue 21 (2022-10-13) Copyright © Huawei Technologies Co., Ltd. 47
