Audio Inputs
Use the AUDIO INPUTS screen to enable/disable live audio sources and configure and prioritize them for
the Elemec3 system. The AVAILABLE AUDIO INPUTS (BY PRIORITY) pane lists the enabled audio sources
and assigns priorities to the sources in the order listed. Configure priorities so that higher priority sources
override lower priority sources when used by the same event. Use the AUDIO INPUT PROPERTIES pane
to configure the parameters necessary for the audio input currently selected in the prioritized list.
Sources Enabled
The SOURCES ENABLED: checkboxes enable the live audio sources in the E3 system.

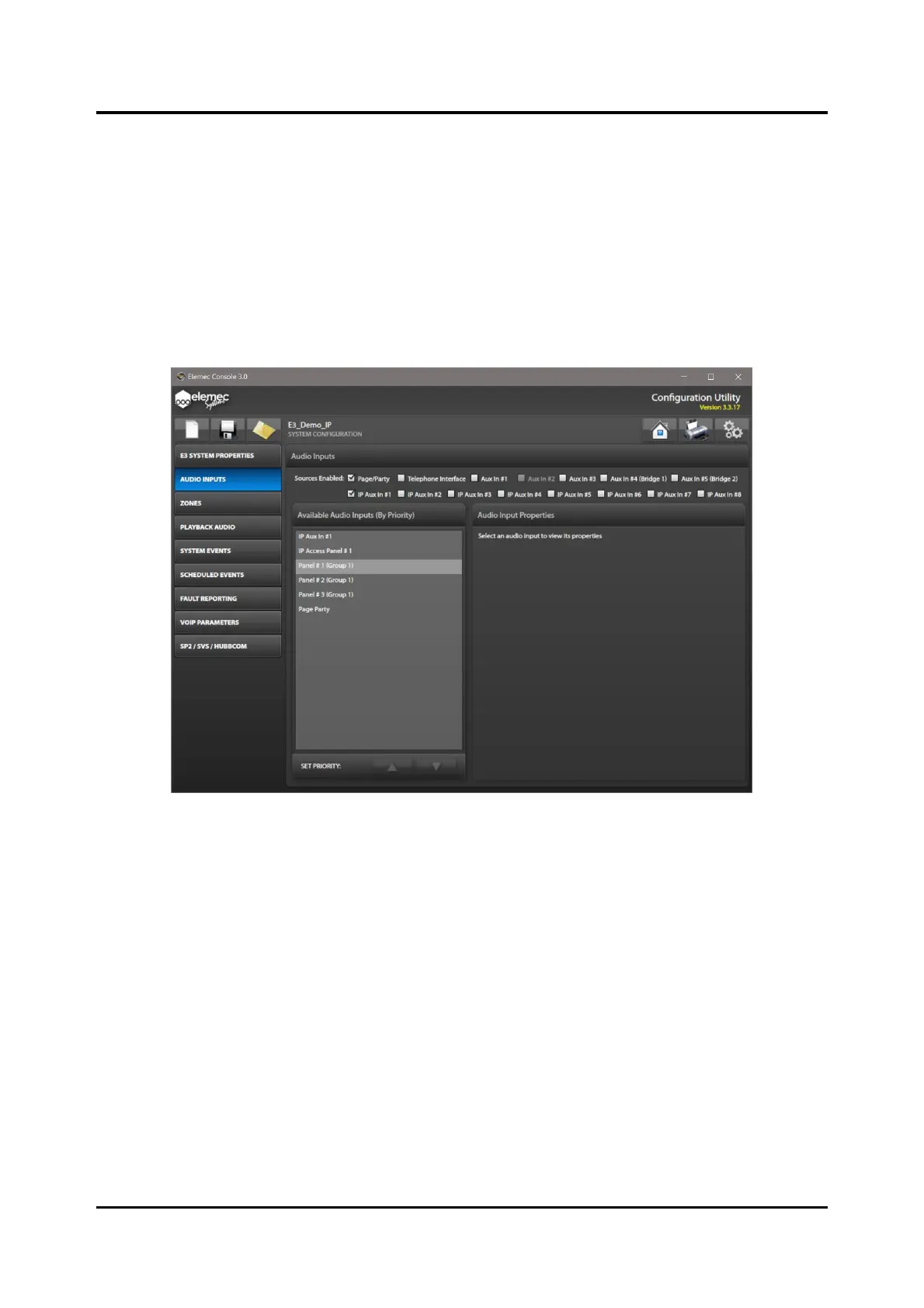

Figure 63. Audio Inputs Configuration
1. Select the check boxes for the audio input sources in the Elemec3 system.
Each input appears in the AVAILABLE AUDIO INPUTS (BY PRIORITY) panel when selected.
2. Use the up and down arrows at the bottom of the pane to configure the relative priorities of the audio
inputs after selecting all necessary inputs.
NOTE: Aux #2 is only available if insert one is not enabled. Aux #3 is only available if insert two is not
enabled. Aux #4 and Aux #5 are only available in stand-alone systems. In the figure below,
INSERT 1 is enabled on the SYSTEM PROPERTIES screen so AUX IN #2 is disabled here.
Page/Party Audio Input Properties
Select PAGE/PARTY from the AVAILABLE AUDIO INPUTS (BY PRIORITY) panel to configure the
Page/Party
audio input properties.
