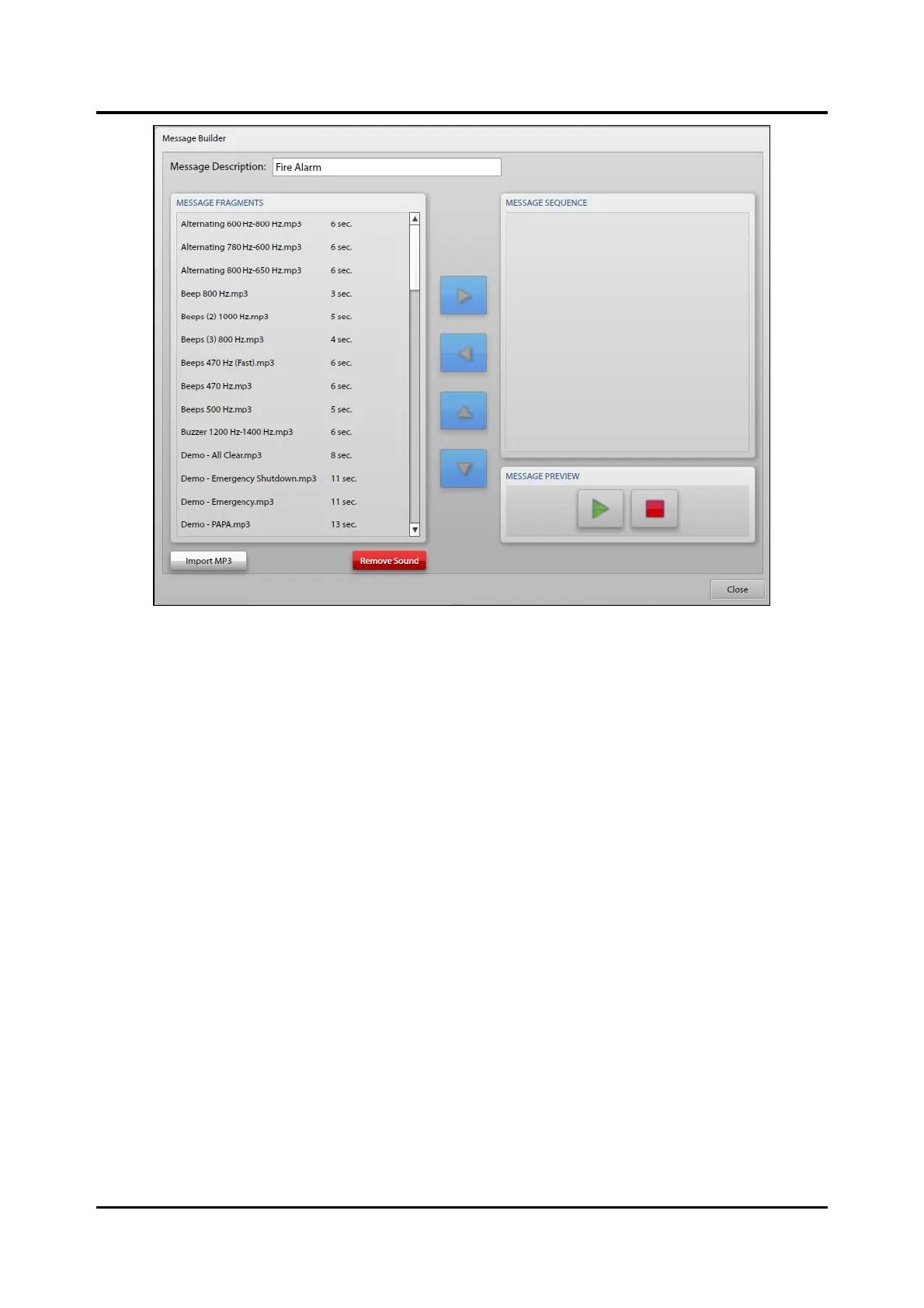

Figure 78. Message Builder
Message Description—user-defined unique description for the message. (This name identifies the
message in all areas of the system.) The message description is defined when creating a message but can
be modified here.
NOTE: Update the related events with the new description after changing a message description here.
Message Fragments
Add a message fragment to a message sequence by selecting the fragment from the list on the left and
clicking the right-arrow button to move the fragment to the MESSAGE SEQUENCE pane.
Select a message fragment in the MESSAGE FRAGMENTS list to access the play button. Press the green
play button to listen to the fragment.
Message Sequence
Change the playback sequence of the message by highlighting the fragments in the MESSAGE SEQUENCE
pane and then use the up and down arrows to place the fragment in the desired playback position.
Remove a fragment from the MESSAGE SEQUENCE pane by selecting the fragment and clicking the left-
arrow button.
Message Preview
Click the green play arrow to preview the message. Press the red stop button, at any time, to stop
playback.
Import MP3—a FILE OPEN dialog box opens to import audio files into the list of MESSAGE
FRAGMENTS.
