Humminbird SOLIX series User Manual

145
Mosaic
Turn on/off Gain Correct
Turn on Gain Correct to automatically tune the transducer signal and filter any clutter that may show up in the Mosaic Live data.
1. From the Mosaic Live Menu, select Mosaic Options.
2. Select Gain Correct.
3. Tap the on/off button, or press the ENTER key, to turn it on or off.
Adjust the Sensitivity and Contrast
The sensitivity and contrast can be adjusted while the Mosaic is being recorded or it can be adjusted when a saved Mosaic is loaded
onto the Chart View.
Adjust the Sensitivity and Contrast
1. From the Mosaic Live Menu, select Sensitivity or Contrast.
2. Press and hold the slider, or turn the Rotary dial, to adjust the setting.
contrast set high,
accenting the light
and dark parts of the
Mosaic history
sensitivity set high to
display weak returns

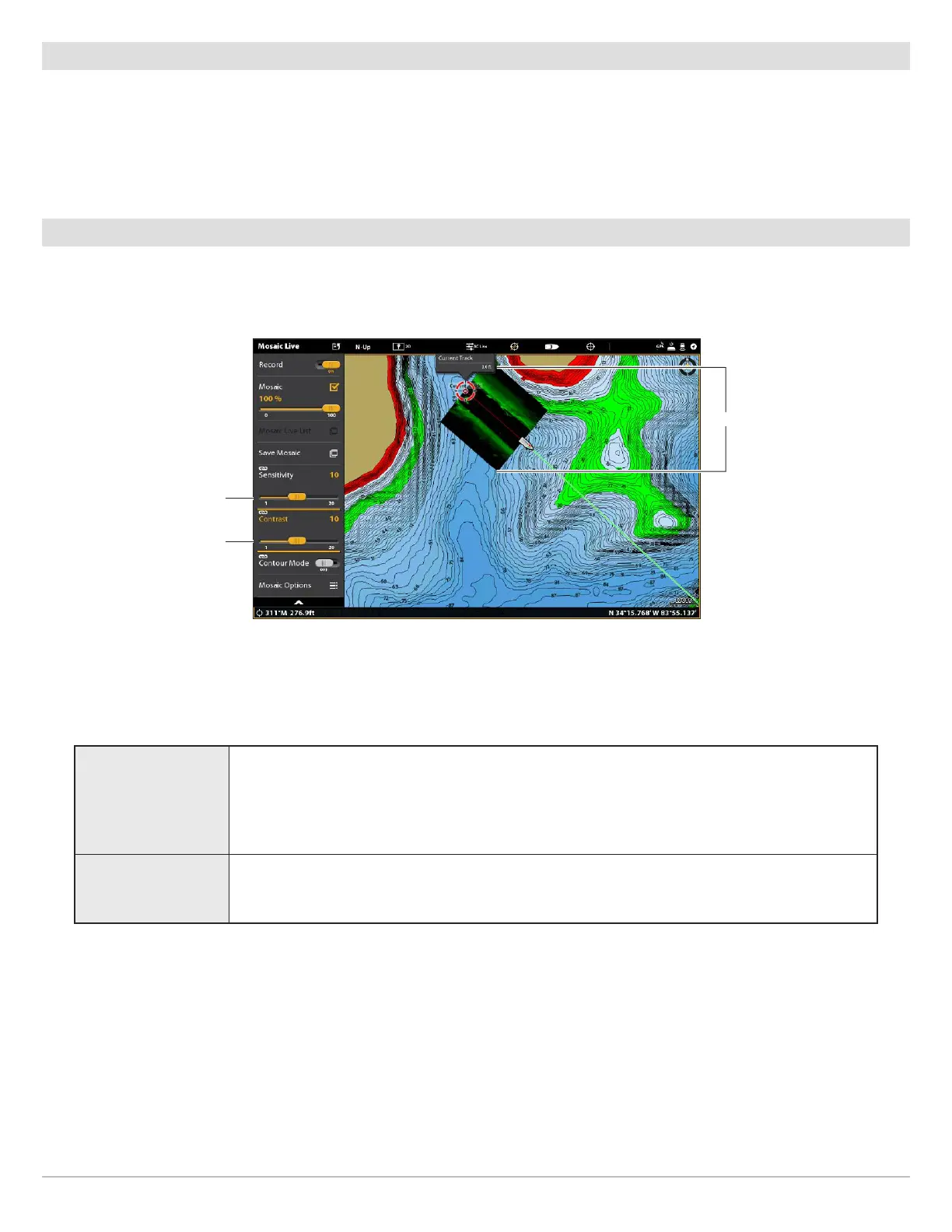

Adjusting the Sensitivity and Contrast
Mosaic
Sensitivity
Sensitivity controls how much detail is shown on the display and will adjust the sensitivity of
all sonar frequencies. Decrease the sensitivity to eliminate the clutter from the display that
is sometimes present in murky or muddy water. When operating in very clear water or greater
depths, increase the sensitivity to see weaker returns that may be of interest.
Contrast
Adjust the Contrast setting to accent the light and dark parts of the Mosaic data to provide
greater definition.

Humminbird SOLIX series Specifications

General

Depth-Sonar Standard	Up to 1, 500 feet (varies by model)
Interface	Touchscreen
GPS	Yes
Cartography	Humminbird Basemap
Target Separation	2.5 inches
Networking	Ethernet, NMEA 2000
Memory Card Slot	Yes
Waterproof	IPX7
Operating Frequency	1.2MHz
Dimensions	Varies by model
Weight	Varies by model
Display Size	10.1", 12.1"
Display Resolution	1280 x 800 pixels (varies by model)
Operating Temperature	-15°C to 55°C (5°F to 131°F)
