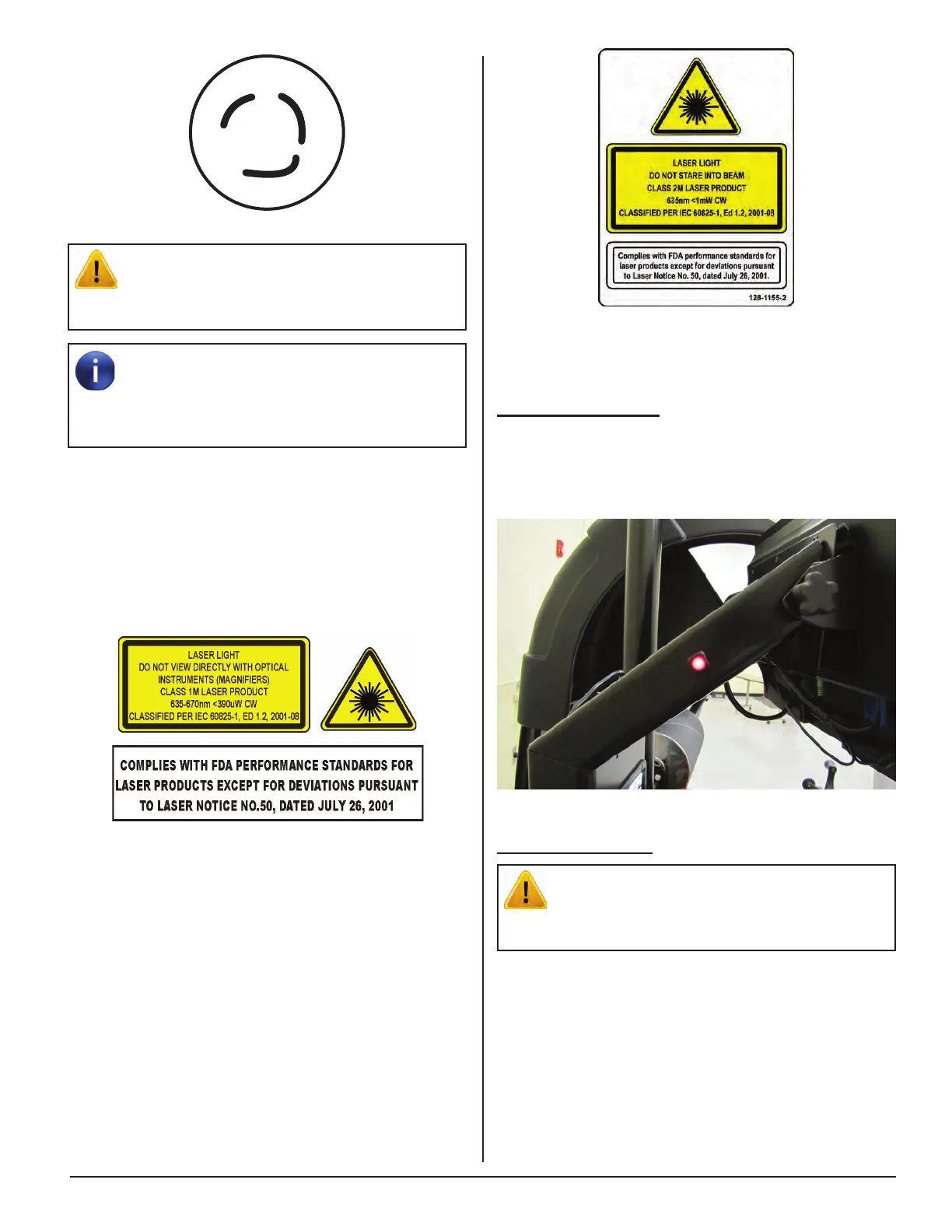

GETTING STARTED 5
Figure 6.
Turning Power ON/OFF
Push Button Switch
The SmartWeight Touch®/GSP9200 Touch is equipped
with a push button power switch located on the left side
of the LCD support. Use this switch for normal shut down
and restarting procedures.
Figure 7.
Main Power Switch
To prevent loss of data, always use the push
button switch on the LCD support to power the
balancer on and off. Then use the main power
switch to remove power to the entire unit.
Y
X
G
Figure 4.
A protective ground connection, through the
grounding conductor in the power cord, is
essential for safe operation. Use only a power
cord that is in good condition.
For information on converting from single phase
NEMA L6-20P plug to thee phase NEMA L15-
20P plug refer to Form 5350-T, “NEMA L6-20P
to NEMA L15-20P Power Plug Conversion
Instructions.”
Specific Precautions/BDC Laser Indicator
The BDC (Bottom Dead Center) Laser Indicator is a class
1M laser designed to aid in applying adhesive weights.
The laser is not a field serviceable or adjustable part.
Use caution in regard to reflective materials around the
laser and never look into the laser beam.
Figure 5.
Specific Precautions/HammerHead
®
TDC
Laser Indicator (Optional)
The TDC (Top Dead Center) Laser Indicator is a class
2M laser designed to aid in applying clip-on weights. The
laser is not a field serviceable or adjustable part.
Use caution in regard to reflective materials around the
laser and never look into the laser beam.
