Hunter SmartWeight Touch - Balancing Procedure Using Adhesive (Tape) Weights

BALANCING PROCEDURES 41
INNER
DA
TASET
ARM
Figure 159.
Do NOT return the inner Dataset® arm to the “home”
position.
Using the DOWNWARD position, move the inner
Dataset® arm disk edge to the location for placement of
the right edge of the adhesive weight on the right weight
plane and enter data by depressing the foot pedal.
Figure 160.
INNER
DA
TASET
ARM
Figure 161.

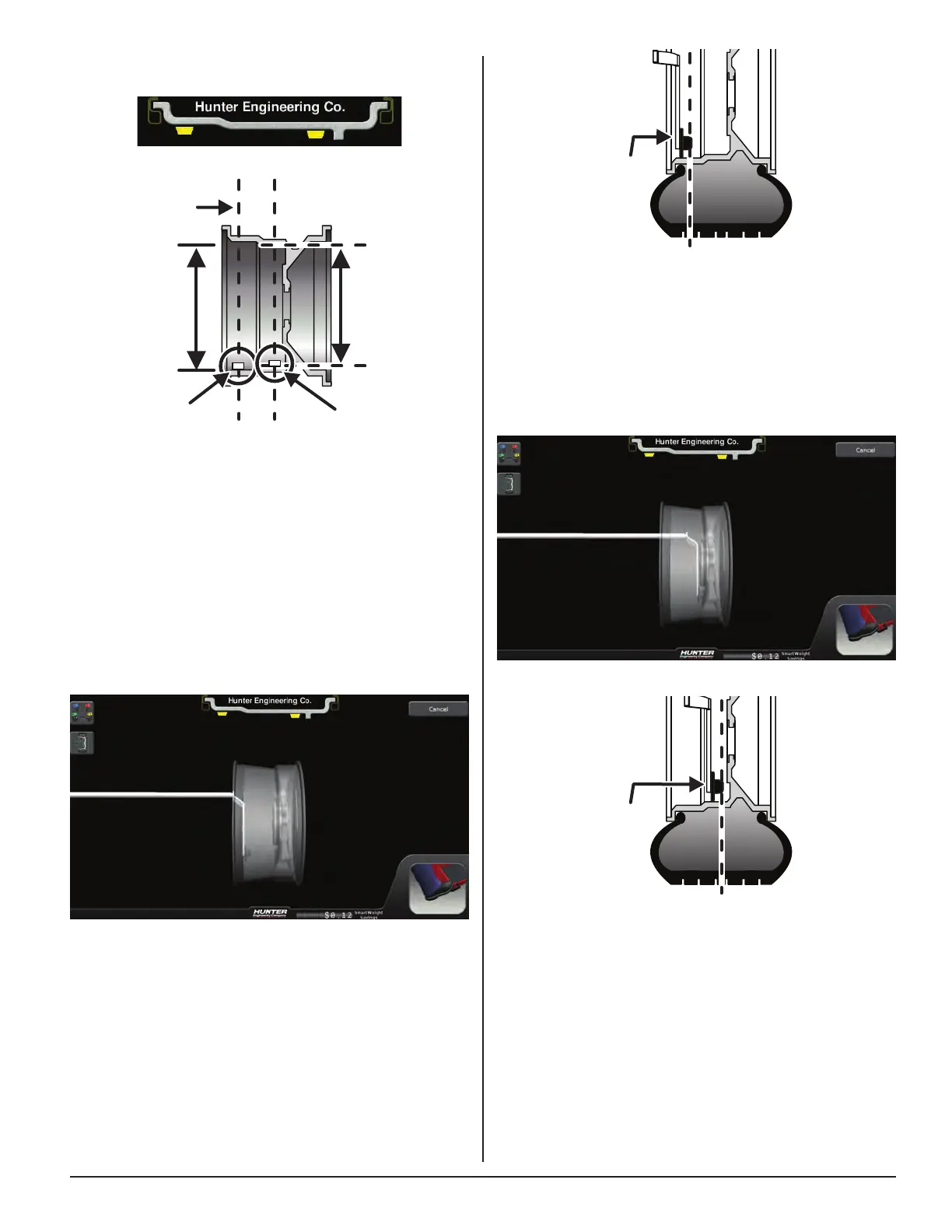

Balancing Procedure Using Adhesive (Tape)
Weights
Figure 156.
LEFT
DIAMETER
RIGHT
PLANE
LEFT
PLANE
RIGHT
DIAMETER
TAPE
WEIGHT
TAPE
WEIGHT
Figure 157.
Verify that the wheel is clean and free of debris.
Remove all previous weights.
Mount tire/wheel assembly.
Using the DOWNWARD position, move the inner
Dataset® arm disk edge to the location for placement
of the left edge of the adhesive weight on the left weight
plane and enter data by depressing the foot pedal.
Figure 158.
