EQUIPMENT INFORMATION 63

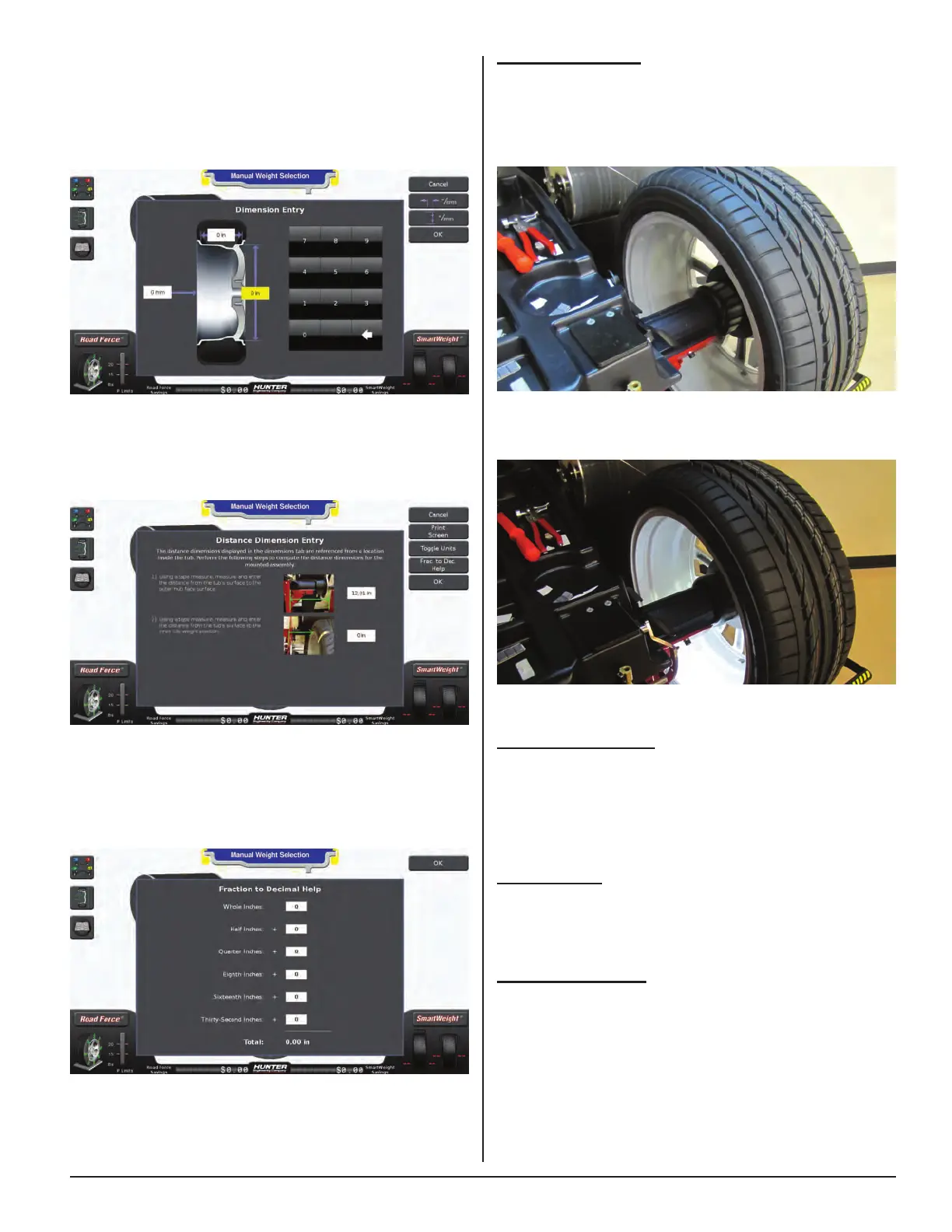

Rim Interior Light
When the inner Dataset
®
is rotated downward, the rim
interior light activates. This is useful for inspection,
cleaning the rim interior and applying tape weights. Inner
Dataset
®
arm in “home” position.
Figure 263.
Inner Dataset
®
arm in “down” position.
Figure 264.
Balance Checkspin
Enables or disables the load roller during balance
verification spins. When enabled the load roller will
automatically disabled as necessary. Options are
Disabled or Enabled.
Weight Units
Use “Weight Units” to select ounces or grams for
displaying wheel weights.
Background Color
Changes the background color of all screens.
Use a tape measure to obtain the outer rim dimension.
Touch the box and use the keypad to enter the
dimension.
Rpeat for the rim width dimension.
Figure 260.
Touch the inner rim dimension box. Instructions will
appear explaining how to measure the inner distance
dimension.
Figure 261.
If needed, a “Fraction to Decimal Help” application is
available.
Press “OK” to continue.
Figure 262.
