Huvitz Excelon XD - System Configurations; Main Body

18 Excelon XD/XQ Operator’s Manual
3. System Configurations
3.1 Main Body

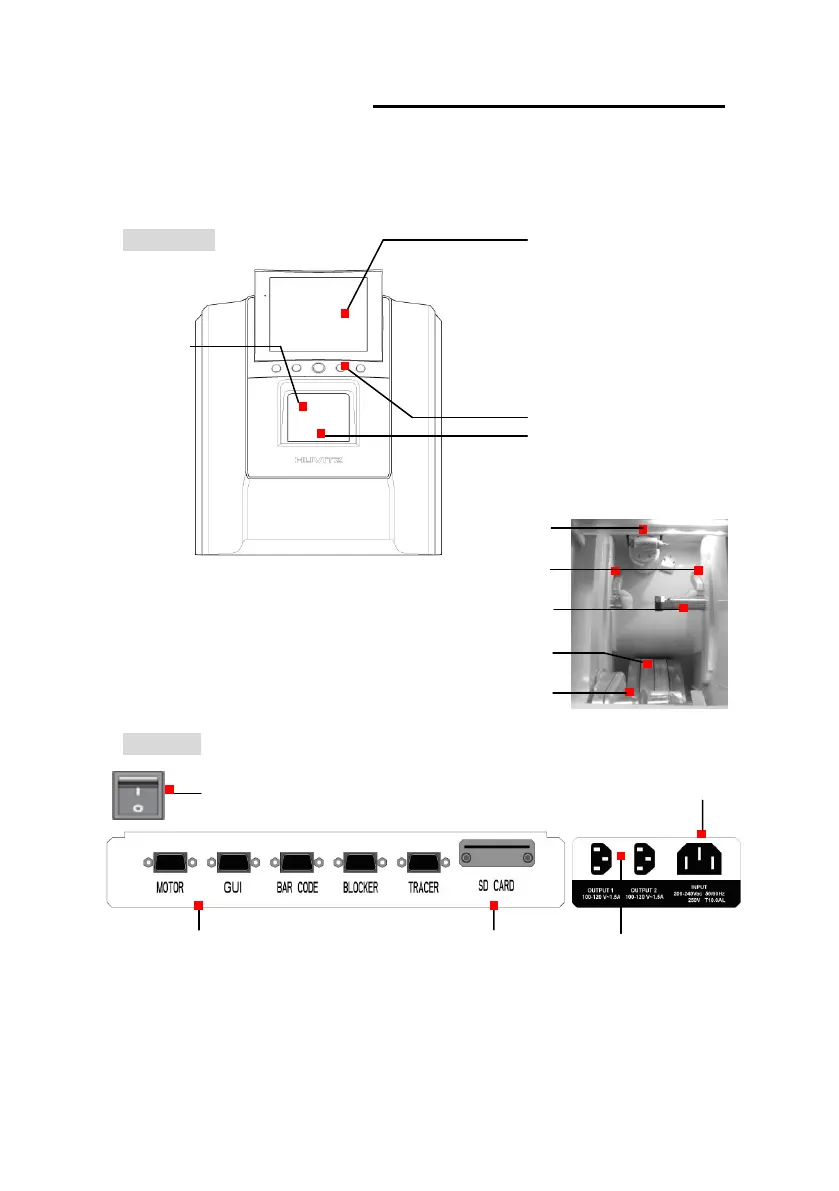

Front View
Top View
Display window
(Touch Screen)
Edging
Room
Cover
(Auto)
Operating Buttons
Power outlet for Pump I, II
Main power inlet and Fuse
Holder
SD memory card slot
Edging Room
Main Wheel
Wheel for Safety Beveling and Grooving
휠
Drill(XD)
Clamp
Lens Feeler
Main Switch
Interface Terminal
• MOTOR/GUI : maintenance • BLOCKER : Auto Blocker
• BAR CODE: Barcode Reader • TRACER : Frame Reader
