4. Installation Procedure
① Remove the shock-absorbing material from the packing box and pull out the
Edger carefully.
② Unfasten the screw at the Edger Front Cover and lift it open.
③ Remove the Fixing materials (bracket, sponge, tape).
④.Plug the Pump Power Cable into the receptacle for Pump at the back of the
product.
⑤ Connect Water Supply Hose into the Pump.
⑥ Connect Water Drain Hose into Water Drain Hole and tie it with the fixing clip.
⑦ Assemble the Edger Cover.
⑧ Check the Initialization.
Store the Fixing materials into the toolbox for the use of moving the product.

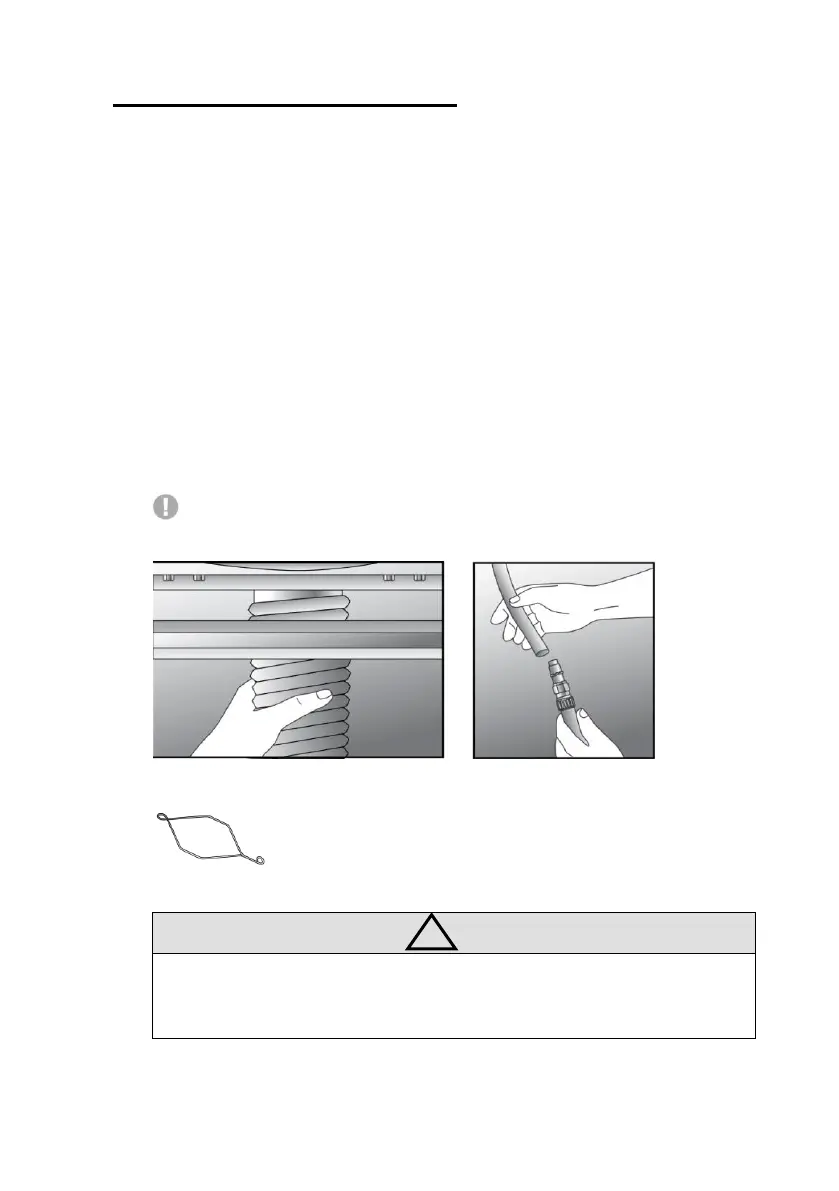

[Connecting the Water Drain Hose] [ Connecting the Water Supply Hose ]
Fixing Clip for Water Drain Hose
• Fill up 2/3 of the tank with water and make sure that the water supply hose is
not dragged below the pump, and is not folded or interfered with other objects.
• Use the Clip to tie the Water Supply Hose properly.
