Excelon XD/XQ Operator’s Manual 61

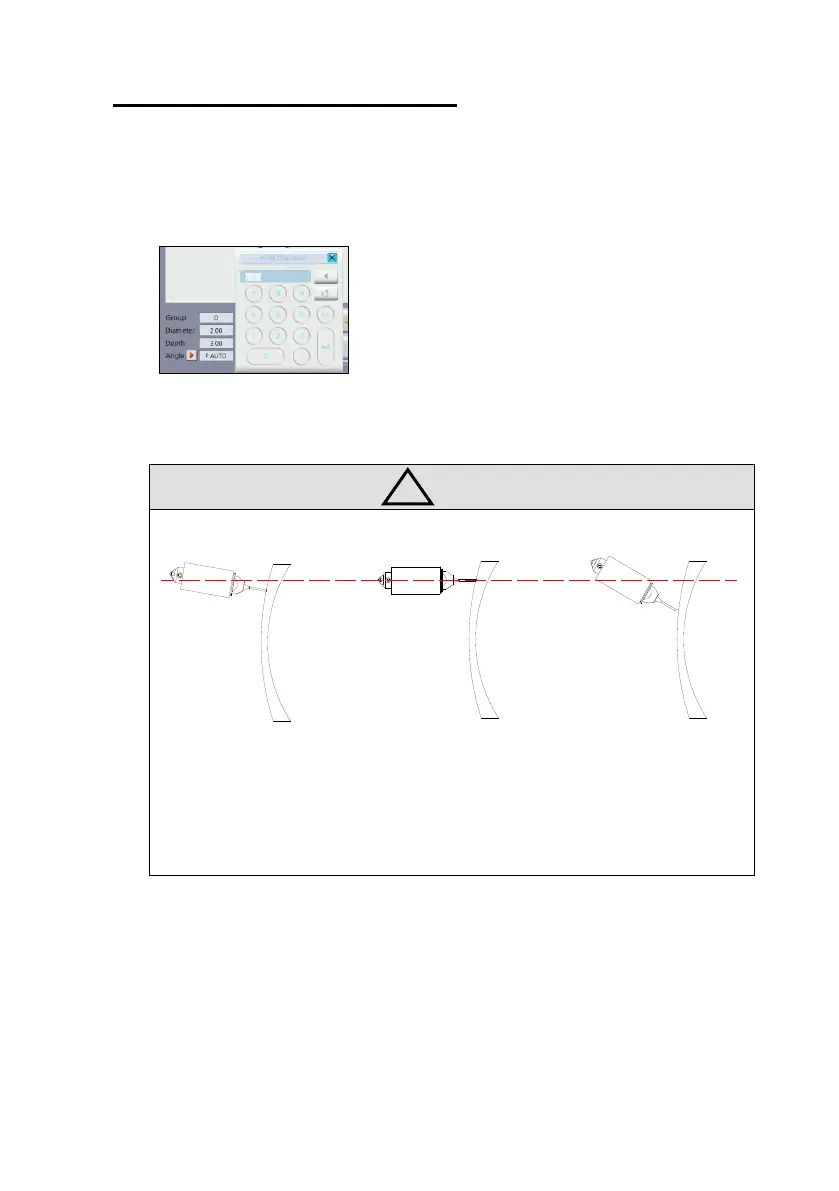

5.3.10 Hole Attributes
Hole attributes (Group, Diameter, Depth, Angle) are displayed on the bottom left of the
screen.
• Diameter : Hole diameter (Min 0.8 mm)
• Depth : Hole depth (0 means through hole)
• Angle : Tilting angle (0°~ 30°, Automatic)
• Tilting Angle
Automatic
(perpendicular to
surface)
0°
30°(maximum)
• Group attribute explained in a separate chapter.
!
NOTE
