Huvitz Excelon XD - Bevel, Grooving, and Safety Beveling

Excelon XD/XQ Operator’s Manual 95

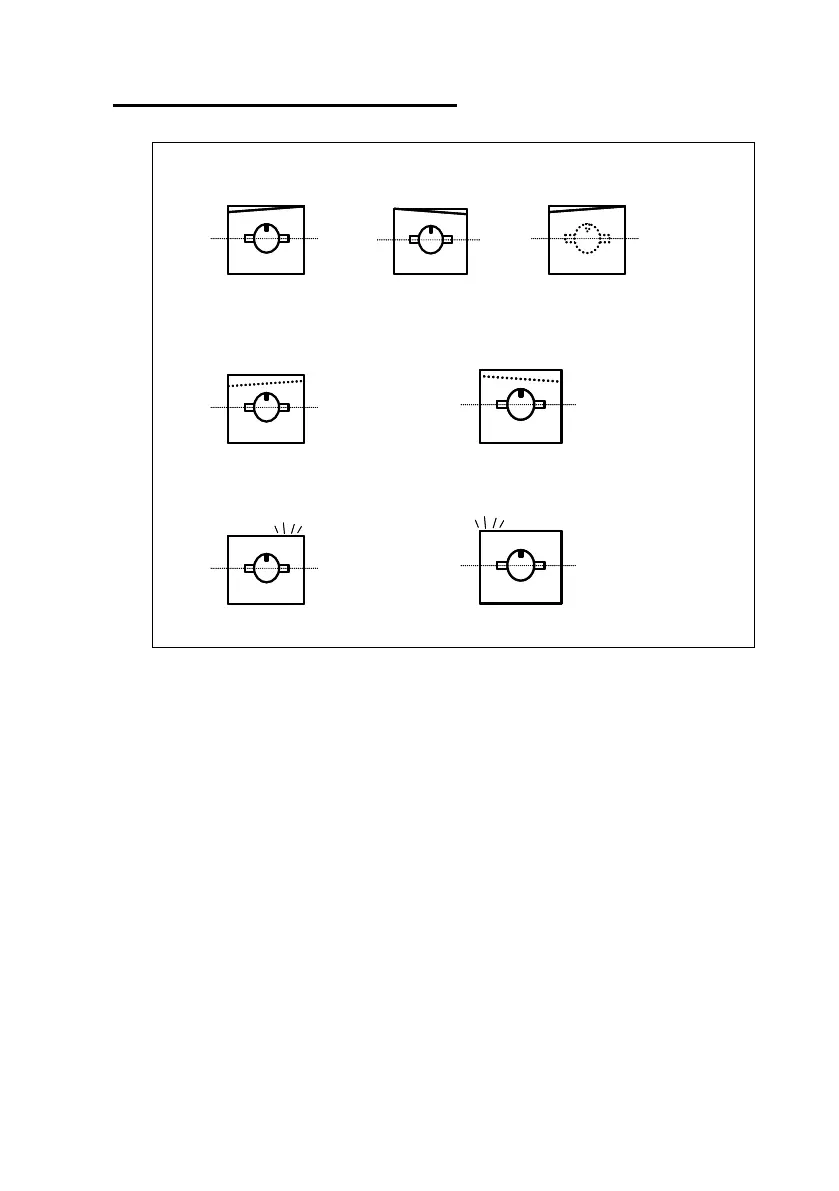

b. Safety beveling axis adjustment
Front Front Rear
Add (-) value Add (+) value Add (+) value
c. Grooving axis adjustment
Add (-) value Add (+) value
d. Polishing axis adjustment
Add (-) value Add (+) value
6.3.4 Bevel Adjustment
These values are used for adjusting bevel position
• Test Pattern
- Execute the Circle pattern (Ø 50) with the beveled position 50%.
• Test Cases
- Make the circle pattern with polishing and the circle pattern without polishing
respectively.
• Adjustment
- Change the value within the tolerance
±
±
0.1mm.
