(1) Hole Position Information
(2) Add Hole
(3) Change Hole Type
(4) Hole ID / Select Hole
(5) Delete Hole
(6) Hole Position Reference (Horizontal)
(7) Hole Position Reference (Vertical)
(8) Undo
(9) Redo
(10) Hole Attributes
(11) Hole Position Adjustment
(12) Exit
• To use Hole Editor, the blocking mode option must be set to “Boxing Center”
mode. If hole data already added, blocking mode cannot be changed to “Optical
Center”.

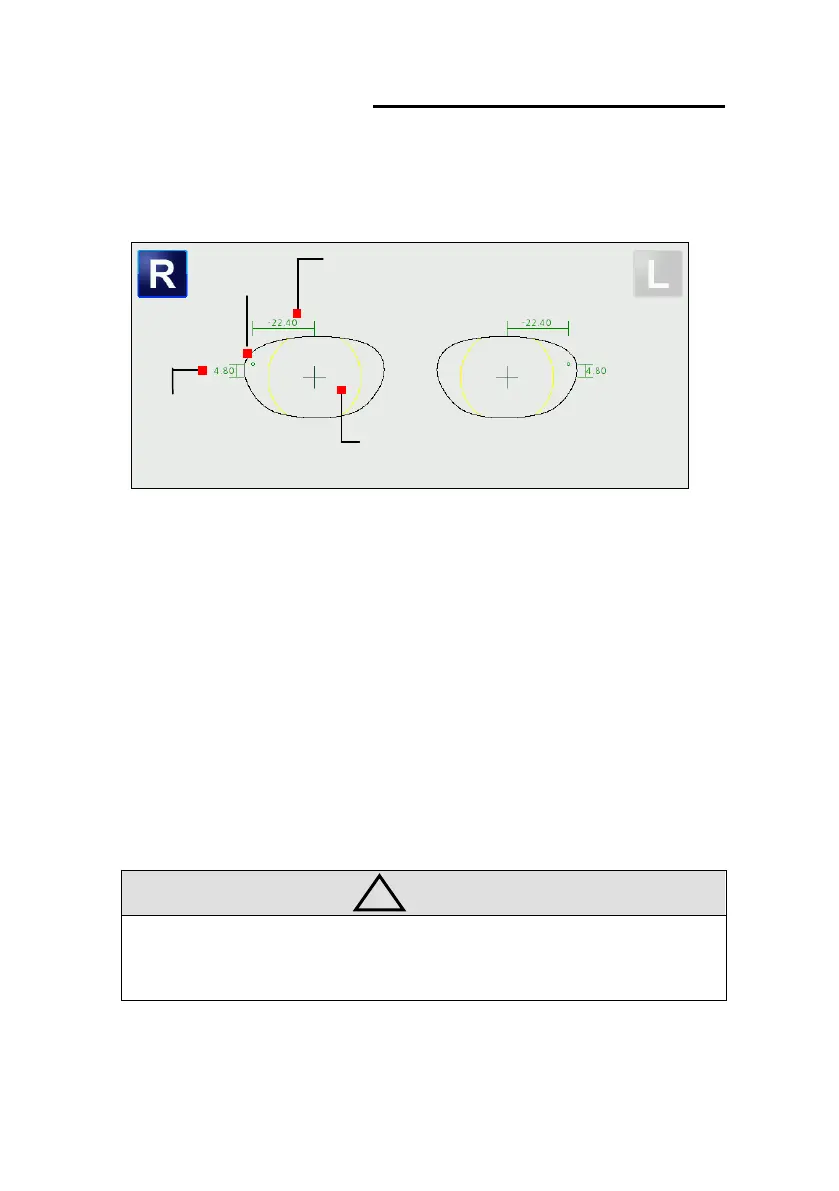

Horizontal Position
Vertical Position
Drilling Impossible Area
Hole
!
NOTE
