3.5
BLADE BRUSH ADJUSTMENT
The blade brush is properly set when the machine leaves the
factory with the blade brush adjusted for maximum life of the
brush. This setting places the ends of the blade brush wires so
as to contact the blade at the bottom of the blade gullets. The
plastic wheel that is driven by the drive wheel face should be
held against it with the minimum force that is necessary. As the
blade brush wears it is necessary to periodically adjust it closer
to the blade or if a new brush is installed, further away from the
blade.

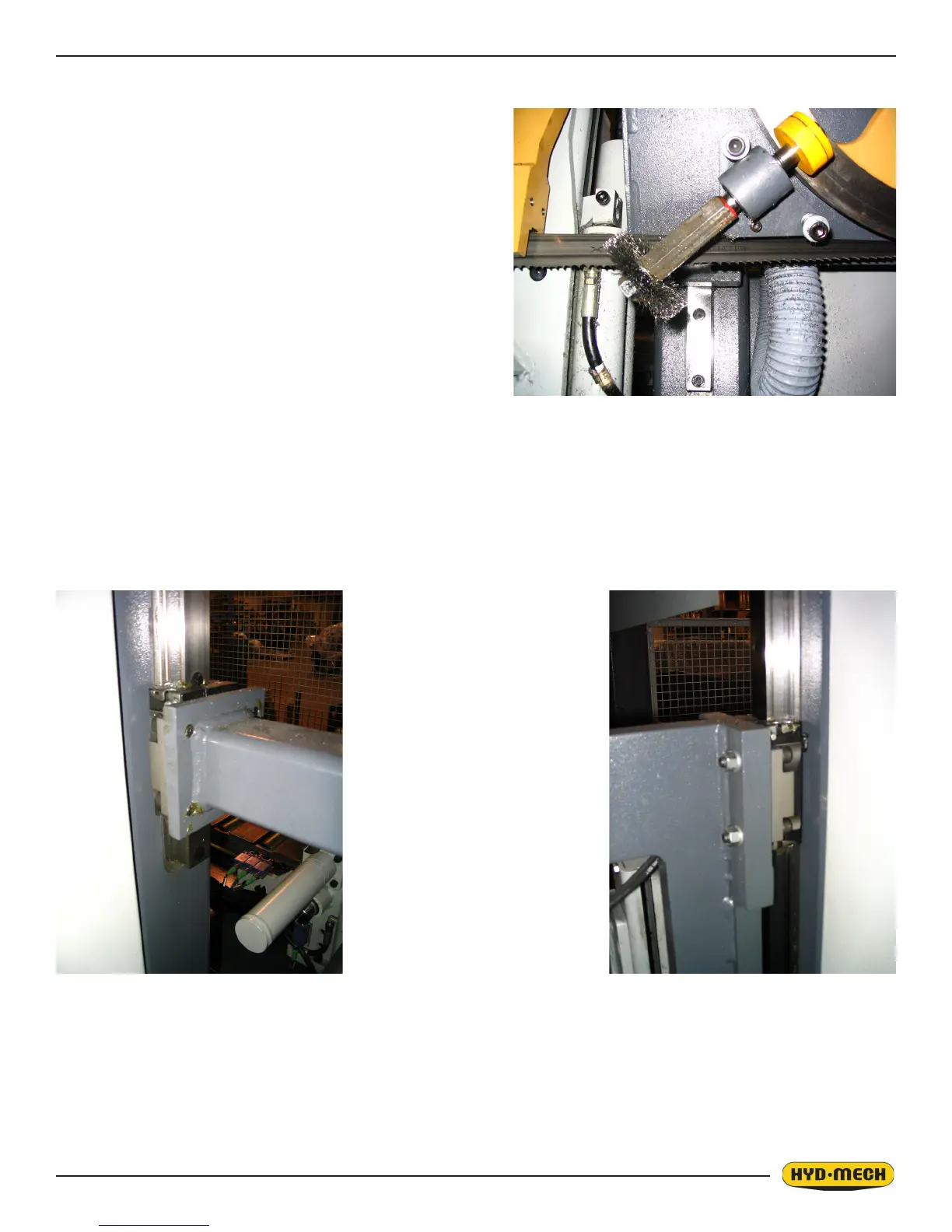

As shown, there are two springs on socket head screws
holding the brush assembly against the blade. There is also
an adjusting socket set screw with a hex nut on it. Loosen the
hex nut with a 9/16” wrench and turn the set screw counter
clockwise with a 3/16” allen key. This will move the brush closer
to the blade. Adjust the set screw so that the brush cleans to the
bottom of the blade gullets and tighten the hex nut.
If the brush gets worn to approximately 70% of its original 3”
diameter it should be replaced. A brush may be purchased from you HYD-MECH dealer.
LUBRICATION
The H10A was designed to minimize the maintenance requirements. We recommend that this periodic lubrication be done
once a month using any general purpose grease. In addition to the grease points shown, vise jaw guides, in-feed rollers,
and bundling assemblies require greasing.
