Hyd-Mech H10A - Hydraulic System Section

5.1
SECTION 5 HYDRAULIC SYSTEM
The H10A hydraulic system does not require any special work on a new machine before its start up. The hydraulic tank
is lled with TEXACO RANDO HD 46 hydraulic oil and all machine functions have been tested at the factory to ensure
proper operation upon initial start up.
ITEM BALLOON
NUMBER
QTY PART
NUMBER
DESCRIPTION
1 1 H10SV-C4-00 HEAD CYLINDER
2 2 H10SV-C21-00 VISE CYLINDER
3 0(2) H10-C23-00B BUNDLING CYLINDER (option)
4 1 DDF1-0-00A DDF VALVE
5 8 1 362748 DCV3P-AB-T, HEAD CONTROL VALVE
6 9a, 9b 2 362749 DCV3P-AB-C , VISE VALVE
7 7 1 362747 DPCH-1, DOUBLE PILOT CHECK VALVE
8 2 1 362752 PUMP
9 3 1 362753 MOTOR 240 VAC, 1Hp, Three phase
10 1 362756 FILTER ELEMENT
11 0(1) 362758 VARIABLE VISE PRESSURE BLOCK (VVP option)
12 0(1) 363145 PRESSURE REDUCING VALVE (VVP option)
13 5 0(1) 360745 PRESSURE GAUGE (VVP option)
14 1.4 1 362758 OIL SIDE GAUGE
15 0(2) 363205 BALL VALVE (bundling option)
16 0(4) 363220 FLOW CONTROL VALVE (bundling option)

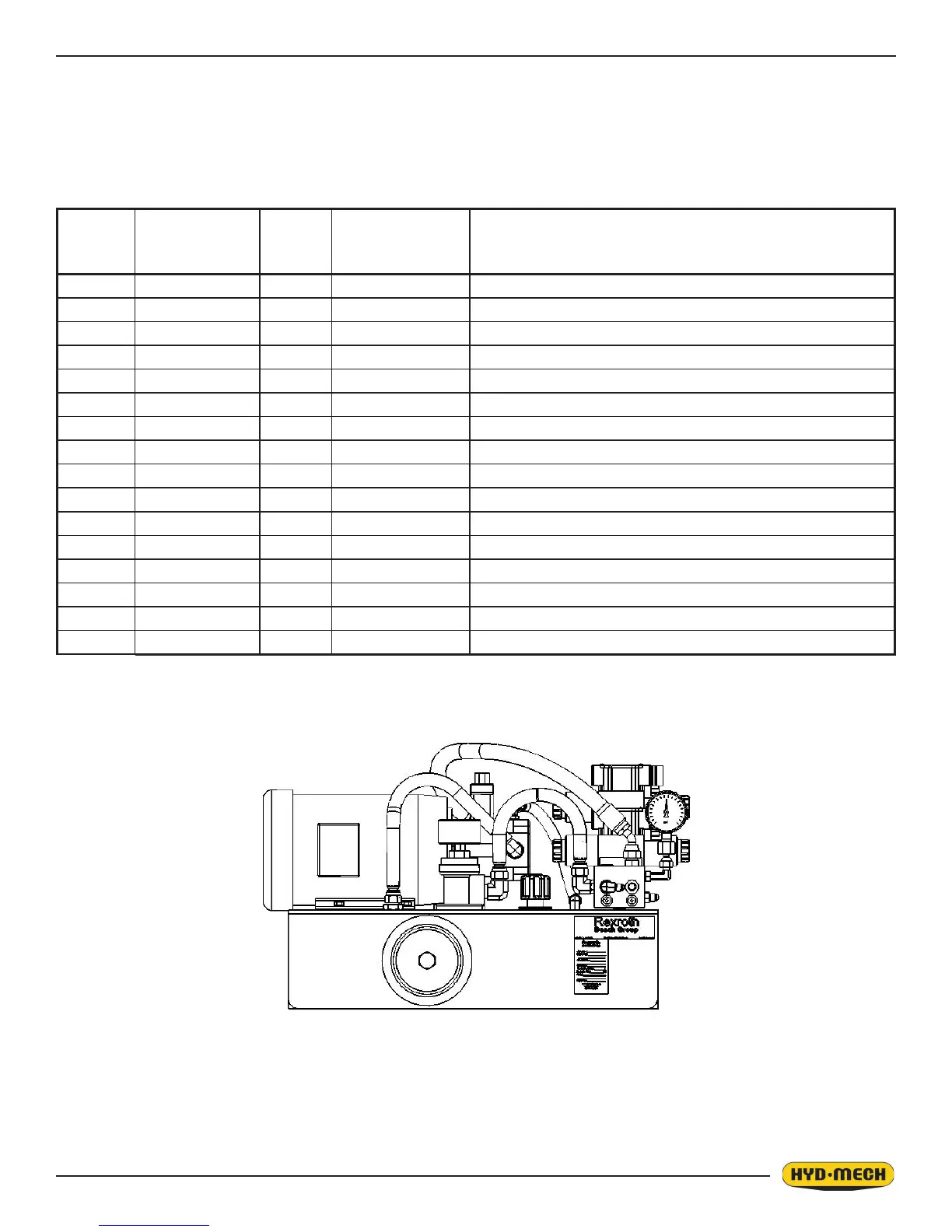

Hydraulic power pack
