Hydrafeed MSV 65 - 7 Alarm List

126

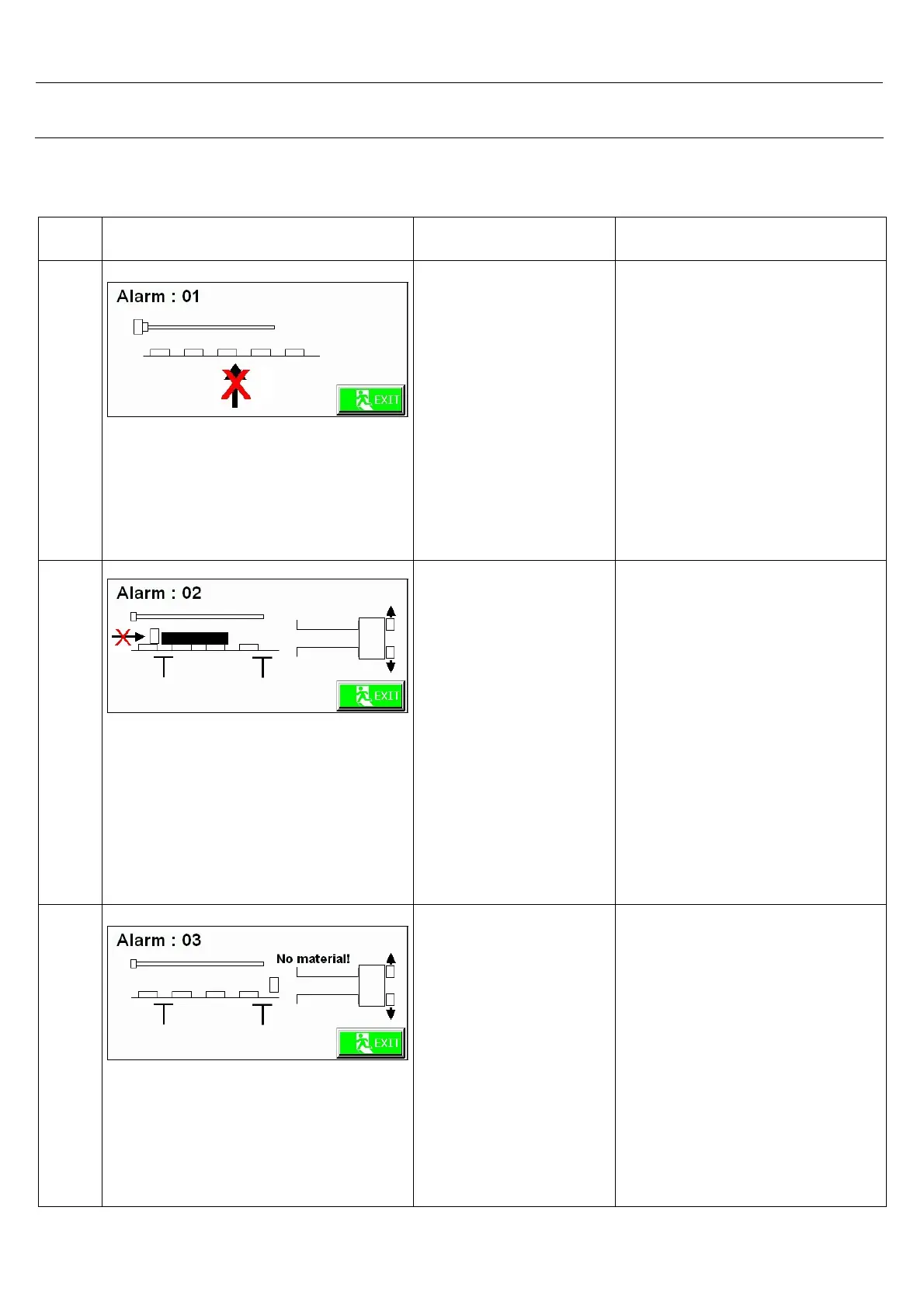

7. Alarm List
7. Alarm List
Alarm
No.
Alarm Picture Cause Action
1
You can’t move the loading
mechanism up.
Loading mechanism
has a problem.
Check loading motor and
Ballscrew. Because there is an
overload.
See 11-1 Mechanism Drawing
:
(1) Item3 : Loading motor
(2) Item4 : Ballscrew
(Drawing NO : S24403-000X)
2
You can’t move the flag forward.
Pushing mechanism
has a problem.
Check gears and belt. Because
there is an overload.
See 11-1 Mechanism Drawing
:
(1) Item2 : Servo motor
driving gear
(2) Item3 : Servo motor driven
gear
Drawing NO : S04201-000X
(3) Item11 : Belt T5 20mm
1.5M: S24201-001X
1.2M: S24201-002X
3
No material.
Rack is empty. Put new bars on the rack.
