4. System Setup

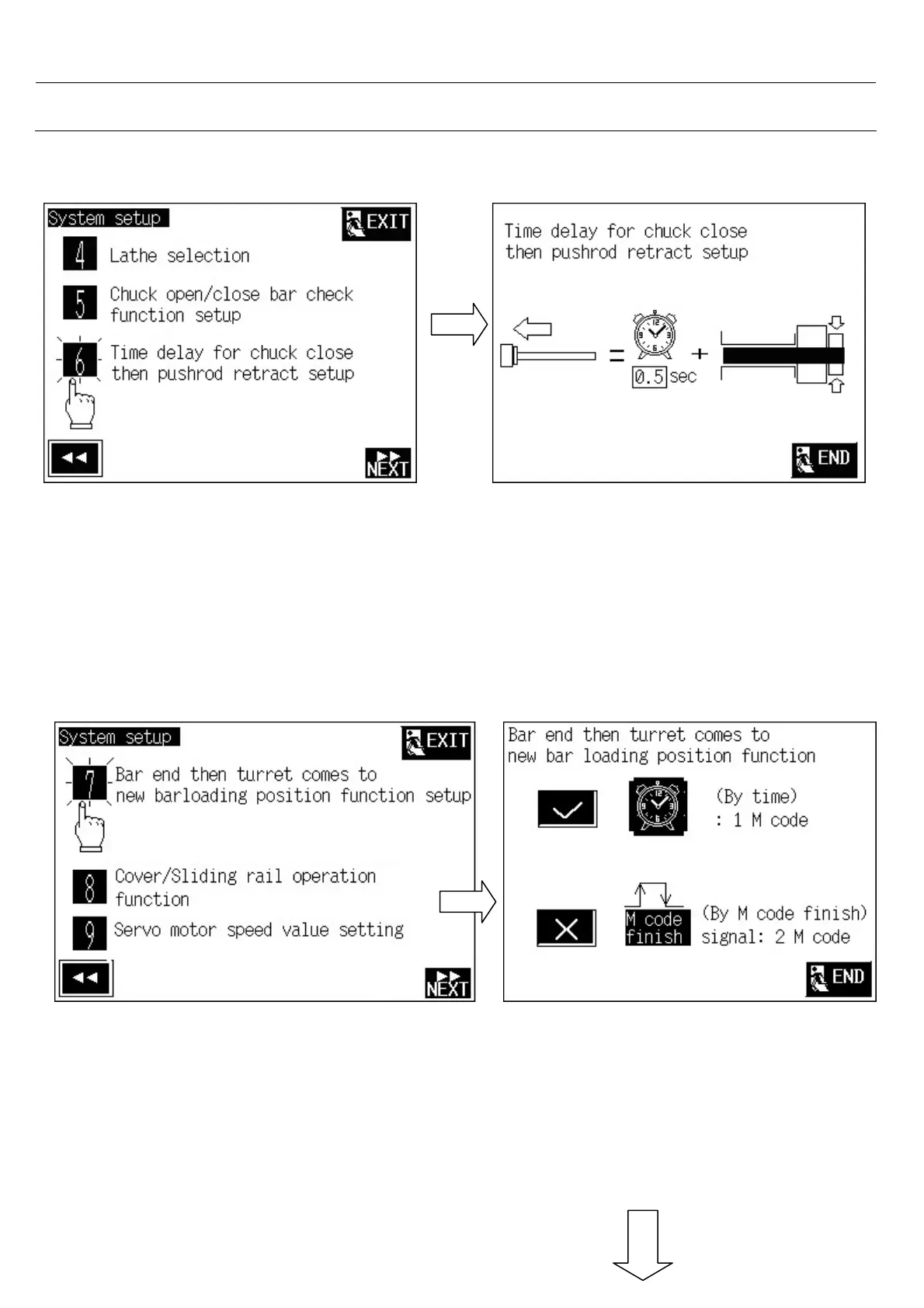

4.7 Time delay for chuck close then Pushrod retract setup
4.8 Bar end then Turret comes to new bar loading position function
setup
- You can set time delay for chuck close
then pushrod go back.
- Setting range : 00 sec to 5.0 sec
Select 6.< Time delay for chuck close
then pushrod retract setup>
Select 7.< Bar end then turret comes to
new bar loading position function setup >
You can choose turret come to new bar
loading position by time or by M code
finish signal
Note: By time function
T1 : Time for ejecting remnant.
T2 : Time for turret to move in position.
