Hydrafeed MSV 65 - Spindle Length Setup; Clamping Length Setup

28
3. User Setup

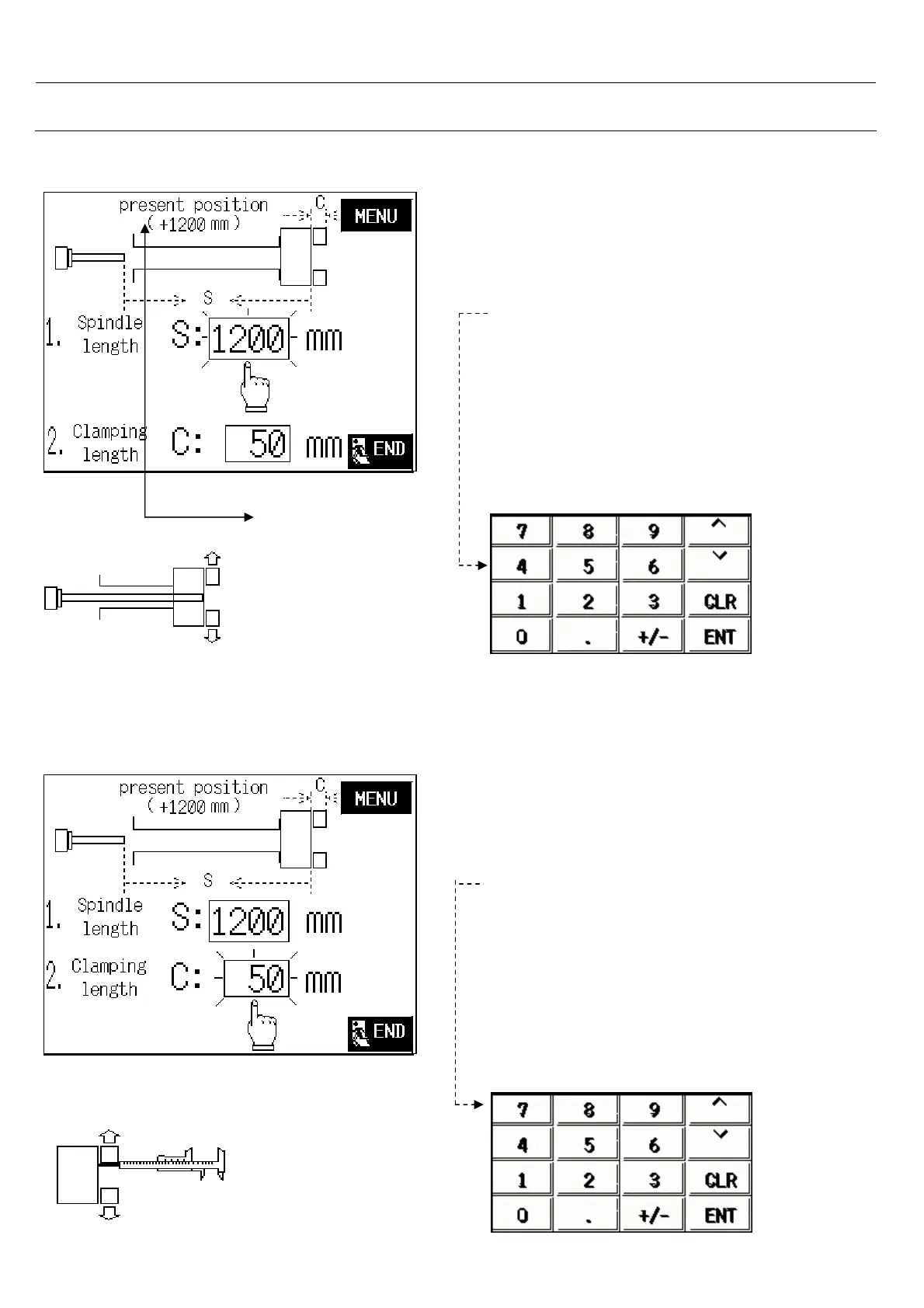

3.4.1.1 Spindle length setup
3.4.1.2 Clamping length setup
Present position
(+1200 mm)
- Push the pushrod to the rear of chuck,
than see present position value.
- Touch on S: numeric
- Seems a numerical display.
- If present position=1200 mm Write
S length= 1200 and press<ENT>
- S: Distance between the front of
pushrod and the rear of chuck.
- Measure the clamping length of the chuck.
- Touch on C: numeric
- Seems a numerical display.
- If distance=50 mm Write
C length= 50 and press<ENT>
- C: Distance between the front of chuck
jaws and the rear of chuck.
