3. User Setup
3.8 Chucking mode
If you select chucking mode means not using bar feeder.
(1)Bar feeder auto cycle is not allowed.
(2)Pushrod has to be at "Reference position" before bar feeder auto mode signal is "ON".
(3)Touch “auto cycle “ button will appear ?? 29 : (Bar feeder now in chucking mode.)
(4)If chuck mode function is on , pushrod is not in reference position will appear ?? 30:
(pushrod not in reference position), let pushrod back to reference position
?? 30 will disappear.
(5) If chuck mode function is on , Cover is open will appear ?? 31: (Cover is open), Close the
cover ?? 31 will disappear.
(6) If chuck mode function is on , Sliding rail is unlocked will appear ?? 33 Sliding rail is unlocked,
Move the bar feeder to the locked position. ?? 33 will disappear.

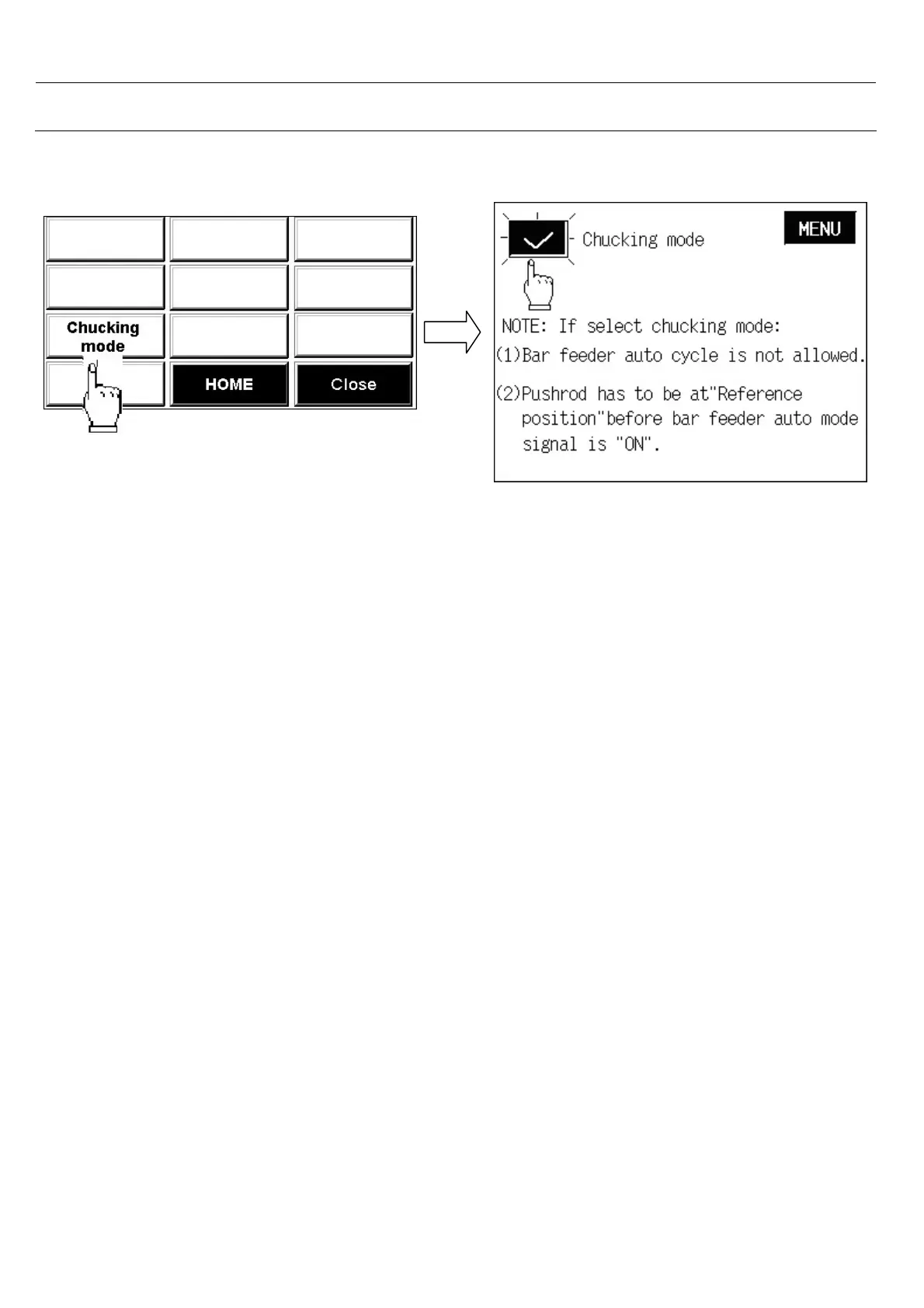

Select .< chucking mode >
