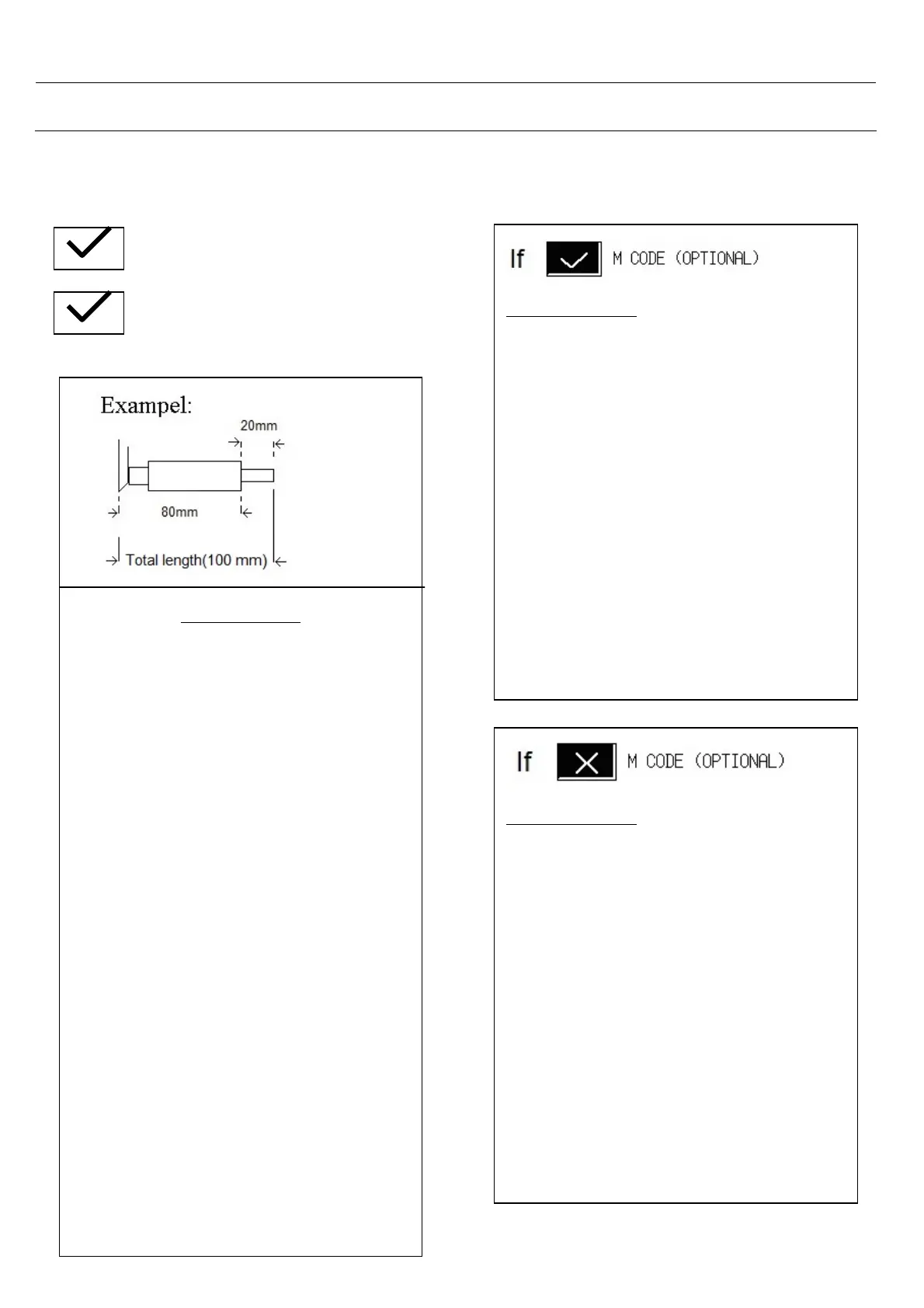

3. User Setup
2.Multiple fed components lathe job program (Duble spindle) feed to turret + Sub spindle pull
If interface select
Chuck open
M code (feed command)
Eject new bar with Turret :
(Main program)
Turret come to position 1 ( 20mm position )
Chuckopen
M code(feed command)
Chuck close
Cutting (1)
Sub spindle Chuck open
Sub spindle go to correct position
Sub spindele Chuck close clamping the bar
Chuck open
sub spindele pull bar to position 2( 80mm
position)
M code(feed command)
Chuck close
cutting (2)
/ M98 Pxx (go tol sub program)
M99 (return)
Pxx (Sub program)
Chuck open
M code (optionan) bar change
W – 100
(Turret come to loading position)
M code (optionan) bar change
Chuck close
Part off
M99 ( go to main program
)
Pxx (Sub program)
Chuck open
M code(feed command)
W – 100
(Turret come to loading position)
M code(feed command)
Chuck close
Part off
M99(hopp till huvudprogram)
