3. User Setup
D
Normal feedin
obs

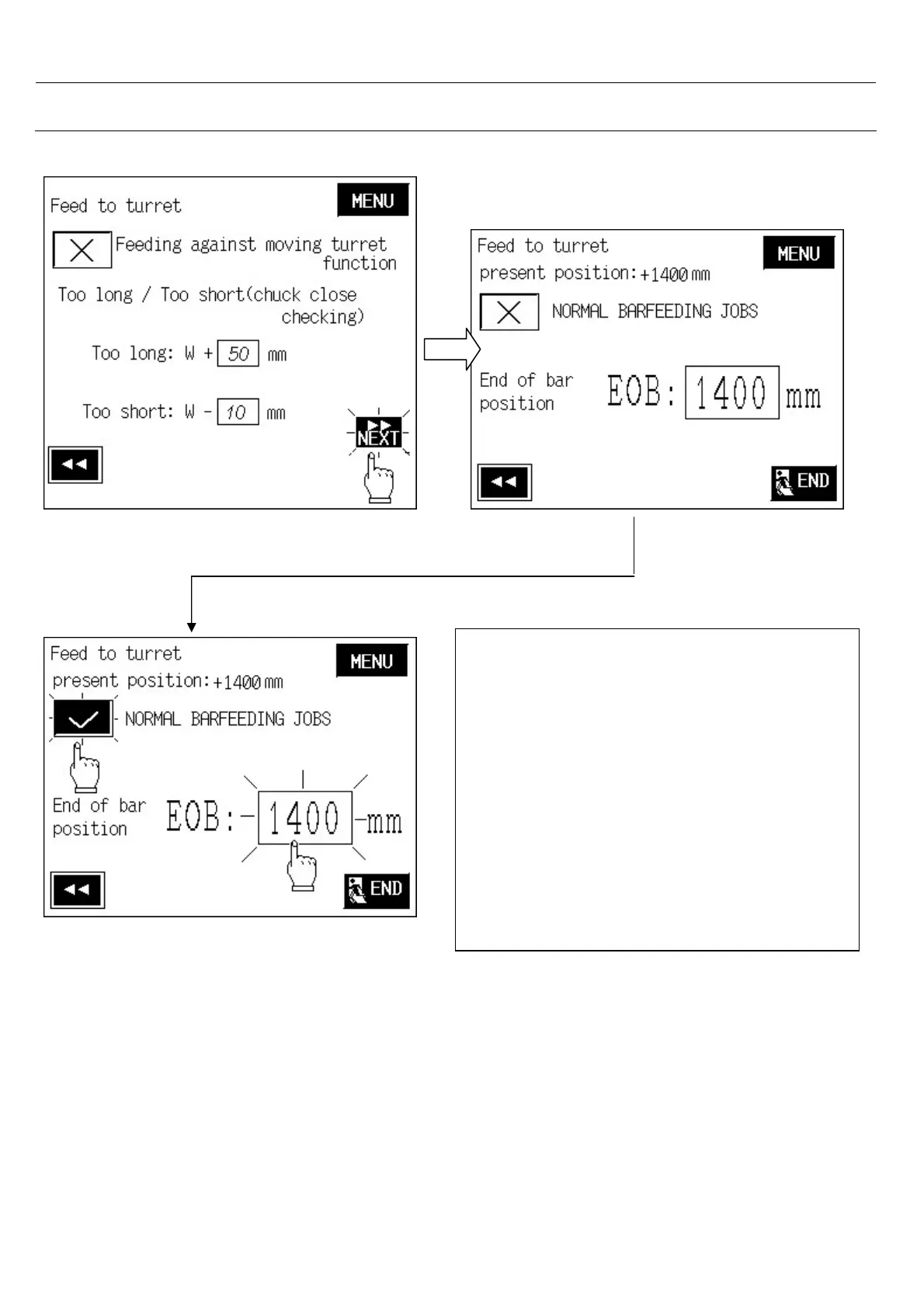

Normal feeding jobs:
1. Lathe chuck open and M code barfeeder
push bar to stop, when material at stop
chuck close lathe start machining .
2. EOB (End of bar position )
= S value (spindle length) – W value
(Component length)
3. IF Pushrod push the bar over than S
value, alarm 39 will appear: End of bar
position setting too long .
