HySpeed HT2000 Instruction Manual 6-13
OPERATION
23

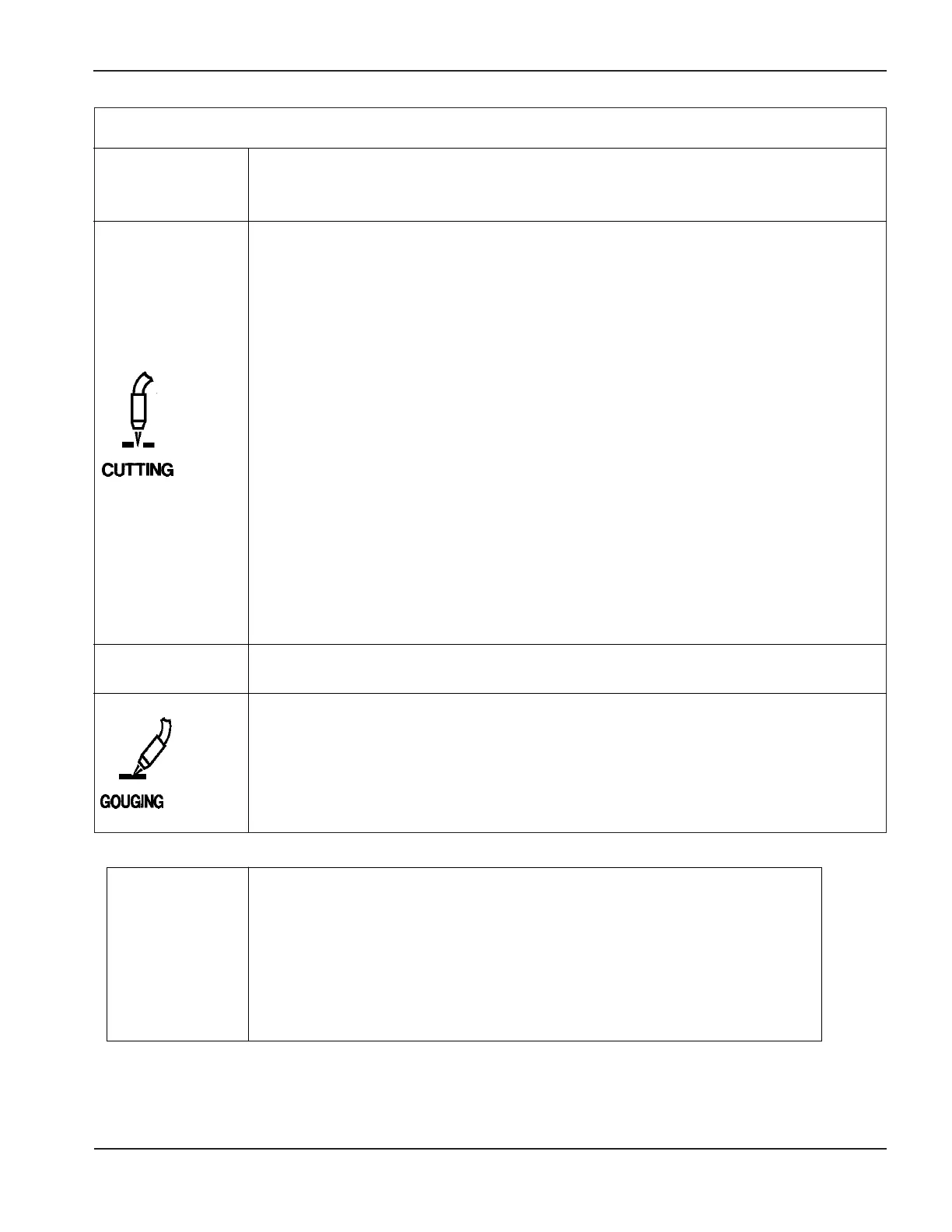

CUT CHART AND CONSUMABLE PARTS INDEX
Plasma Gas/ Retaining Swirl
Metal Amps Shield Gas Shield Cap Nozzle Ring Electrode Page
Mild
Steel
Mild
Steel
Mild
Steel
Stainless
Steel
Stainless
Steel
Aluminum
Aluminum
200 HySpeed O
2
/ Air 220239 220242 220237 220236 220235 6-14
200 O
2
/ Air 020424 120837 020605 120833 120667 6-15
200 Air / Air 020424 120837 020608 020679 120667 6-16
200 N
2
/ CO
2
020424 120837 020608 020607 020415 6-17
100 Air / Air 020448 120837 020611 020607 120547 6-18
100 O
2
/ Air 020424 120837 020690 020613 120547 6-19
50 O
2
/ O
2
120186 120185 120182 120179 120178 6-20
200 Air / Air 020424 120837 020608 020679 120667 6-21
200 N
2
/ Air 020424 120837 020608 020607 020415 6-22
200 N
2
/ CO
2
020424 120837 020608 020607 020415 6-23
200 H35 / N
2
* 020602 120837 020608 020607 020415 6-24
100 Air / Air 020448 120837 020611 020607 120547 6-25
100 H35 / N
2
* 020448 120837 020611 020607 020415 6-26
40 Air / Air 020688 020423 020689 020613 120667 6-27
200 Air / Air 020424 120837 020608 020679 120667 6-28
200 N
2
/ Air 020424 120837 020608 020607 020415 6-29
200 N
2
/ CO
2
020424 120837 020608 020607 020415 6-30
200 H35 / N
2
* 020602 120837 020608 020607 020415 6-31
100 Air / Air 020448 120837 020611 020607 120547 6-32
100 H35 / N
2
* 020448 120837 020611 020607 020415 6-33
40 Air / Air 020688 020423 020689 020613 120667 6-34
200 O
2
/Air 120260 120837 120259 120833 120258 6-35
200 Air / Air 020485 120837 020615 020607 120667 6-36
200 H35 / N
2
* 020485 120837 020615 020607 020415 6-36
200 H35 / N
2
* 020485 120837 020615 020607 020415 6-36
BEVEL
CUTTING
* Argon-Hydrogen Manifold required. See Section 7 for installation and operation with argon-hydrogen manifold.
** Do not use the water muffler when cutting with argon-hydrogen (H35)!
Water Muffler cannot be used with the stainless steel torch
Note: If the Command THC or other ohmic contact sensing device is NOT in use, retaining caps with no IHS tab: 020423
clockwise; 020955 counterclockwise can be used for all cutting currents except 50A; 120185 for 50A cutting only.
For Hyspeed
200A O
2
cutting only; Use retaining cap part # 220238 (clockwise cutting) & 220241 (counter-clockwise cutting).
200 HySpeed O
2
/ Air 220239 220238 220237 220236 220235
200 O
2
/ Air 020566 020423 020605 120833 120667
100 O
2
/ Air 020566 020423 020690 020613 120547
200 Air / Air 020566 020423 020608 020679 120667
100 Air / Air 020618 020423 020611 020607 120547
200 N
2
/ CO
2
020566 020423 020608 020607 020415
200 N
2
/ Air 020566 020423 020608 020607 020415
Consumables
used with
Hyspeed
HT2000
Water Muffler**
