INSTALLATION
4-32 HySpeed HT2000 Instruction Manual
19

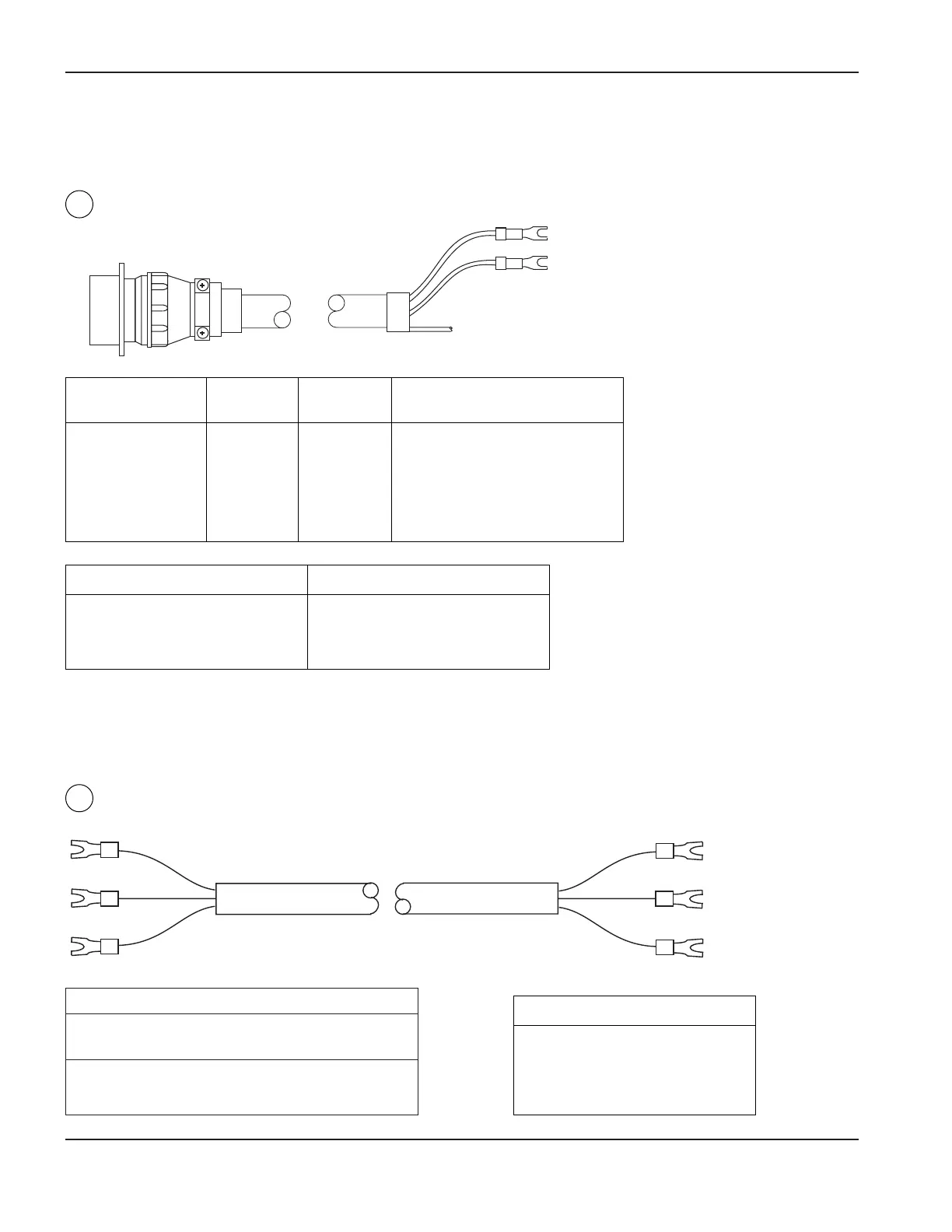

Optional Power Supply Connections
Timer/Counter to Power Supply
Timer/Counter cable – Power Supply to Timer/Counter
Hold Cable Connections (When using Multi-Torch Systems)
If a multi-torch system is being used (more than one power supply), make the following connections at both
power supplies:
Hold Cable Connections – Power Supply 1 to Power Supply 2
Legend – To HT2000 TB3 – Both Ends
Wire Color To HT2000 Function
TB3
– Black 13 Hold Signal
– Red 14 Hold Common
GND Shield 15 Hold Shield
26
27
11X1
Black Black
Red Red
GND GND
From Timer/Counter To HT2000 Color Function
11X1 TB3
1 2 White Starts & Arc time (CON1 Closed)
2 1 Black Starts & Arc time (CON1 Closed)
3 3 Drain Drain
15 5 Red Error Counter (Ramp Down Error)
16 4 Black Error Counter (Ramp Down Error)
12 6 Drain Drain
Part No. Length Part No. Length
023687 10 ft (3 m)
023692 25 ft (7.6 m)
023758 38 ft (12 m)
023693 50 ft (15 m)
023694 75 ft (23 m)
023695 100 ft (30 m)
023696 150 ft (46 m)
Part No. Length
023340 15 ft (4.5 m)
023341 25 ft (7.6 m)
023342 50 ft (15 m)
023343 100 ft (30 m)
023344 150 ft (46 m)
