Electrical Configurations
Prior to connecting the power cable, ensure that the 240 / 480V power supply is configured to the required
input line voltage as described below. If for any reason the voltage must be re-configured after the power
supply has been powered up, observe the following warning:
240/480V Linkboard Configurations
• The 240/480-volt units are shipped from the factory linked for 480-volt operation. The links must be moved
for 240-volt operation. Ensure that the linkboard is configured properly to the appropriate voltage line (see
Figure 3-1).

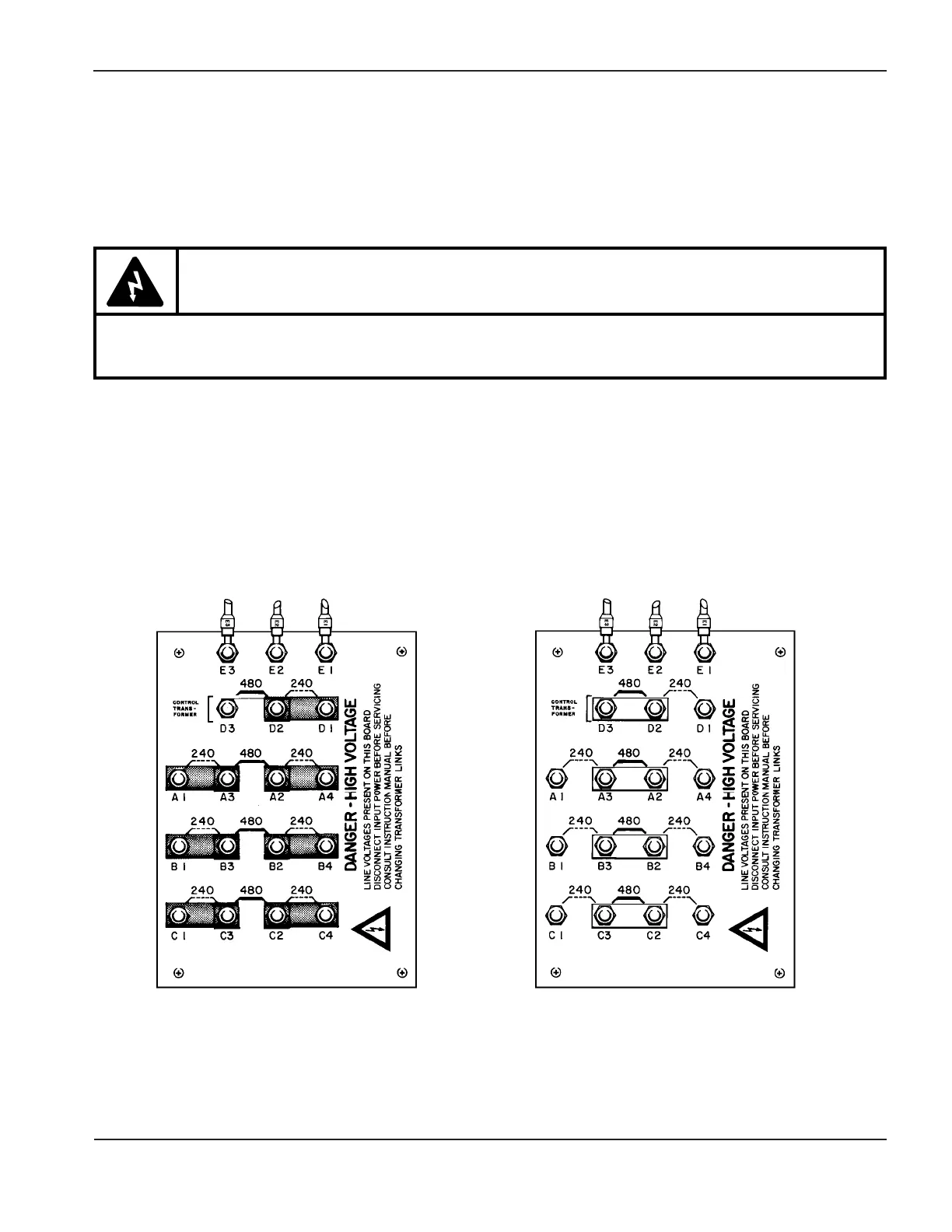

Figure 3-1 Dual Voltage 240/480-Volt Linkboard Configurations
WARNING
Danger: High Voltage. Line voltage is present in the power supply unless disconnected. Always
disconnect input power at the line disconnect switch before servicing.
