Hypertherm HySpeed HT2000 User Manual

INSTALLATION
4-6 HySpeed HT2000 Instruction Manual
19
Part No. Length Part No. Length
023403 15 ft (4.6 m)
023404 25 ft (7.6 m)
023405 50 ft (15 m)
023406 75 ft (23 m)
023407 100 ft (30.5 m)
023408 150 ft (46 m)
023644 200 ft (62 m)
Part No. Length Part No. Length
023631 25 ft (7.6 m)
023632 50 ft (15 m)
023633 75 ft (23 m)
023634 100 ft (30.5 m)
023635 150 ft (46 m)
023652 200 ft (62 m)

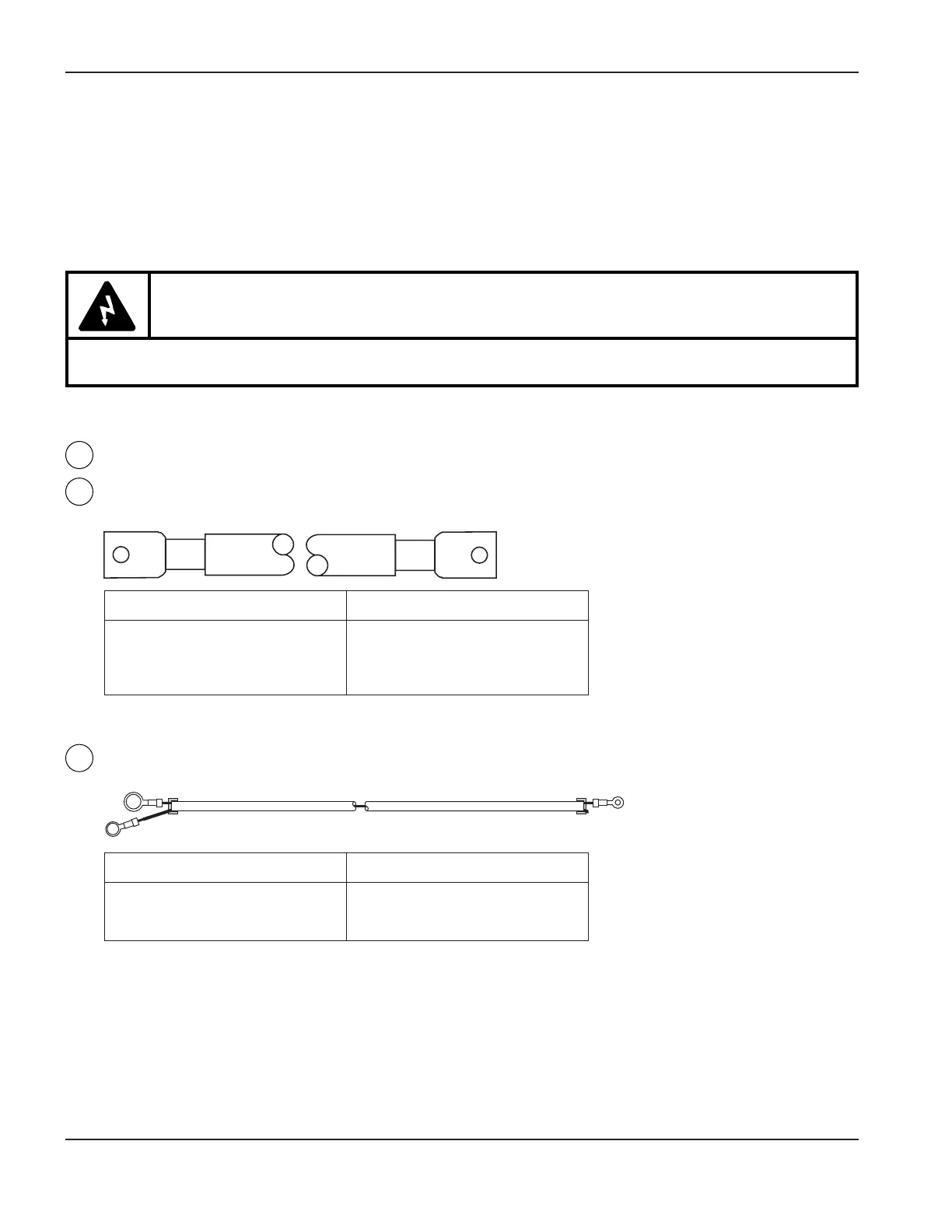

Negative Lead – Power Supply (PS) to RHF Console
Positive Lead – PS to Work Table
1
2
Pilot Arc lead – PS to RHF Console
3
Power Supply Connections
Match numbers in figures on right-hand pages with numbers of cables and hoses on left-hand pages
to make connections. Any special instructions for installation are explained on the left-hand page.
The cable and hose part numbers on these pages represent the most commonly used lengths. For additional
lenghts, see Section 9 or call Hypertherm.
WARNING
All power must be turned OFF before performing installation!!
