SPECIFICATIONS
2-6 HySpeed HT2000 Instruction Manual
22
17.75 (450.85)
11.75 (298.45)
3.62 (91.92)
2" (50 mm) or
1.75" (44 mm)
See Section 9
2.38
(60.48)
45°
Power Supply (cont.)
Dimensions and Weight:
Width..........................................................................28-1/4" (71 cm)
Height ........................................................................35-1/2" (90 cm); 40-3/4" (104 cm) on CE units
Depth ........................................................................41-1/4" (104 cm)
Weight........................................................................780 pounds (351 kg); 800 pounds (363 kg) on
CE units
Cooling ......................................................................Forced Air (Class F)
Torch Coolant Tank Capacity ....................................2.9 gallons (11 liters)

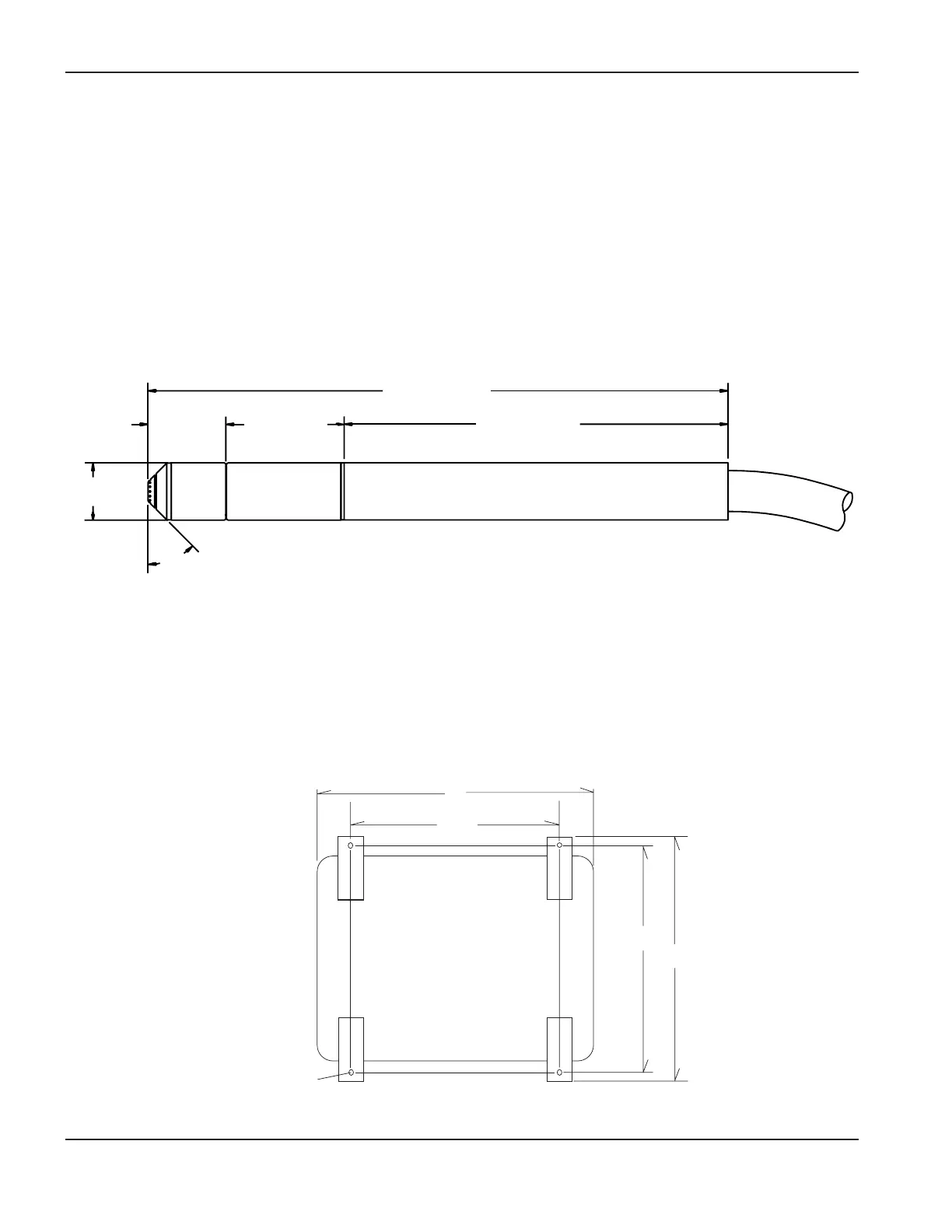

Figure 2-1 Mounting Dimensions – RHF Console
Maximum cutting thickness........................................2 inch (50 mm)
Maximum current at 100% duty cycle........................200 amps
Plasma Gas Flow ......................................................Refer to the Cut Charts in the Operation
Shield Gas Flow ........................................................section for specific gas requirements.
Water coolant flow rate ..............................................0.8 gpm (3.0 l/min)
Weight........................................................................2-1/2 pounds (1.13 kg)
Remote High Frequency Console (#073067)
HySpeed HT2000 Machine Torches (#128381,128367 or 128141)
16"
12-3/8"
13-5/8"
14-5/8"
5/16"
dia. (4)
Machine Torch (shown without off-valve assembly)
