Hypertherm HySpeed HT2000 - Front Panel Controls and Indicators

OPERATION: ARGON-HYDROGEN MANIFOLD
7-2 HySpeed HT2000 Instruction Manual
19
Front Panel Controls and Indicators (Fig. 7-1)
• Flowmeter Adjust Valve (MV1)
Adjusts argon-hydrogen plasma gas flow rate % in Test/Preflow mode. Preflow plasma gas flow rate
percentages are specified in Cut Charts.
• Argon-Hydrogen Flowmeter (FM1)
Indicates the argon-hydrogen plasma gas flow rate %. Flow rates for argon-hydrogen are specified in
Cut Charts.
Flowmeter Adjust Valve (MV1)
Argon-Hydrogen Flowmeter (FM1)

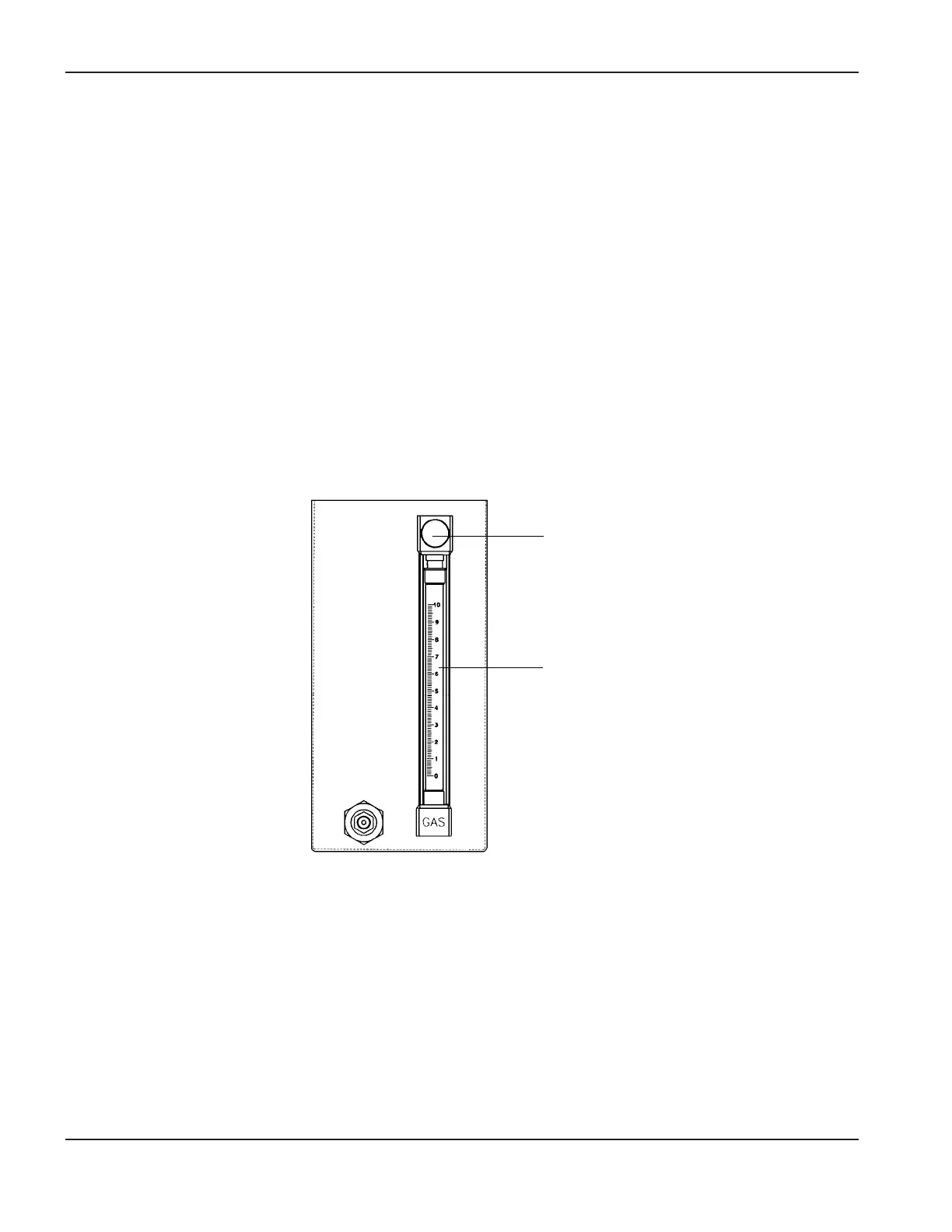

Figure 7-1 Argon-Hydrogen Manifold Front Panel Controls and Indicators
