PARTS LIST

HySpeed HT2000 Instruction Manual 9-13

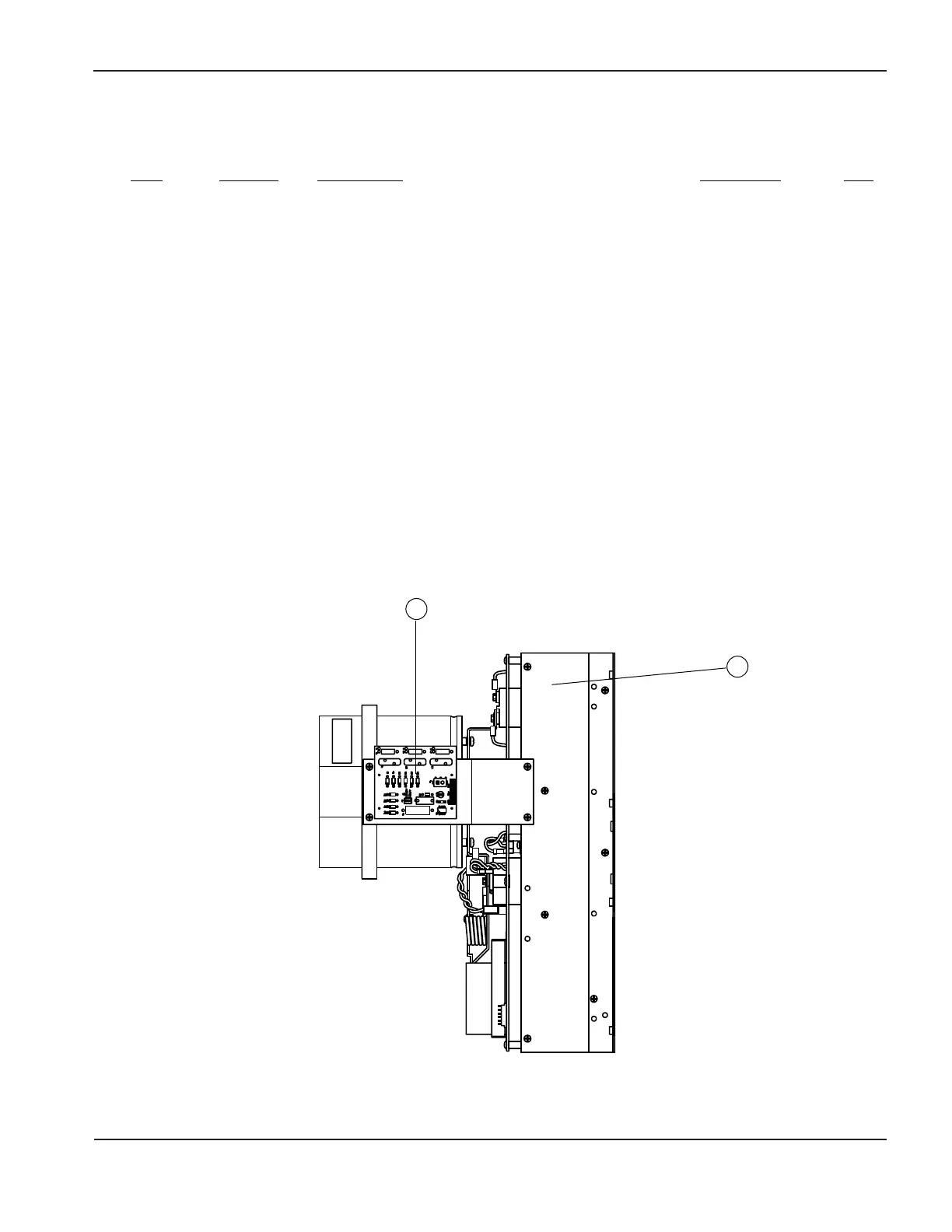

Figure 9-6A Chopper CH2 – Right Side

HT2000 Power Supply  : Front Wall Inside

Part

Item Number Description Designator Qty.

1 129118 CH130 CE/LVD Chopper SA CH1 1

005199 Temperature Switch 82°C TSW1 1

2 129118 CH130 CE/LVD Chopper SA CH2 1

005199 Temperature Switch 82°C TSW2 1

3 008509 Bushing 1.75 MTG X 1.37 ID 3

4 041564 PCB Assy:Phase Loss Detection Circuit 1
