PARTS LIST
HySpeed HT2000 Instruction Manual 9-5
24
HT2000 Power Supply  : Front Panel
Part
Item Number Description Designator Qty.
1 001233 Panel, HT2000 Front 1
2 129307 Fan SA:225CFM M3 1
027080 Fan:225CFM 120VAC 50-60HZ
027568 Fan Guard:6.375 Dia
3 129307 Fan SA:225CFM M2 1
027080 Fan:225CFM 120VAC 50-60HZ
027568 Fan Guard:6.375 Dia
4 129308 Fan SA:450-550CFM M4 1
027079 Fan:450-550CFM 120VAC 50-60HZ
027567 Fan Guard:8.75 Dia
5 041762 PCB Assy: HT2000 ControI II PCB2 1
6 041276 PCB Assy: HT2000 Anlg PCB3 1
7 041246 PCB Assy: Relay, HD1070 / HT2000 PCB4 1
001566* Panel:HT2000 Front Filter 1
001567* Cover:HT2000 Front Filter Panel 1
027441* Filter:24 X 24 X 2 Fiberglass air 1
* Items not shown in Figure 9-1

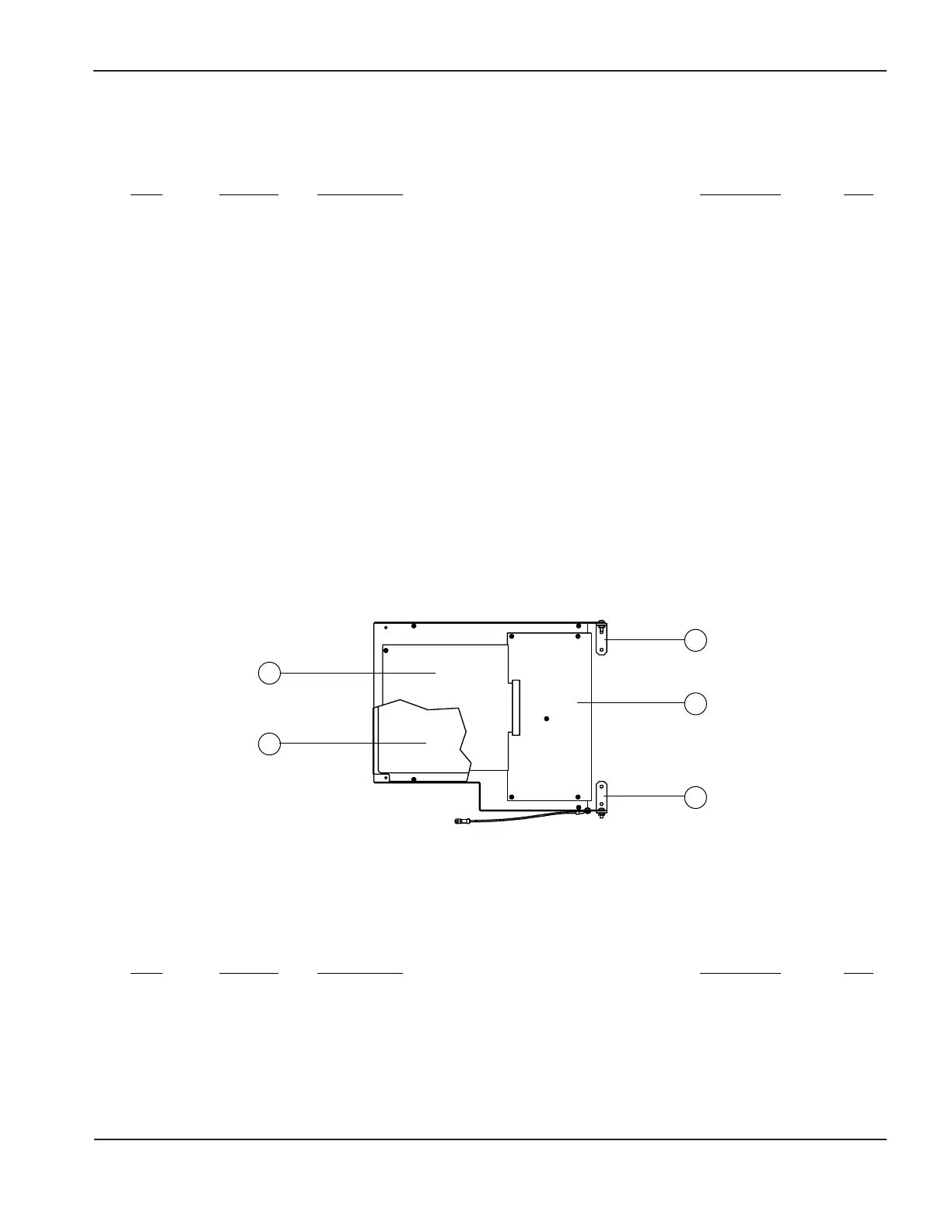

Figure 9-1A HT2000 Power Supply – THC Assembly
HT2000 Power Supply  : THC Assembly (optional)
Part
Item Number Description Designator Qty.
029697 HT2000 THC SA
9 001297 Cov: HT2000 THC Dust 1
10 004338 Hinge - THC Pan, HT2000 2
11 041294 PCB Assy: HT2000 THC Mother PCB9 1
12 041186 PCB Assy: HT2000 Torch Hght Cntrl PCB10 1
9
10
10
11
12
