PARTS LIST
9-48 HySpeed HT2000 Instruction Manual
19
33
Part No. Length Part No. Length
024043 4 ft (1.2 m)
024341 10 ft (3 m)
024200 15 ft (4.6 m)
024342 20 ft (6.1 m)
024133 25 ft (7.6 m)
024448 35 ft (10.7 m)
024407 45 ft (13.7 m)
024012 50 ft (15.3 m)
024472 60 ft (18.3 m)
024147 75 ft (22.9 m)
024486 85 ft (25.9 m)
024115 100 ft (30.5 m)
024452 110 ft (33.6 m)
024449 115 ft (35.1 m)
024515 120 ft (36.6 m)
024395 125 ft (38.1 m)
024119 150 ft (45.8 m)
024480 170 ft (51.9 m)
024184 180 ft (54.9 m)
024123 200 ft (61 m)

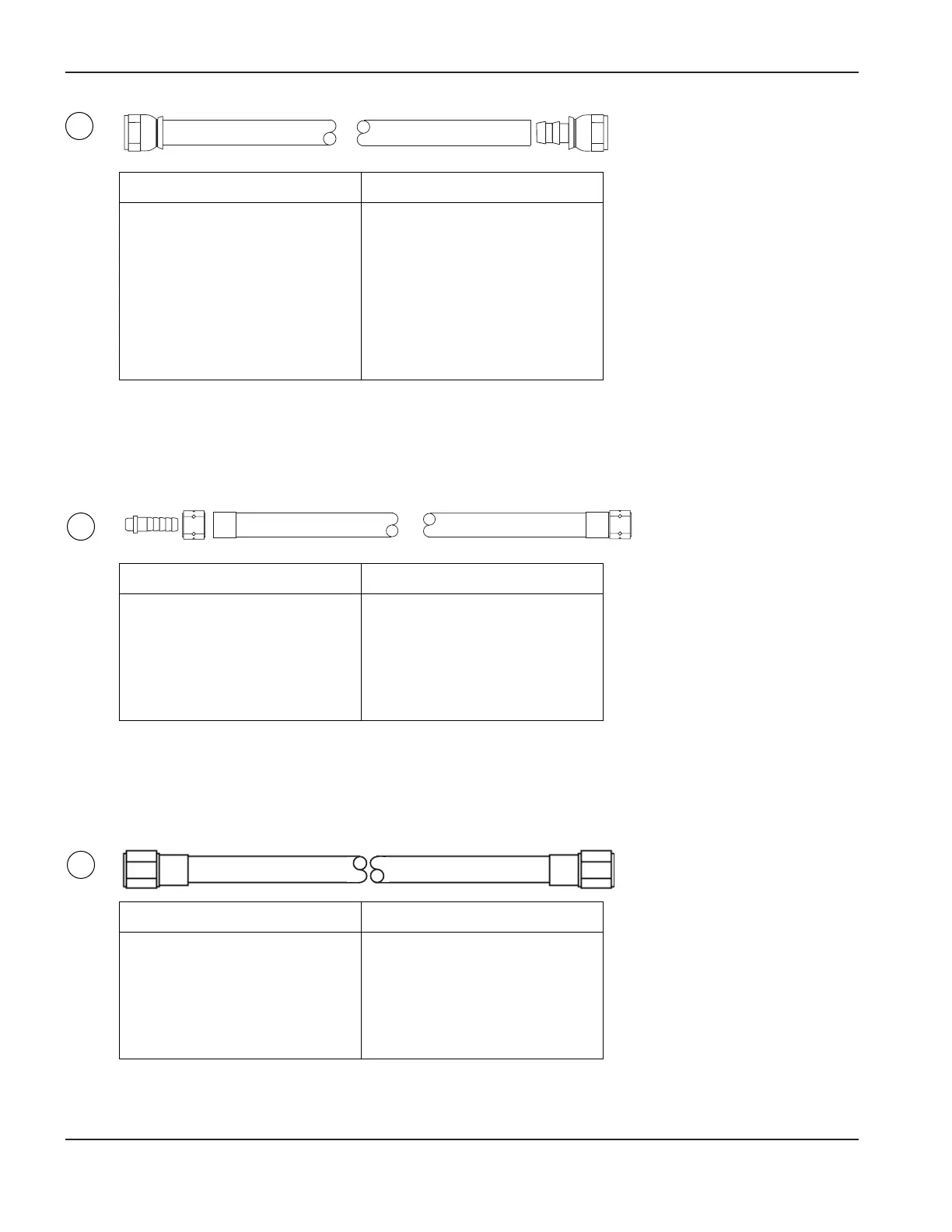

Figure 9-43 Shield Gas Hose – Shield Gas Supply to Gas Console
34
Part No. Length Part No. Length
024348 5 ft (1.5 m)
024313 10 ft (3 m)
024302 15 ft (4.6 m)
024349 20 ft (6.1 m)
024303 25 ft (7.6 m)
024350 30 ft (9.2 m)
024351 35 ft (10.7 m)
024352 40 ft (12.2 m)
024353 45 ft (13.7 m)
024304 50 ft (15.3 m)
024305 75 ft (22.9 m)
024306 100 ft (30.5 m)
024312 150 ft (45.8 m)
Figure 9-44 Shield Gas – Gas Console to RHF Console
35
Part No. Length Part No. Length
024061 5 ft (1.5 m)
024063 10 ft (3 m)
024065 15 ft (4.6 m)
024067 20 ft (6.1 m)
024069 25 ft (7.6 m)
024071 30 ft (9.2 m)
024356 35 ft (10.7 m)
024092 40 ft (12.2 m)
024403 45 ft (13.7 m)
024096 50 ft (15.3 m)
024174 60 ft (18.3 m)
024468 75 ft (22.9 m)
024523 100 ft (30.5 m)
Figure 9-45 Shield Gas Sense Hose – Gas Console to RHF Console
