APPENDIX E
HySpeed HT2000 Instruction Manual e-3
19
2. Unscrew the four filter cover screws and remove cover to access input voltage connections at TB1 (see
Figure e-2).
3. Insert the power cable through the strain relief (see Figure e-1).
4. Connect leads L1 to U, L2 to V, and L3 to W terminals of TB1 (see Figure e-3). Ensure that all connections
are tight to avoid excessive heating.
5. Connect the ground lead to terminal marked PE at TB1 (see Figure e-3).

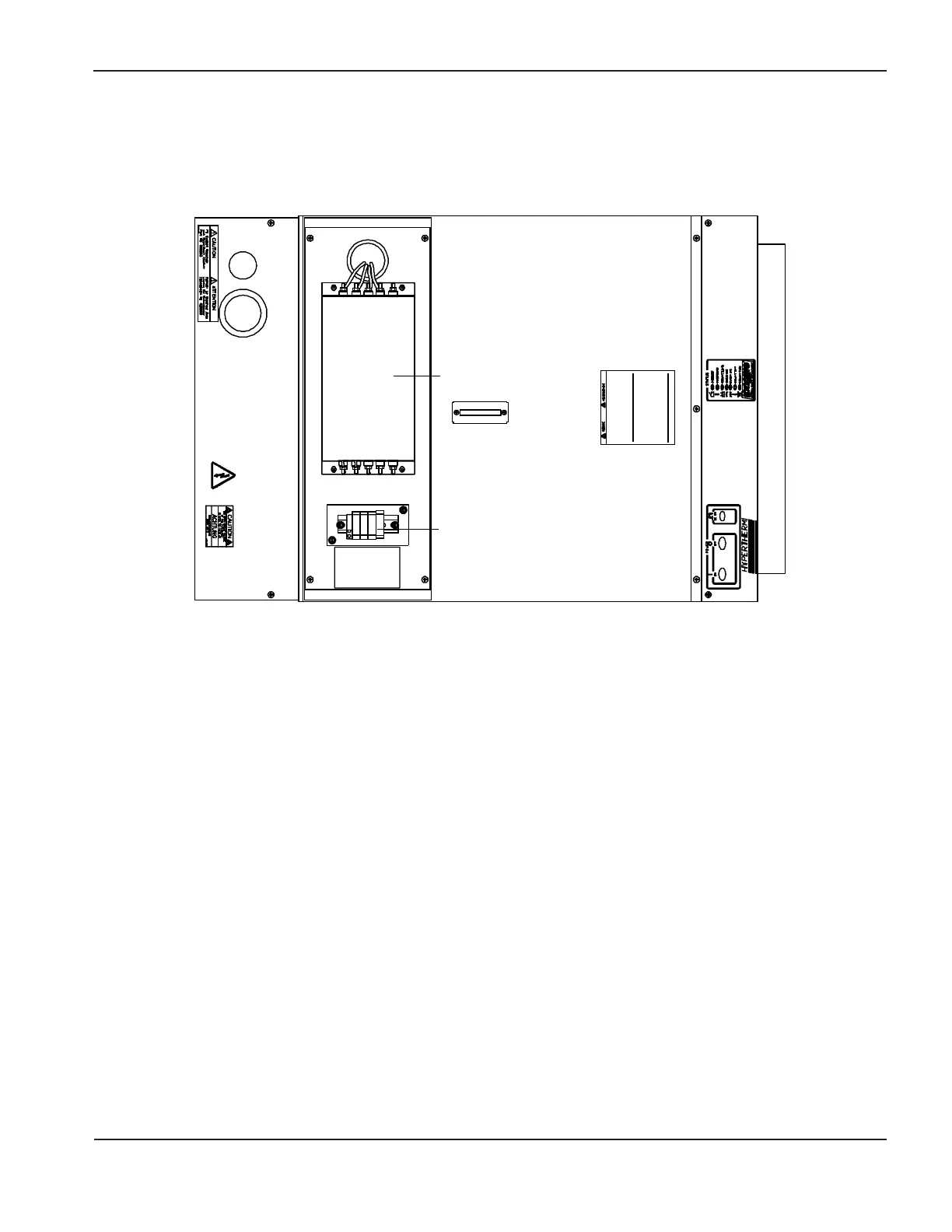

Figure e-2 Power Supply with EMI Filter Cover Off – Top View
Filter
TB1
