INSTALLATION
4-8 HySpeed HT2000 Instruction Manual
19

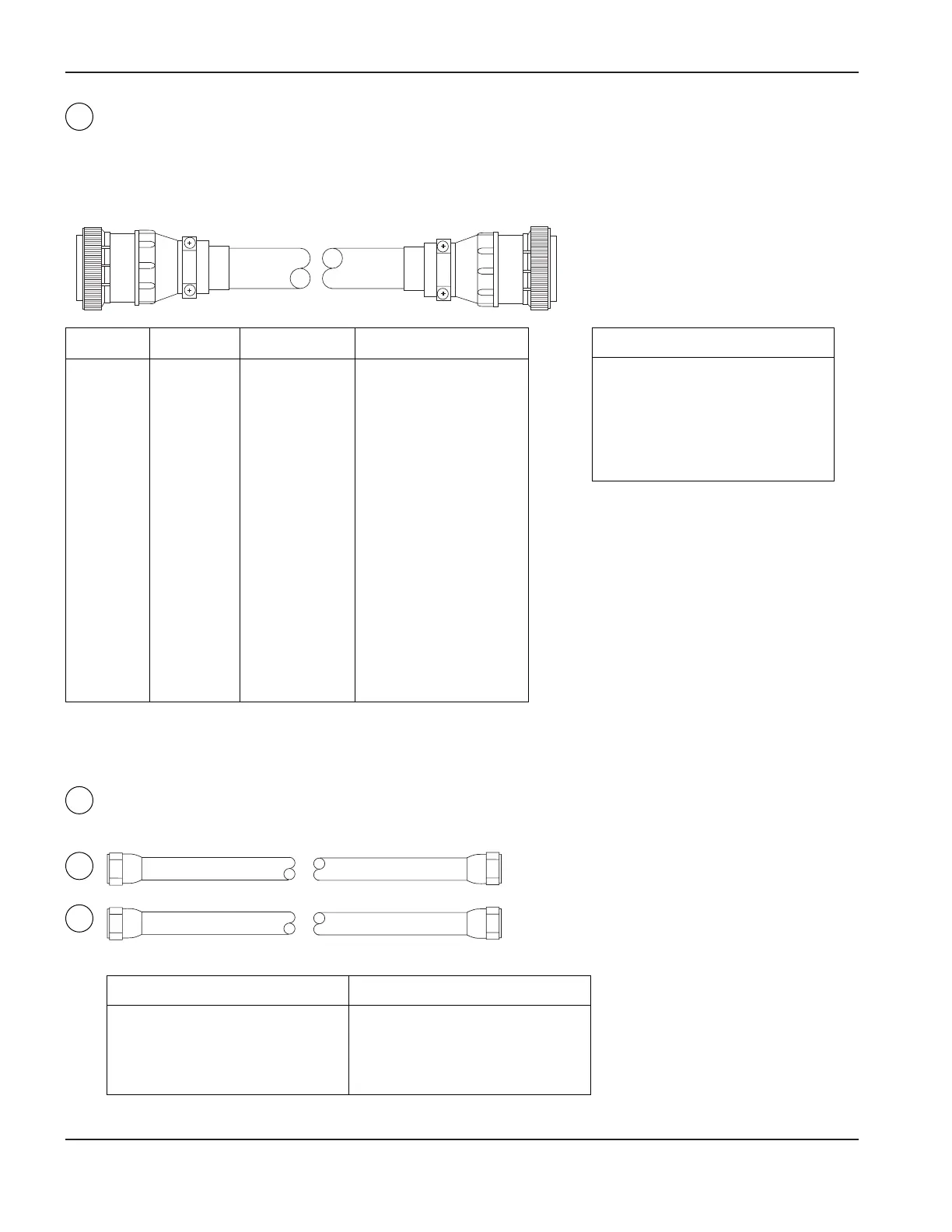

RHF Cable – PS to RHF Console
Connect the end of the cable marked 1X1 to the receptacle on the rear of the power supply labeled RHF 1X1
(Fig. 4-6). Connect the 2X1 end to the RHF Console as shown in Fig. 4-5
Cooling Hoses – PS to RHF Console
4
From 1X1 To 2X1 Color Signal
34 1 Black RHF Door Intrlck
35 4 Red RHF Door Intrlck
36 3 Shld Shield
4 2 Black PS3 / Shield Gas
8 5 White PS3 / Shield Gas
9 6 Shld Cable Shield
23 7 Black SV6 / Shield ON
24 8 Green SV6 / Shield ON
25 11 Shld Shield
10 10 Black SV7 / Cap OFF
11 13 Blue SV7 / Cap OFF
12 14 Shld Shield
1 12 Black T1 / HV Xfrmer
2 15 Yellow T1 / HV Xfrmer
3 16 Shld Shield
5
1X1
GRN
RED
GRN
RED
2X1
Part No. Length
023550 15 ft (4.6 m)
023610 25 ft (7.6 m)
023611 50 ft (15 m)
023612 75 ft (23 m)
023613 100 ft (30.5 m)
023614 150 ft (46 m)
023645 200 ft (62 m)
5a
5b
Part No. Length Part No. Length
028652 10 ft (3 m)
028440 15 ft (4.6 m)
028653 20 ft (6 m)
028441 25 ft (7.6 m)
028442 50 ft (15 m)
028443 75 ft (23 m)
028444 100 ft (30 m)
028445 150 ft (46 m)
028637 200 ft (61 m)
