Hypertherm HySpeed HT2000 User Manual

INSTALLATION
4-10 HySpeed HT2000 Instruction Manual
19

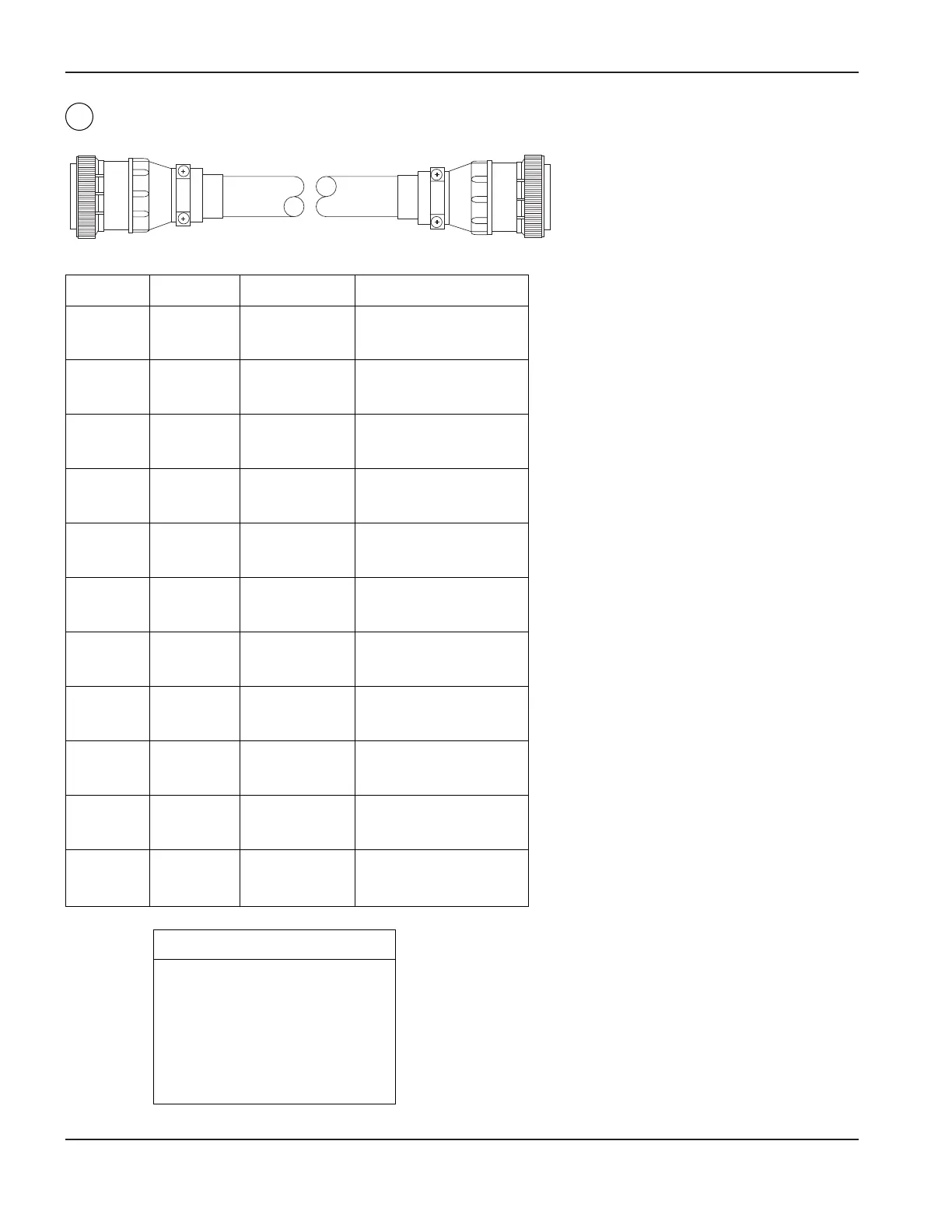

Gas Console Cable – PS to Gas Console
6
1X2 3X1
From 1X2 To 3X1 Color Signal
29 29 Black S3 / MV2 Increase
30 30 Red Spare
34 34 Shld Shield
5 5 Black S3 / MV2 Decrease
6 6 White S3 / MV2 Common
1 1 Shld Shield
2 2 Black LT1 / DC ON
3 3 Green LT1 / DC ON
7 7 Shld Shield
8 8 Black SV1B / O2 / N2
9 9 Blue SV1B / O2 / N2
4 4 Shld Shield
27 27 Red SV1A / O2 / N2
28 28 Brown SV1A / O2 / N2
22 22 Shld Shield
16 16 Black SV2 / O2 / N2
17 17 Yellow SV2 / O2 / N2
10 10 Shld Shield
11 11 Black SV3 / Preflow Trap
12 12 Brown SV3 / Preflow Trap
18 18 Shld Shield
19 19 Black S1 / N2 / O2
20 20 Orange S1 / N2 / O2
13 13 Shld Shield
14 14 Red S2 / Test / Preflow
15 15 White S2 / Test / Common
21 21 Shld Shield
35 35 Red S2 / Test / Operate
36 36 Green S2 / Test / Common
31 31 Shld Shield
32 32 Red PS1&PS2
33 33 Blue PS1&PS2
37 37 Shld Shield
Part No. Length
023549 15 ft (4.5 m)
023605 25 ft (7.5 m)
023757 38 ft (11.5 m)
023606 50 ft (15 m)
023607 75 ft (23 m)
023608 100 ft (30.5 m)
023743 125 ft (38 m)
023609 150 ft (46 m)
