INSTALLATION
4-12 HySpeed HT2000 Instruction Manual
19

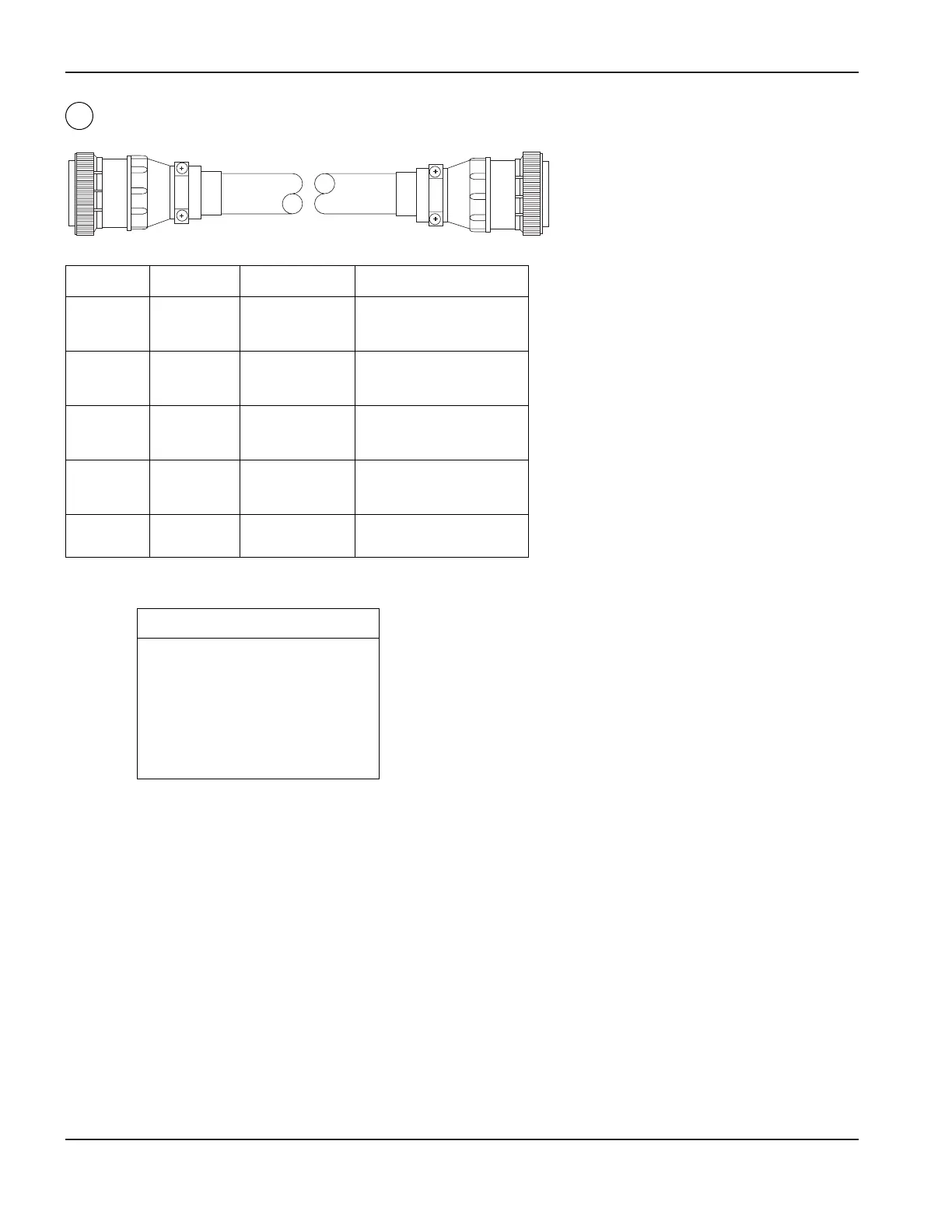

Motor Valve Console Cable – PS to Motor Valve Console
7
1X3 4X1
From 1X3 To 4X1 Color Signal
16 16 Black SV4A/ Cutflow
17 17 Yellow SV4A/ Cutflow
10 10 Shld Shield
23 23 Red SV4B/ Preflow
24 24 Yellow SV4B/ Preflow
25 25 Shld Shield
29 29 Black SV5 / Plasma OFF
30 30 Red SV5 / Plasma OFF
34 34 Shld Shield
11 11 Black MV2 Decrease
12 12 Brown MV2 Decrease
18 18 Shld Shield
14 14 Brown MV2 Motor Increase
21 21 Shld Shield
Part No. Length
023551 15 ft (4.5 m)
023590 25 ft (7.6 m)
023776 35 ft (10.5 m)
023591 50 ft (15 m)
023592 75 ft (23 m)
023593 100 ft (30.5 m)
023594 150 ft (46 m)
023658 200 ft (61 m)
To Next Page
