OPERATION
4-8 powermax 65/85 Operator Manual

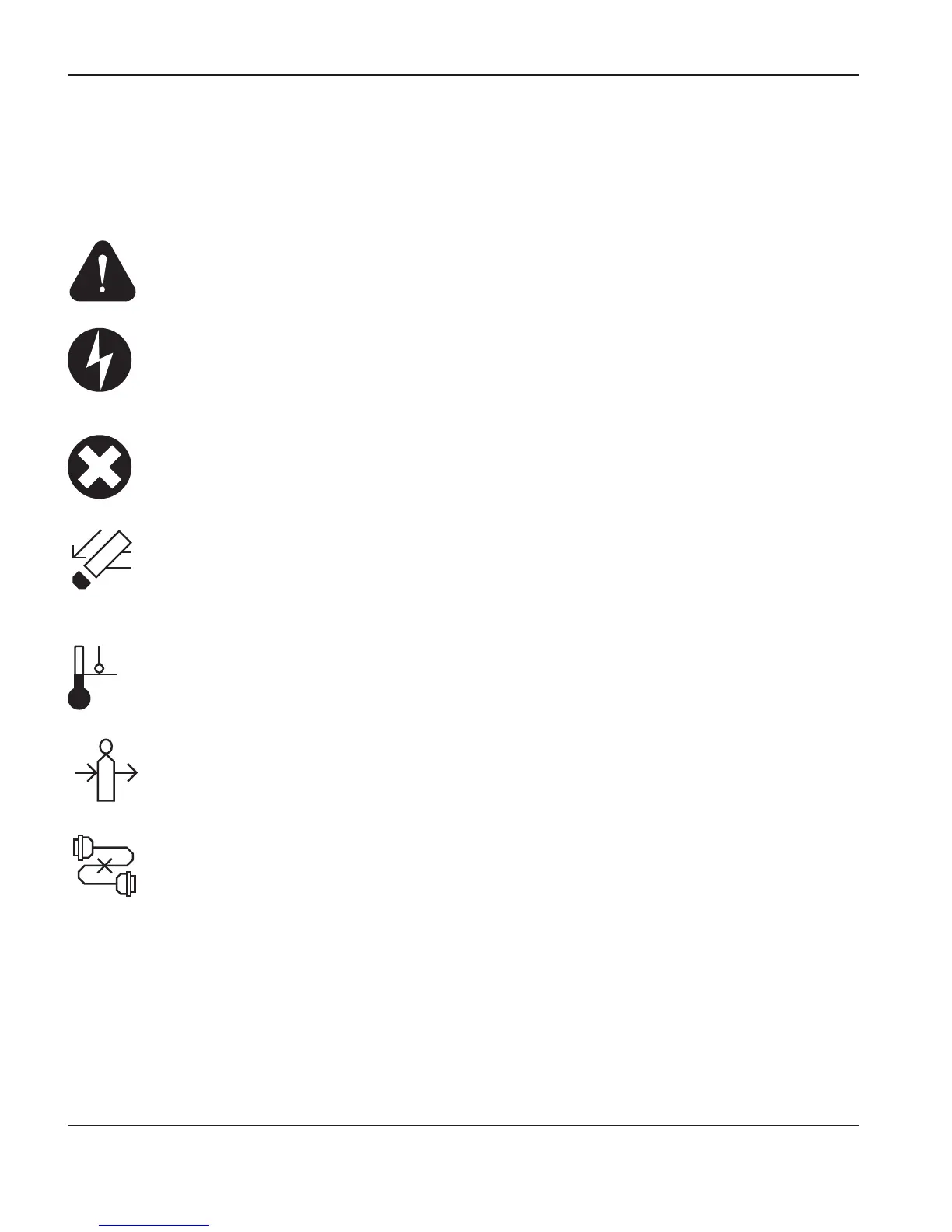

Warning
The system continues to run.
Fault
The system stops cutting. If you can not correct the problem and restart the system,
contact your distributor or Hypertherm Technical Service.
Error
The system requires service. Contact your distributor or Hypertherm Technical Service.
Temperature
Indicates that the temperature of the power supply power module is outside the
acceptable operating range.
Gas
Indicates that the gas is disconnected from the rear of the power supply or there is a
problem with the gas supply.
Internal Serial Communications Interface
Indicates a problem with the SCI communications between the control board and the
DSP board.
Torch cap sensor
Indicates that the consumables are loose, improperly installed, or missing. Turn OFF
the power, properly install the consumables, and turn ON the system again to reset the
power supply.
Fault icons
The fault icons that appear on the left side of the status screen are described below. A fault code
also appears to identify the fault. Refer to “Basic troubleshooting” on page 5-4.
