Choose the machine torch consumables
Powermax systems with the Duramax M65, M85, M65m, or M85m are shipped with a complete
set of consumables. Hypertherm also includes spare electrodes and nozzles. In addition, an ohmic-
sensing retaining cap is available for use with shielded consumables. With shielded consumables,
the torch tip may touch the metal when cutting. With unshielded consumables, you must keep
the torch a small distance, about .08 inch (2 mm), away from the metal. Unshielded consumables
generally have a shorter life than shielded consumables.
Both styles of machine torches use the same consumables.

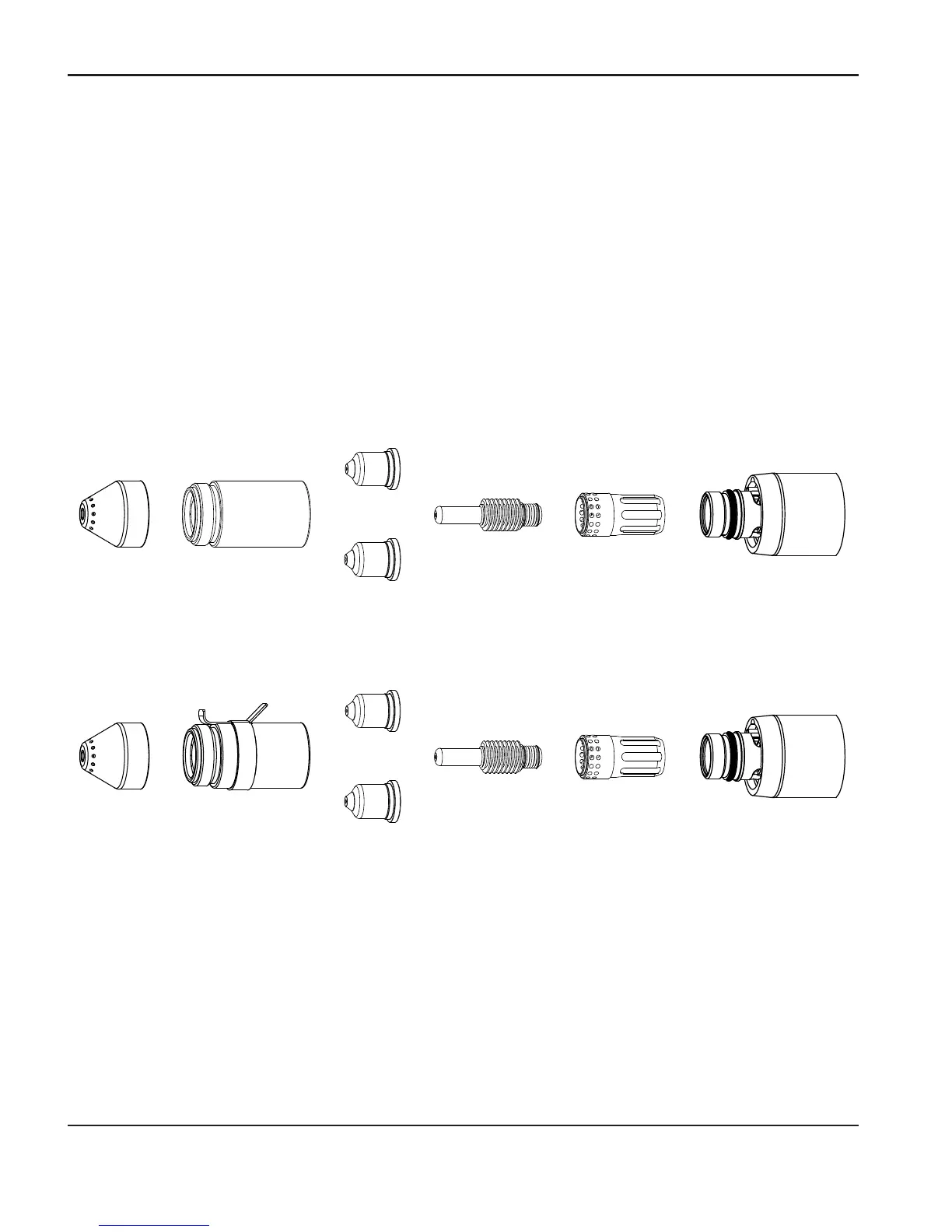

Machine torch consumables
220817
Shield
220817
Shield
220854
Retaining cap
220941
Nozzle
220941
Nozzle
220819
Nozzle
220819
Nozzle
220857
Swirl ring
220857
Swirl ring
220842
Electrode
220842
Electrode
220953
Ohmic-sensing
retaining cap
Mechanized shielded consumables: Powermax65
Mechanized shielded with ohmic consumables: Powermax65
