Hypertherm Powermax 85 Operator's Manual

PARTS
powermax 65/85 Operator Manual 6-9

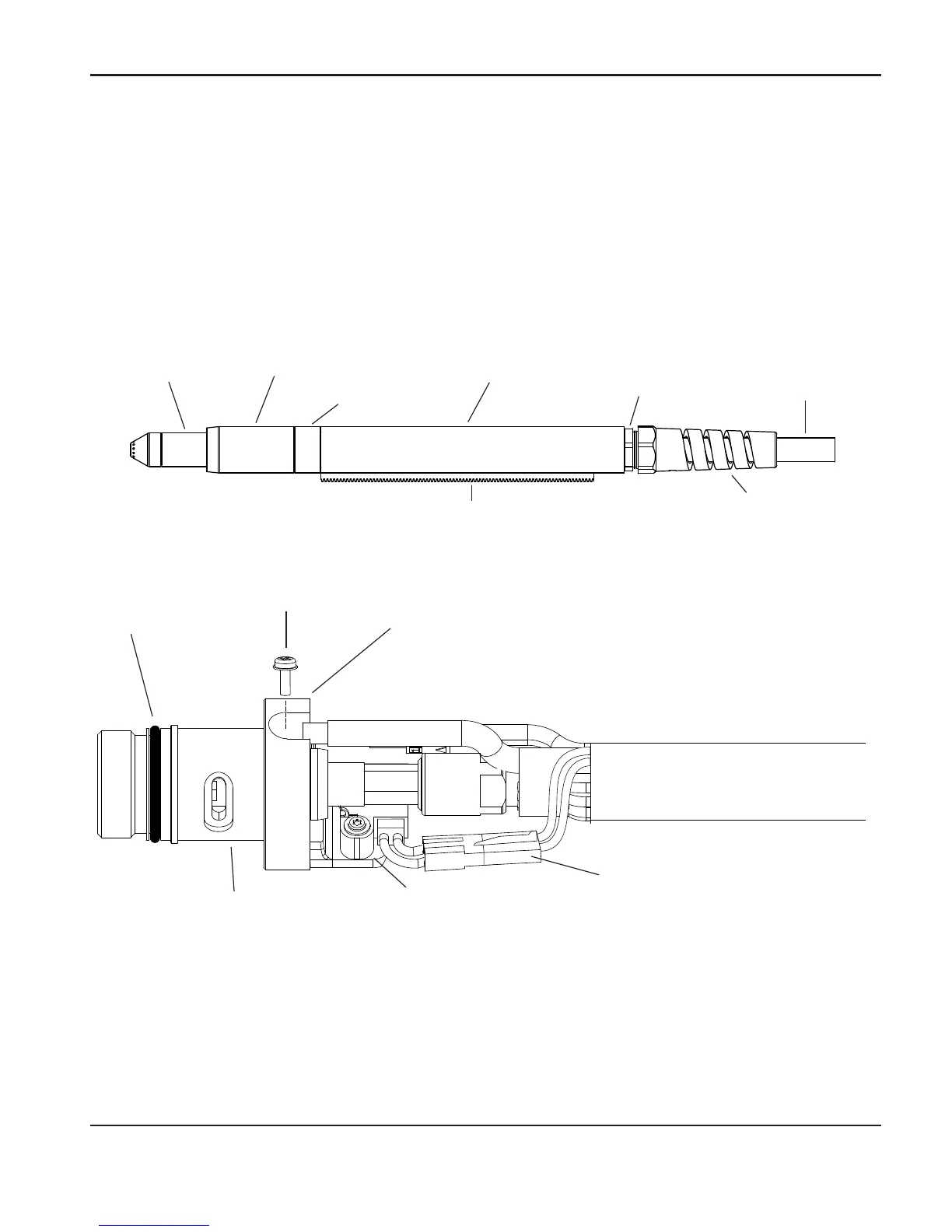

Machine torch replacement parts
M65/M85/M65m/M85m
ote:N This illustration shows the M65/M85 machine torch. The M65m and M85m mini-
machine torches do not have a positioning sleeve and gear rack.
Front mounting ring
Pilot wire
terminal screw
Cap-sensor switch
Torch head
O-ring
Consumables
Mounting
sleeve
Coupler
Gear rack (32 pitch)
Strain relief body
Strain relief nut
Torch lead
Positioning sleeve
Wire connector for
cap-sensor switch

Hypertherm Powermax 85 Specifications

General

Gas Supply	Clean, dry, oil-free air or nitrogen
Cooling Method	Fan-cooled
Input Voltage	200-600V, 3-phase
Current Output	25-85 A
Duty Cycle	60% @ 85 A
Recommended Gas Inlet Flow Rate/Pressure	6.7 scfm @ 85 psi
Cutting Capacity (Recommended)	1" (25 mm)
Gas Type	Air/Nitrogen
