Hypertherm Powermax 85 Operator's Manual

OPERATION
4-12 powermax 65/85 Operator Manual

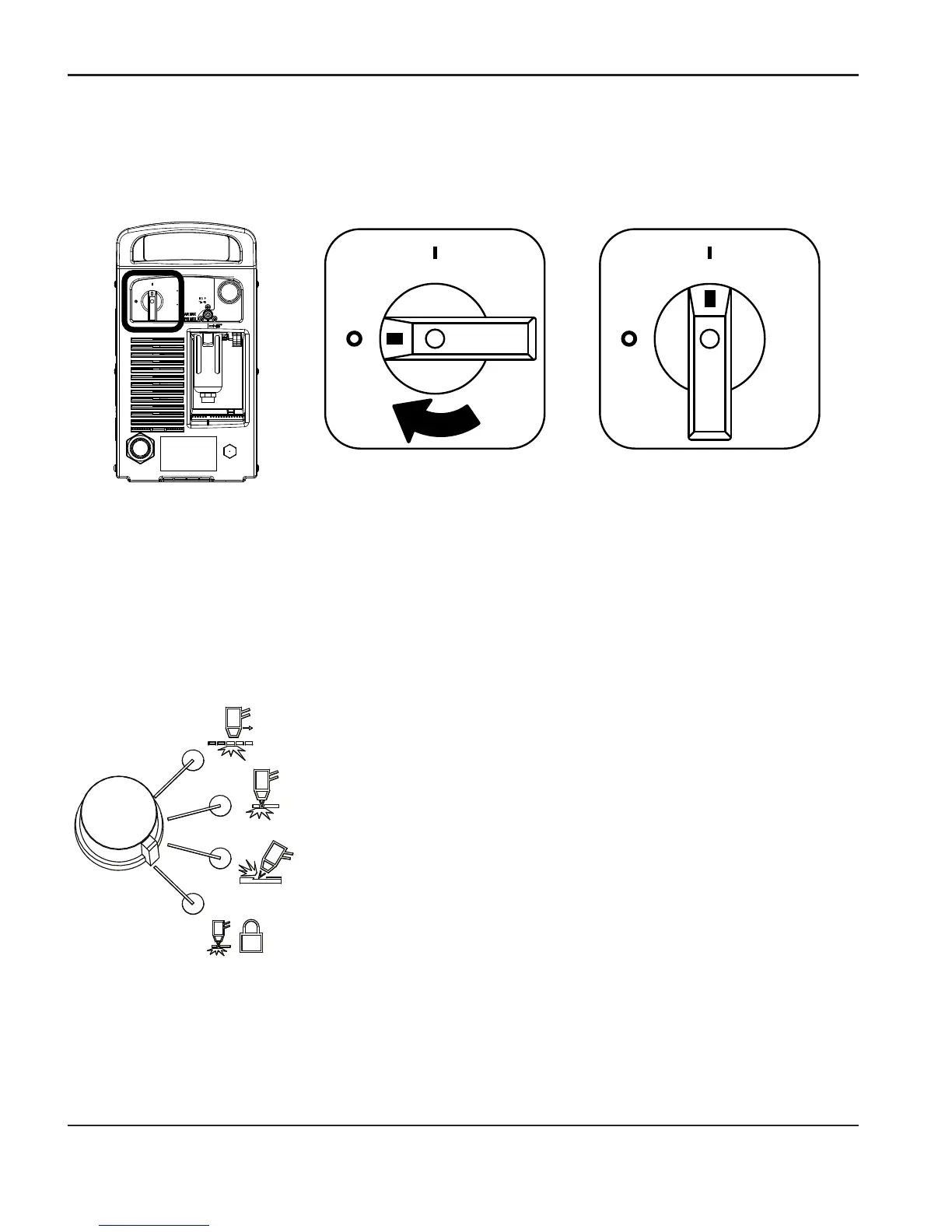

Set the operating mode switch
Use the operating mode switch to select the type of work you want to perform.
In automatic gas mode, Smart Sense™ technology automatically adjusts the gas pressure
according to the selected cutting mode and torch lead length for optimum cutting.
For cutting expanded metal, grates, metal containing holes, or any
job that requires a continuous pilot arc. Using this mode to cut
standard metal plate reduces consumable life.
For cutting or piercing metal. This is the standard setting for normal
drag-cutting.
For gouging metal. (Note: Using this mode while cutting results in
poor cut quality.)
Locks the torch in the ON (fire) position. With this option selected,
press the trigger to fire the torch. You can then release the trigger
while continuing to cut. Press the trigger again to stop the arc. The
arc also stops if you lose transfer.
Turn ON the system
Set the ON/OFF switch to the ON (I) position.
Off
On

Hypertherm Powermax 85 Specifications

General

Gas Supply	Clean, dry, oil-free air or nitrogen
Cooling Method	Fan-cooled
Input Voltage	200-600V, 3-phase
Current Output	25-85 A
Duty Cycle	60% @ 85 A
Recommended Gas Inlet Flow Rate/Pressure	6.7 scfm @ 85 psi
Cutting Capacity (Recommended)	1" (25 mm)
Gas Type	Air/Nitrogen
