POWER SUPPLY SETUP
powermax 65/85 Operator Manual 2-7
aution:C When using the Powermax65 CSA model power supply (CE
model is 3-phase only) with a 1-phase power source, replace
the supplied power cord with an 8 AWG (10 mm
2
) 3-wire
power cord. The power cord must be connected by a licensed
electrician.
Single-phase power cord (not for CE model)
To operate your Powermax65 on 1-phase power, you will need to install an appropriate power
cord. Refer to “Single-phase power cord installation” on page 2-10 for instructions.
Three-phase power cord — plug installation
The Powermax65 power supplies are shipped with an 8 AWG 4-wire power cord on CSA models.
A 2.5 mm
2
, 4-wire HAR power cord is provided on CE models. To operate the Powermax65, use a
plug that meets national and local electrical codes. The plug must be connected to the power cord
by a licensed electrician.
The procedure is similar to installing a single-phase power cord as shown in the section “Single-

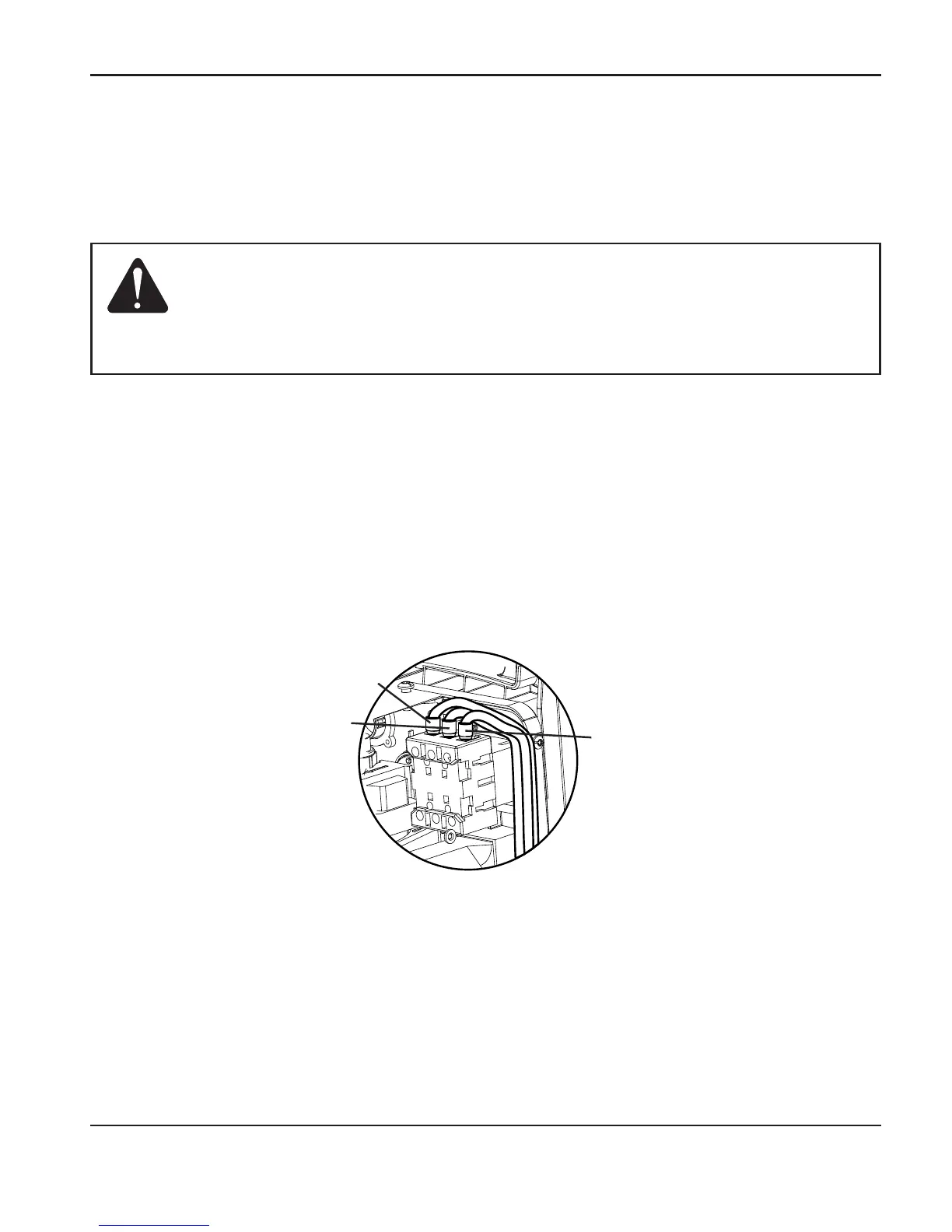

phase power cord installation” on page 2-10. The figure below shows the additional wire connected to
L3.
L1
L3
L2
